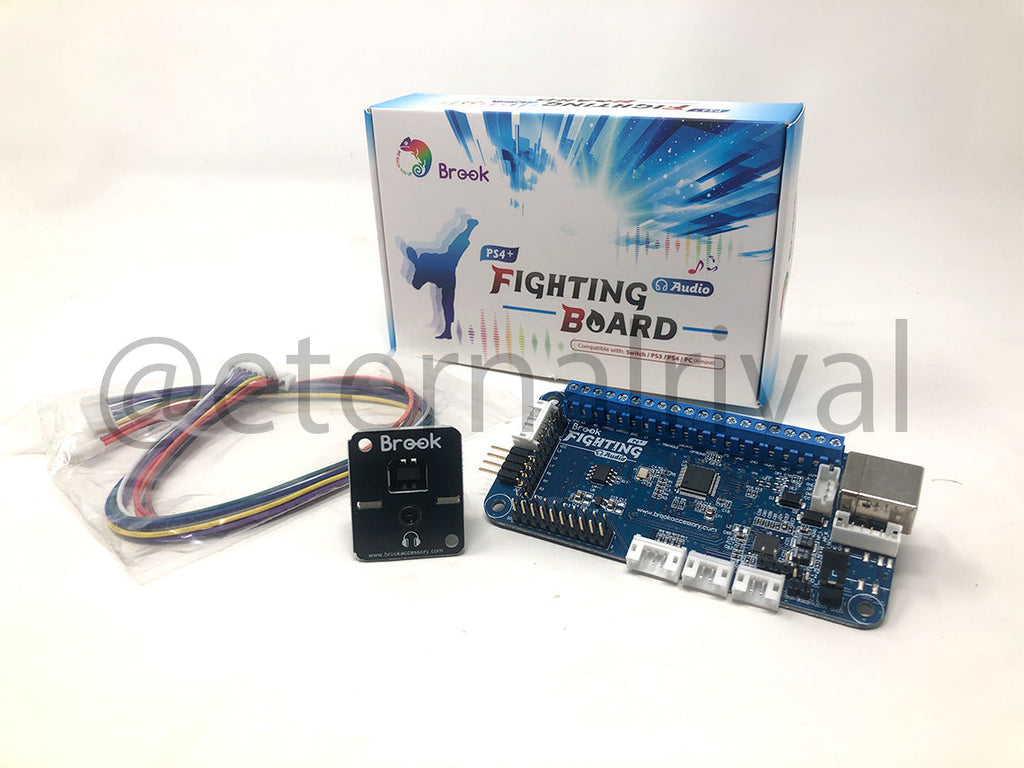

*For Dual Layout you will need the 5pin joystick wire (not included, usually comes with your joystick) to connect to the blue screw terminal
-Brook official fightstick cable

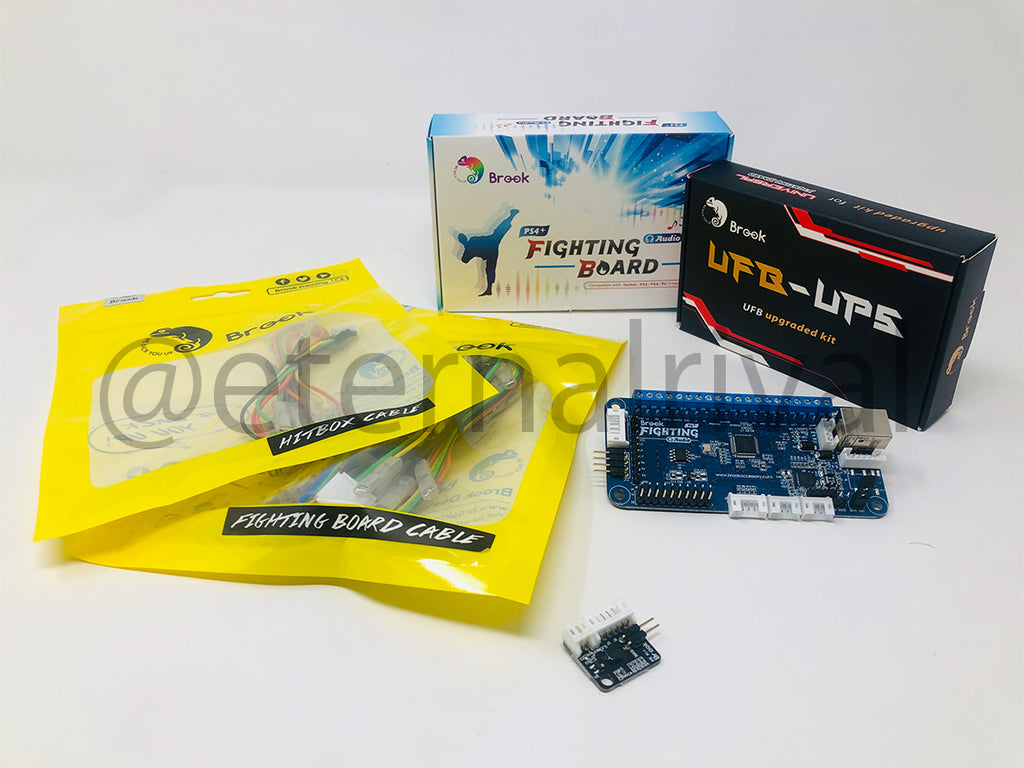

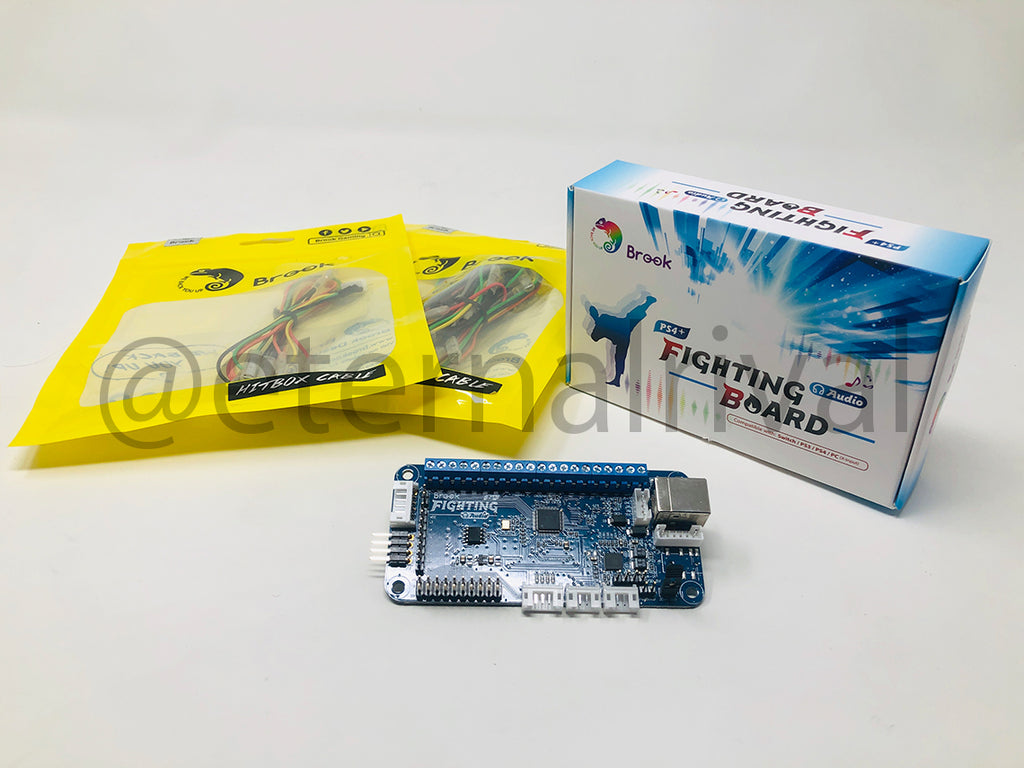

-Brook Official Stickless Cable
-Brook PS4 Audio+

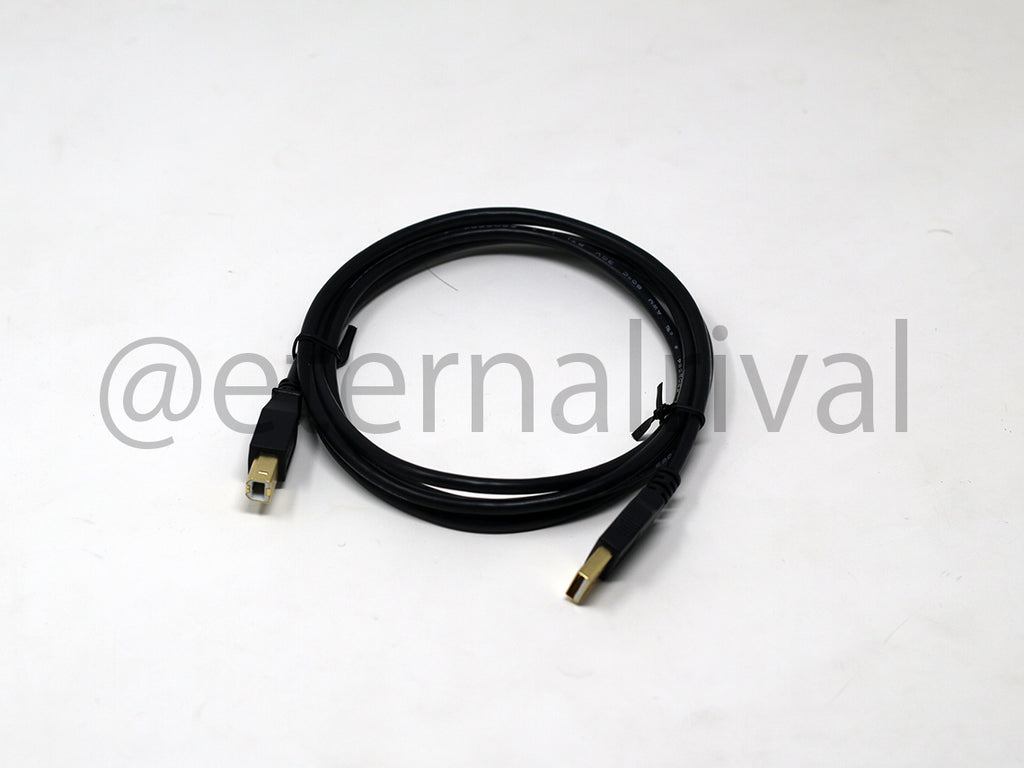

-USB CONSOLE CABLE 6ft
-Screw Mounts for USB Breakout (Passthrough included with -PCB no inner USB cables needed)

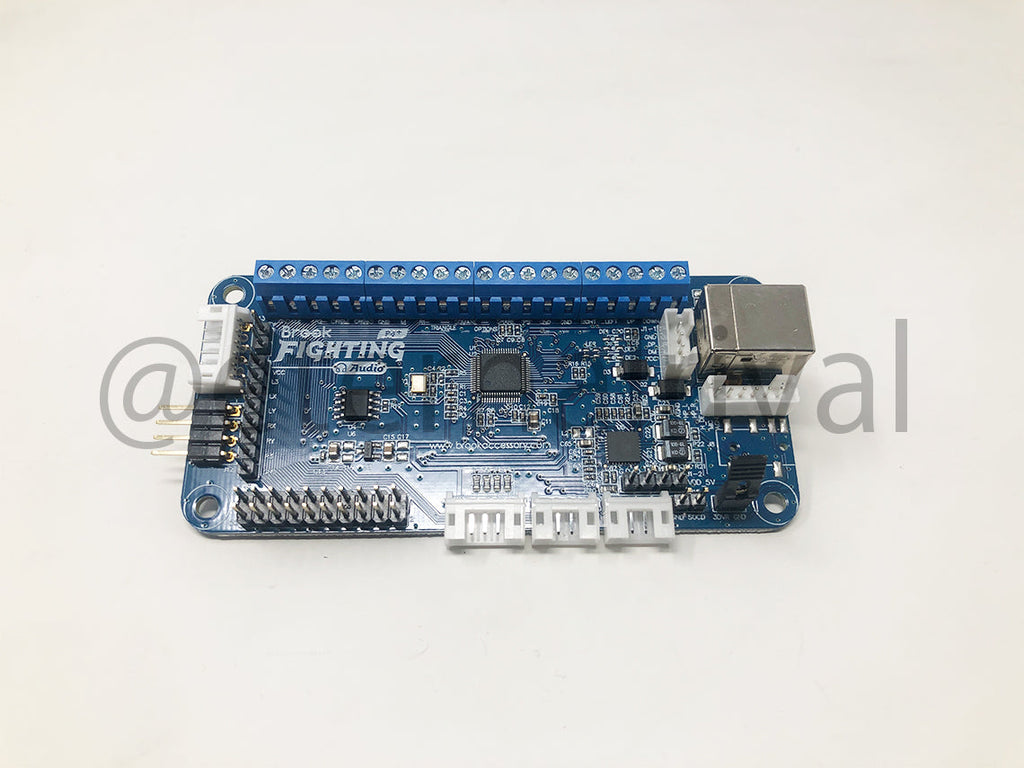

The Brook Fighting Board PCB supports PS3 and PS4 arcade, sticks.
Compatible with: PS4 / PS3 / PC / SWITCH
Support play PS4 Games on PS5!
Support Brook UFB-UP5!
20220112 firmware update (V1.9)
- Support Brook UFB-UP5

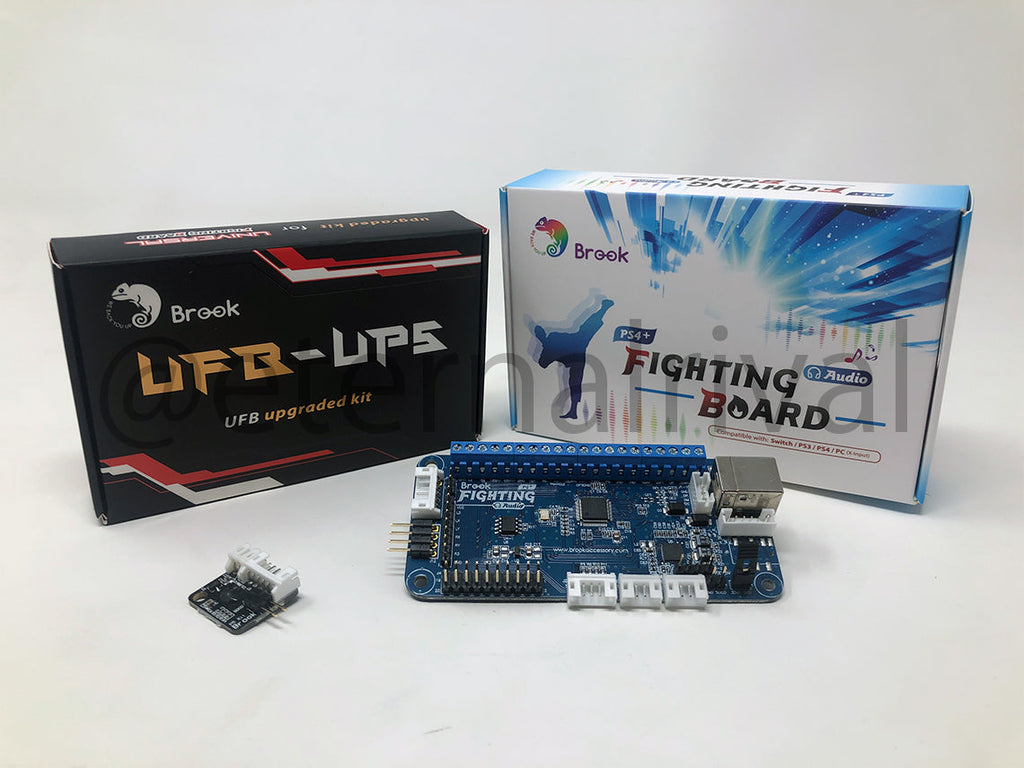

PS4+Audio Fighting Board is supported by UFB-UP5 to play PS5 games on it!
- Audio Support (PS4)
- Two Analog Sticks Support
- No 8 minutes timeout issue (PS4)
- X-Input Support (PC)
- Console Auto Detection
Support two SOCD modes
Left + Right=Neutral、”Up priority” in all Up + Down = Up
Second-Input Priority,Left + Right=Right、Right + Left = Left
- Turbo Support
Screw terminal block fore easy connections
- Firmware Upgradable via USB
*Brook provides two kinds of SOCD cleaner mode which is conform with international competition standards, such as EVO, CPT etc.
Even though we still suggest you to follow and check the latest rules of every competition. If you have any problems, please feel free to contact us.
