Eternal Rival - High Tier Kailh Choc Enclosure - Add Art in Options

$ 71.39 USD

What is this?

This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.

What is WASD Fightstick?

WASD fightstick replaces the joystick with actual keyboard buttons in the formation of WASD.

It’s like building a computer.

All the components are sold separately. Depending on how much you want to  spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.

What is made out of?

The enclosure is made out of cast acrylic (plastic).

The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.

Is it easy to build?

Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.

Why do I need this?

  • DIY. Fun to build.
  • Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
  • Customizable
  • Add art!
  • Play arcade games.

Specs

Width - 15.25in
Length - 8in
Outer height - 2.25in - 2.5in
Weight - 3-4 lbs - nothing inside - can go up to 6lbs - with everything inside plus extra weight panels

Side Walls -2 Layer

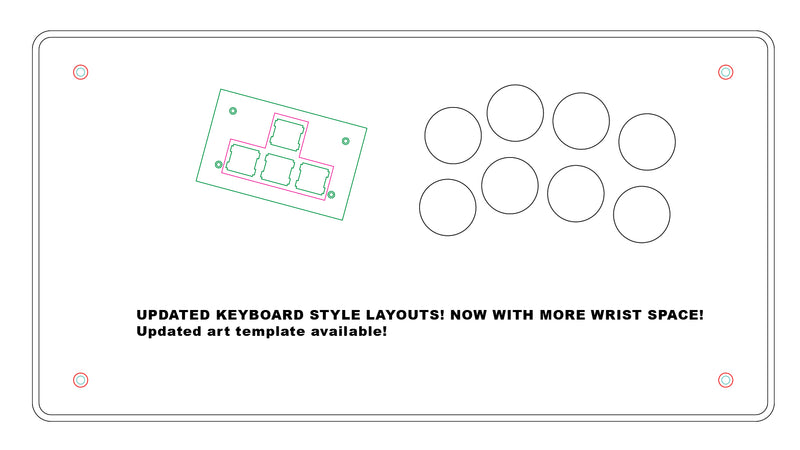

Keyboard Style - Top - 2 layers. Bottom Panels - 2 layers

WASD PCB

The Eternal Rival PCB allows to bring the keyboard to your fightstick. The pcb has a joystick connector that can be easily plugged into the Brook 20 Pin harness, or standalone joystick connector. The pcb also allows hot swap switches, so there’s no need to solder, and if you don’t like the switches you are using, you can easily swap them out.

The WASD PCB is also mounted to the enclosure!

Case options

What is Inner and outer color panels?

Here is an example click here

What is feet with flush mount?

The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)

Extra 30mm Up button cut?

The extra 30mm up button will under LK similar to OG Stickless layout.

Component Wiring and PCB Kits – (WASD)

  • Kits are available on our store that has all the inner components on one product listing.  Can find it here.THE KIT DOES NOT COME WITH BUTTONS AND Keyboard Switches
  • For Buttons here
  • For Kailh Low profile Keyboard Switches here

Needs Kailh Low Profile Switches

  • Need 4 Kailh Low profile switches here
  • 4 Low Profile Kailh key Caps here

Needs main action buttons (WASD)

  • The main buttons fit 30mm buttons. Total 8.
  • Screw-on and snap in are compatible
  • Does not fit Euro/Happ style buttons


Needs AUX Buttons (side buttons)

  • The AUX/UTILITY buttons fit 24mm buttons. Total 6.
  • Screw-on and snap in are compatible
  • Does not fit Euro/Happ style buttons

Needs Brook PCB (chip/brain)

  • The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
  • Enclosures fit any Brook Fighting Board PCB
  • Any PCB that is not a Brook will need adhesive stands
  • Mounting holes and hardware are included for free (can be upgraded).

Need Passthrough

  • Passthrough device is located on the front panel where you disconnect the wire from the case. It’s mounted on the enclosure
  • Our cases can fit any of these 2 passthroughs
    1. USB C Adafruit
    2. Neutrik

Needs Wiring (WASD)

  • 20pin wire connector. Connects to the pcb --- which connects to the main action buttons, share, home, start and the joystick. Ground wire must be connected to each connector on the button (does not matter which prong).
  • L3/R3/TK wire connector. Connects to the analog stick buttons and the the touch key.
  • Short Printer cable. Connects to the PCB and Passthrough
  • Long (Printer or USB C to USB A) cable . Connects to Passthrough to console.

How do I wire this together?

Here is a diagram. Click here

Optional Add-On

LEGAL FOR ART PRINT

If you knowingly violate copyright by printing copyrighted photos for personal use, you are liable to pay damages to the copyright owner. If the image is registered with the copyright office you may be required to pay statutory damages and all attorney fees. By ordering from Eternal Rival and accepting our Terms of Service you accept responsibility for ensuring you have proper permission and license to reproduce the image. Sometimes it is as easy as simply asking! Many photo studios, or artist will hand you a release to copy the prints you buy if you ask for it, and if you purchase hi-res files from your photographer or artist they will likely also include a release. Some places may want to charge extra for this or they may not allow it at all, preferring to have you order all copies and products directly through them.

We value your privacy we now do not share on our social accounts or keep or archive or reproduce. If it is for personal use, it is best to keep it as personal use. Share at your discretion. In good faith we trust you the customer to have approve permission, or licensed artwork once uploaded as well as following copyright and infringement laws. We also have the right to deny any print if we feel it violates anyone’s rights.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
H
Harold Williams
Hand Pain Issue Solved!

I'm a 43 year old Street Fighter V player that has been suffering from hand/joint issues on a standard Hitbox using both Sanwas and Gamer Finger buttons. I later made the switch to an AFS where I think the all metal top just made things worse. I was to the point that a 3 hour session was difficult to get to.

I took 2 weeks off playing while I waited for my Eternal Rival KAILH CHOC to arrive. Over the holiday break I was able to play/stream for multiple 7+ hours with now ZERO pain. Light and easy on the hands was what I've needed this whole time. The key directions are way easier on my left hand than standard buttons for sure.
