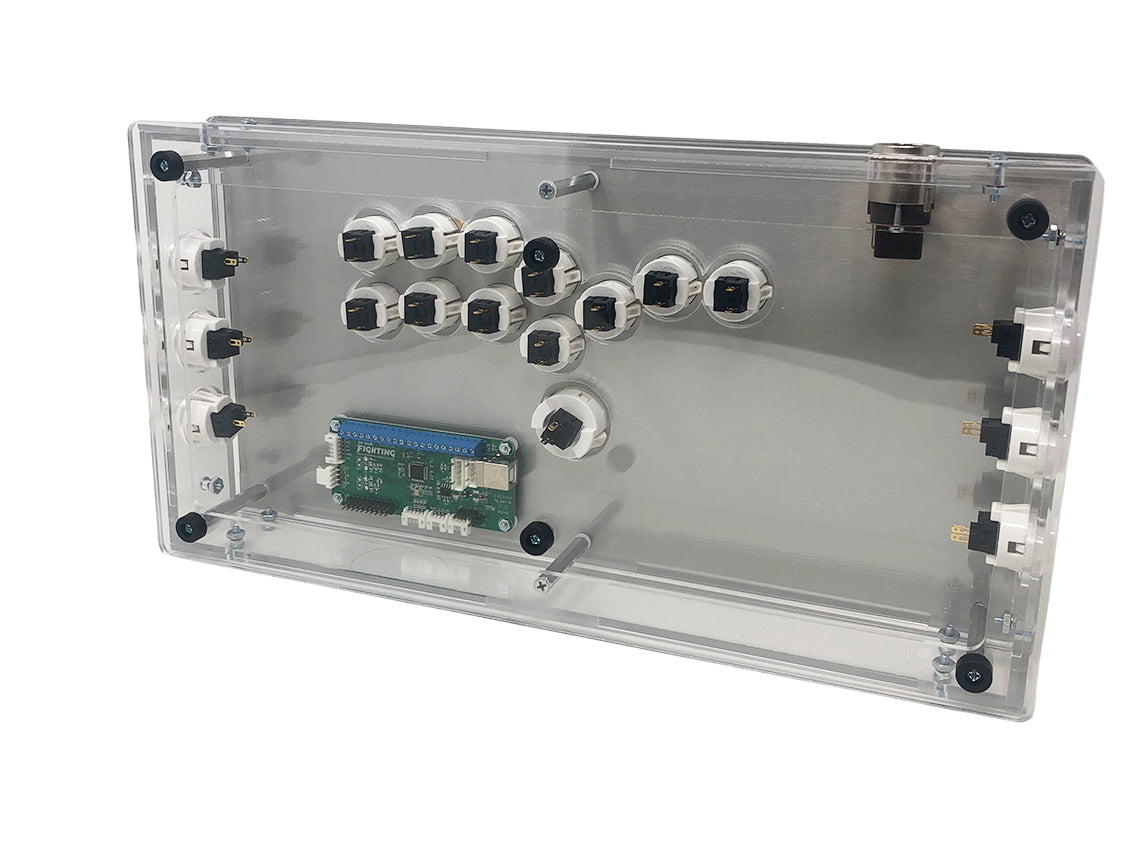

Eternal Rival - Aegis Stickless Enclosure- Anodized Aluminum Top Laser Engrave Case

****DISCLAIMER****

Do to the nature of the aluminum panel, placing snap-in buttons may break the tabs on brittle style snap-in buttons (such as METALLIC sanwa/quanba snap in buttons), The aluminum may also shave some plastic off the tabs and body. You will need to use good force to push in the snapin buttons as well. But once the button is in the slot it will be secured tightly. For removal I recommend the snap-out device.

Highly Recommend - Screw on style Buttons!

About

No buttons, no pcb, no wires, no joystick included.

Common Case Questions

Outer Panel
Is what you see on the outside.

Inner Panel
Is what you see when you open it up the trim around the top and bottom panels.

Add panel weight?
Add extra 1-2lbs but adding an extra top and bottom middle panel. It makes the case heavier and taller. A panel is about 2-3mm thick

Custom Layout
Please contact us to see if it's possible. Custom Cuts are free.

What's Needed

This is a list that we recommend. There's different styles and ways to wire the pcb to the buttons and joystick. The recommended list is the EASIEST way.

Buttons

Original Stickless

x1 30mm - Action (Top)
x11 24mm - Action (Top)
x6 24mm - Utility (Side)

Kit with board and cables

Full cable kit with Brook Board - Just need buttons

• Brook Board and cables with Neutrik Kit
• Brook Board and cables with Adafruit USB C Kit

List of Items needed

Brook Board

• PS4+
• ZERO PI (PC)
• XB
• UNIVERSAL
• UNIVERSAL + UP5
• Brook Wireless
• Brook Audio

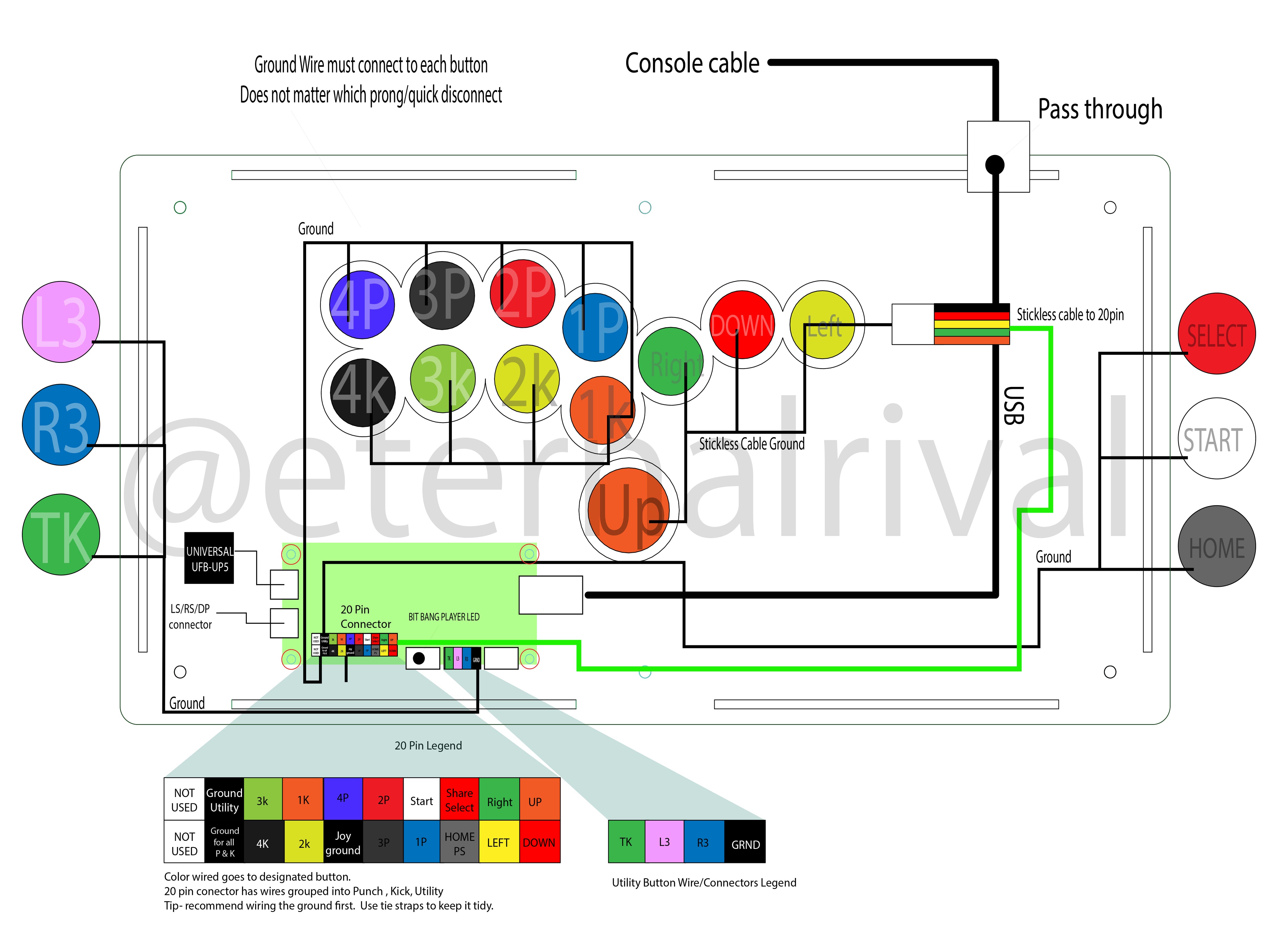

Wiring

• 20pin Cable Connector
• L3/R3/TK connector
• Short printer cable (brook to passthrough)

Long cable to console

• USB A/B cable - enclosure to console ( Need Neutrik USB A/B passthrough)
• USB C - enclosure to console (Need adafruit USB C passthrough)

Passthrough

• Adafruit USB C
• Neutrik USB A/B
• Both are not needed for Brook Wireless and Brook Audio

Add-On - If needed

• Neoprene pad
• Bit Bang Gaming Player LED

What's Included

1. everything needed to build the enclosure

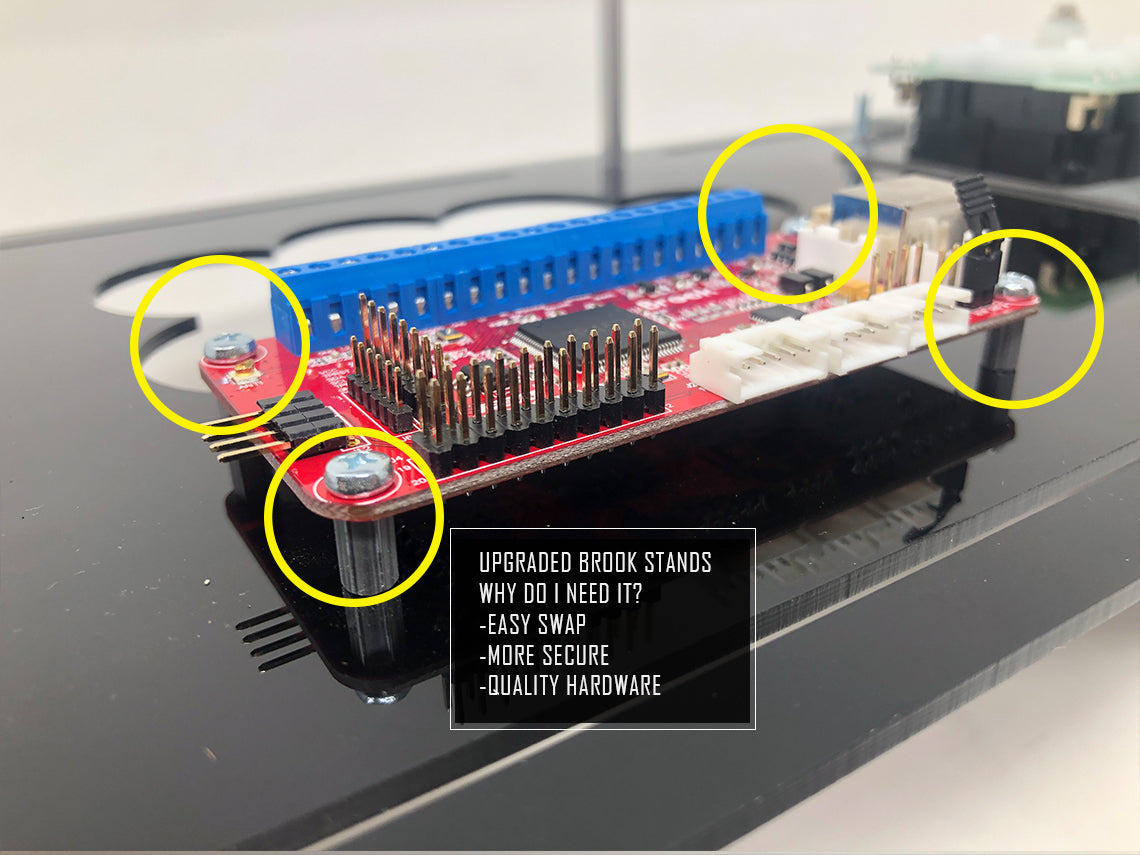

2. PCB stands included (not included for Mid tier enclosure)

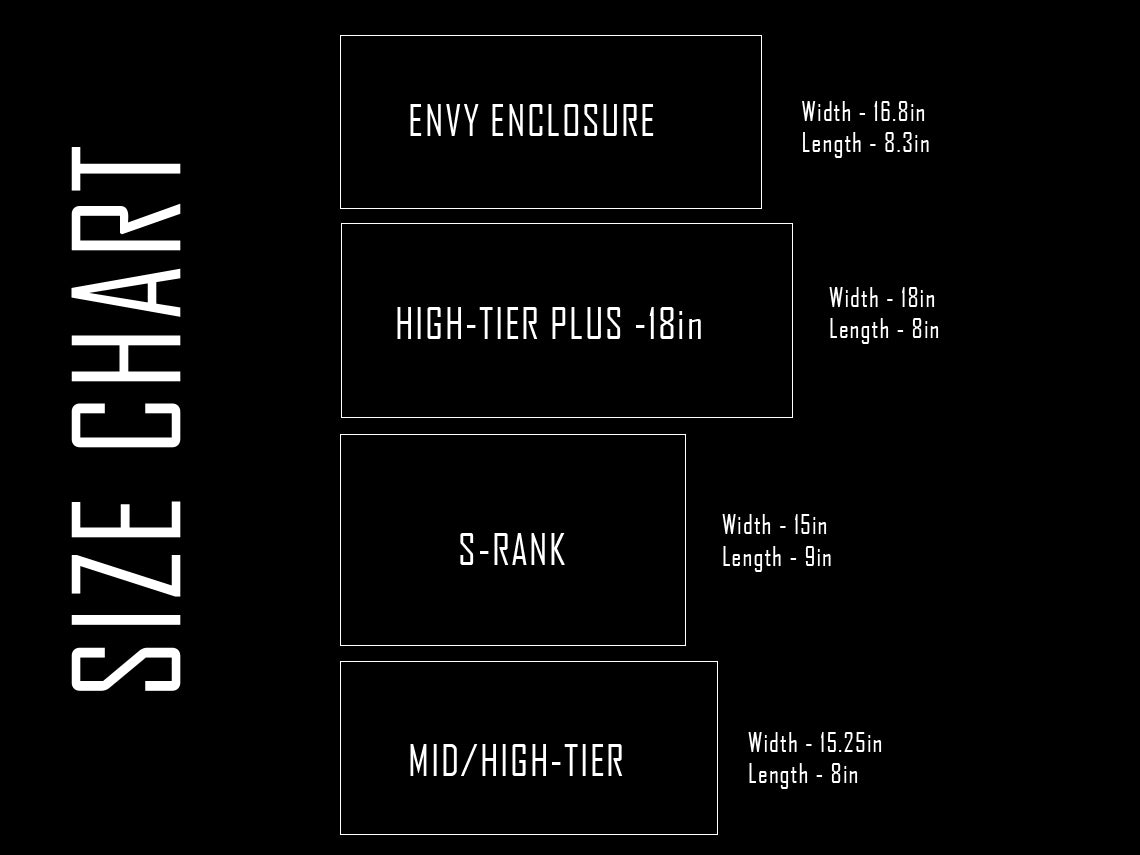

Specs

Width - 15.25in
length - 8in
height - 2.25in - 2.5in
Weight - 3-4 lbs - nothing inside - can go up to 6lbs - with everything inside plus extra weight panels

Side Walls -2 Layer
Fightstick & Stickless - Top and bottom panels - 2 layers can be upgraded to 3
Keyboard Style - Top - 2 layers. Bottom Panels - 2 layers can be upgraded to 3
