Clear Enclosure
Sold as fully assembled - will take 1-4 days to ship out
*USB C cable and switch puller are not included*
PLEASE READ (Gp2040-ce.info) for documentation on the firmware.
Designed and Hand Made is the USA
NOW WITH USB PASSTHROUGH! You can now plug in a Mayflash Magicboots v1.1, Mayflash Ultimate s, Or Wingman FGC Directly to the controller to authenticate as a legacy fightstick to play PS5 Fighting games!! Will have 8min Timeout without these converters.
PS3/PS4/PS5*/Xbox360/OG Xbox/XBOX ONE Series S,X**/PC/Switch/Android/Sega Genesis-Megadrive mini/NEOGEO mini/PC Engine-Turbografix 16 mini/EGRET mini II/ASTROCITY mini/Playstation Classic Support!
*PS5 requires a Mayflash magicboots PS4 v1.1 in usb passthrough mode
**XBOX One requires a Mayflash magicboots XONE in usb passthrough mode
Check Gp2040-ce.info for Documentation and LED Shortcuts!!
**All Controllers will have new Switch Plate Design so no more popping out of switches. Including orders that have not been fulfilled. **
Features-
Embedded Pico Running GP2040-CE Firmware - PCB Designed By Arcadepcbs on etsy and manufactured by JLCPCB
USB C - Cable not included
USB Passthrough For PS5 Fighting Game Support. Must Enable in Webconfig. D+ pin is 23
LTC Crystal Similar Reds MX Switches
Hotswap Sockets
Clear Mx Arcade Caps By SinoArcade
Dual Per Key RGB Buttons - All MX profile switches now compatible With RGB regardless if they have Clear Housing or RGB slot
RGB Player LED *X-input Only*
2.42" White OLED
SOCD 3 Way Slider
Directional DP/LS/RS Slider
Tournament Lockout for Option Buttons
Microswitch Option Buttons With Caps
Reset and Bootsel Buttons On Bottom
Sandwich Acrylic Case
Countersunk Top and Bottom Screws
PLED LED Light Pipes
Clear Rubber Bumpers
LxWxH 320x190x20.7mm - 12.59x7.48x0.81in
Firmware Update - https://github.com/troytroy22/GP2040-CE-ArcadePCBs/releases
To Enter Bootloader mode - HOLD START+SELECT+UP While plugging in the Board. Or press the BOOTSEL button on the Board while plugging into the computer.
Upgrade Joystick Mounting holes? Includes Fanta K lever Bracket Holes (horizontal) and JLF (Vertical Holes) with 35mm joystick hole:
GOOD

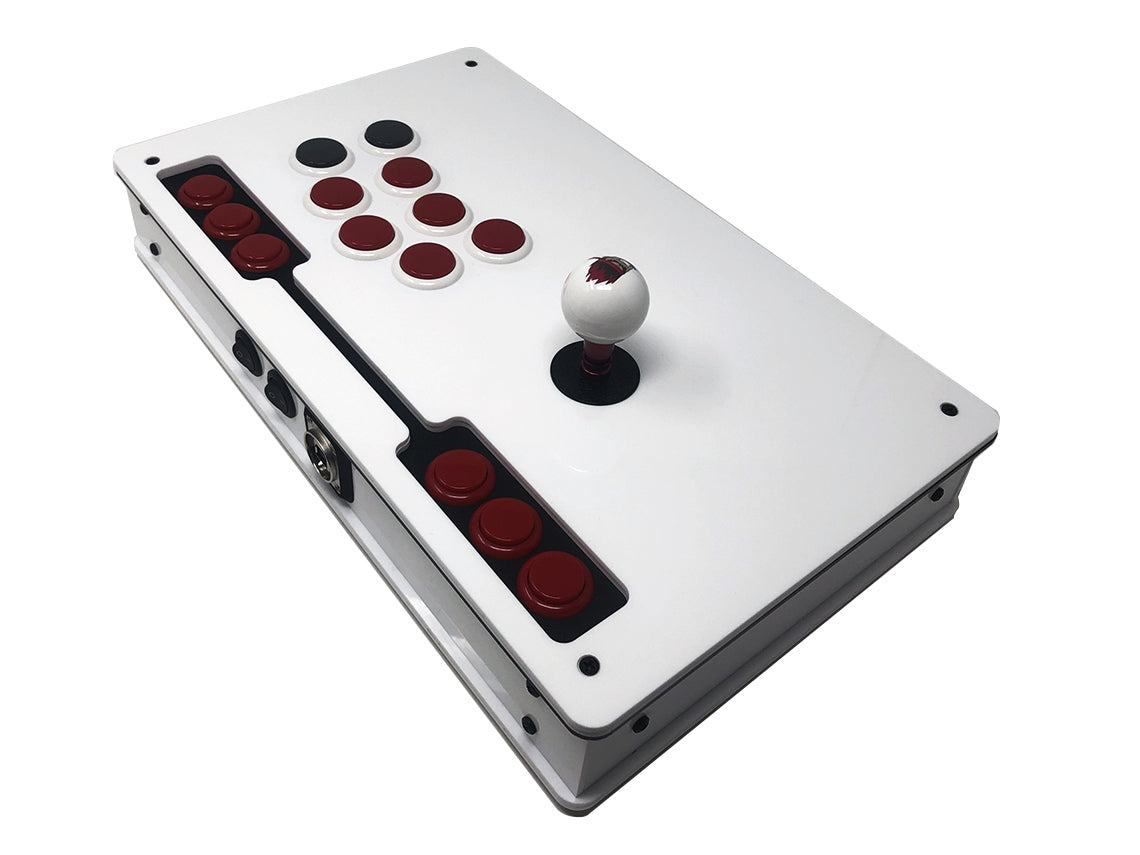

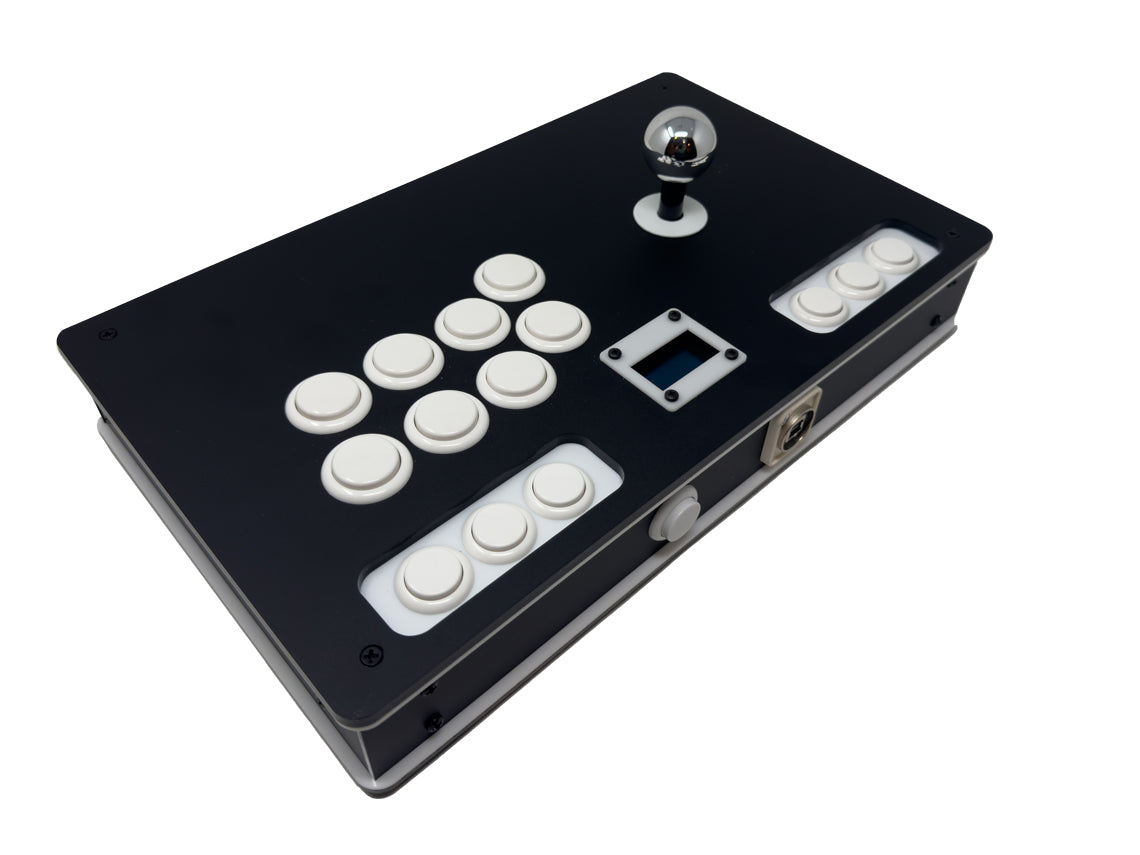

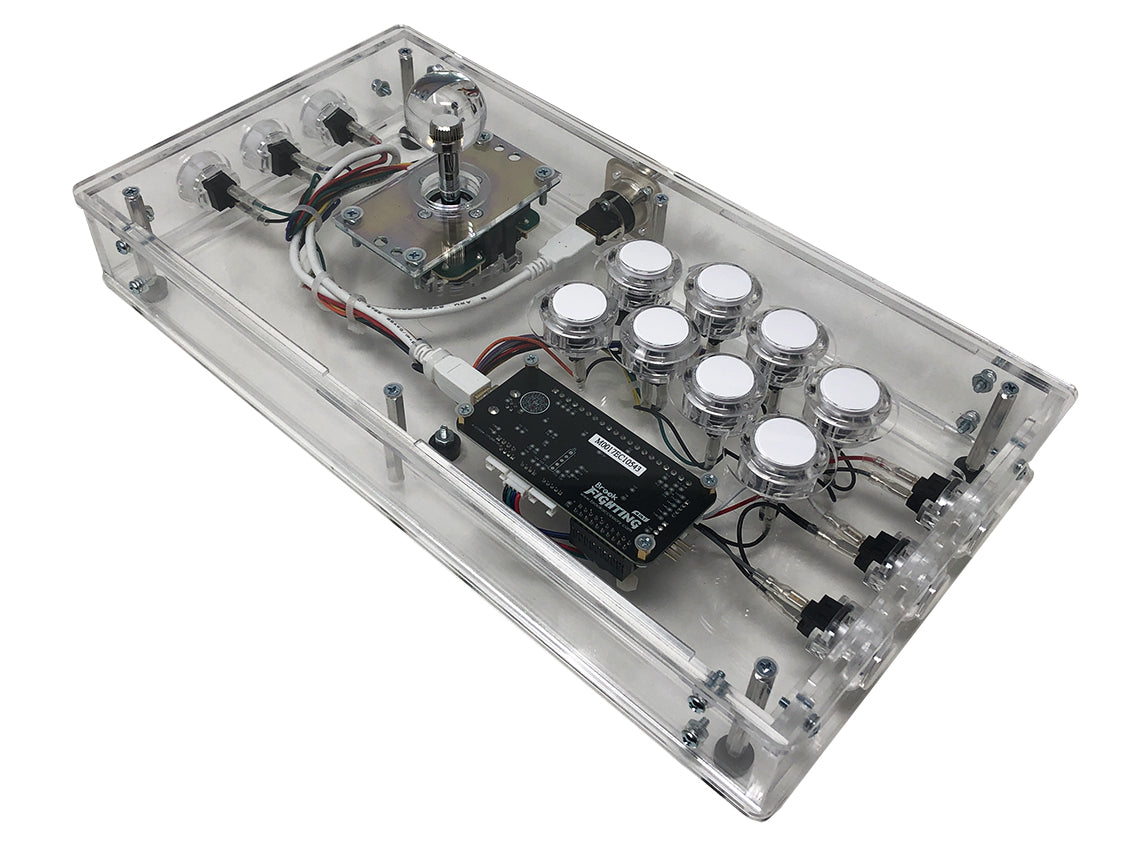

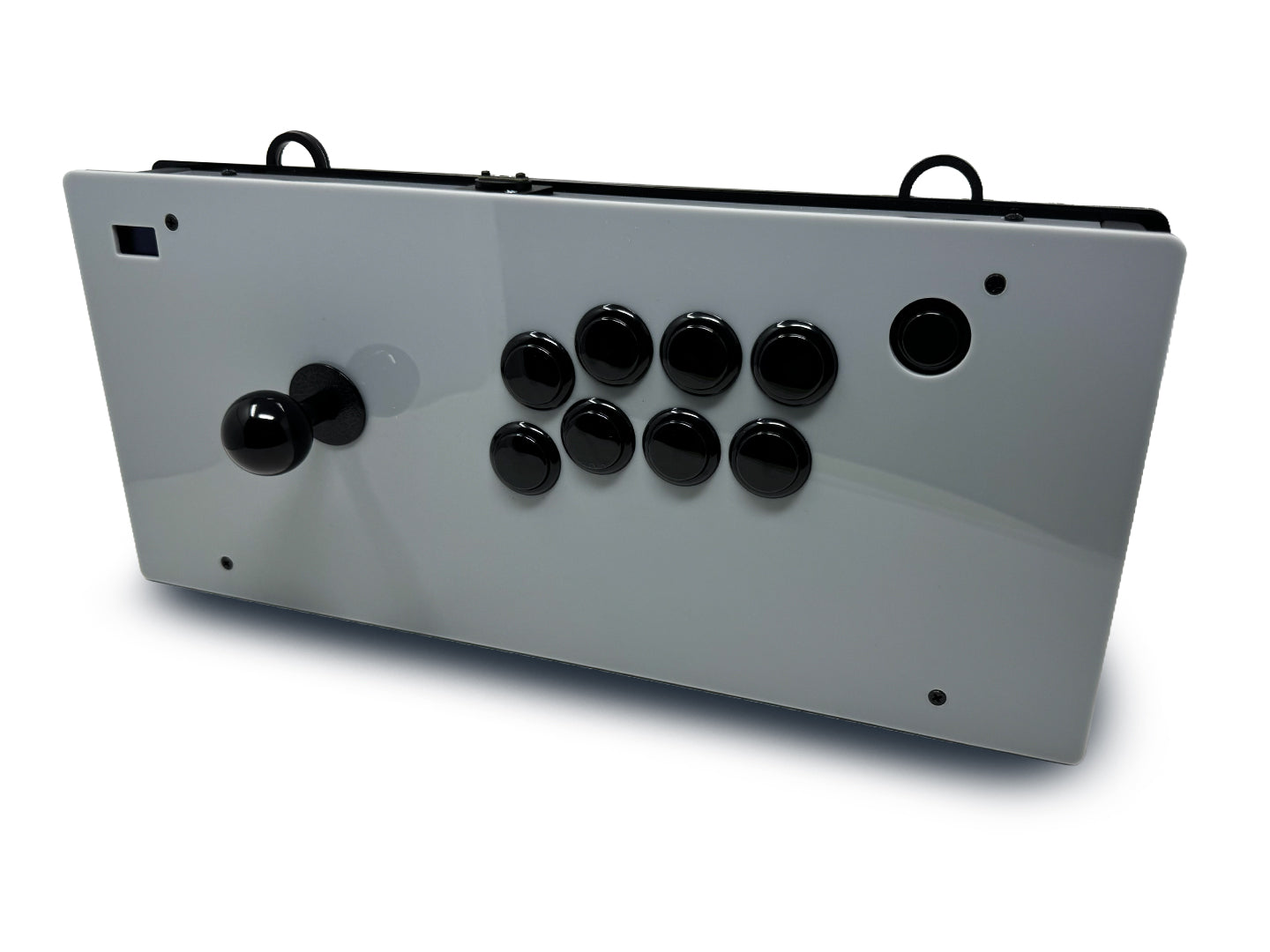

Eternal Rival - High Tier Case - Fightstick Enclosure - Add Art in Options
I needed a very custom layout using cherry mx keys and they helped me out immensely, I gave them the SVG for the layout and they organised it all perfectly. The case is solid construction and looks great.
Working with Howard was easy and helped me with questions and I got exactly what I was looking for.
excellent product, and excellent communication from the builder. would recommend to anyone - ER is top.
Included Printed Art Location - Exterior panels will be clear to show art base on selection

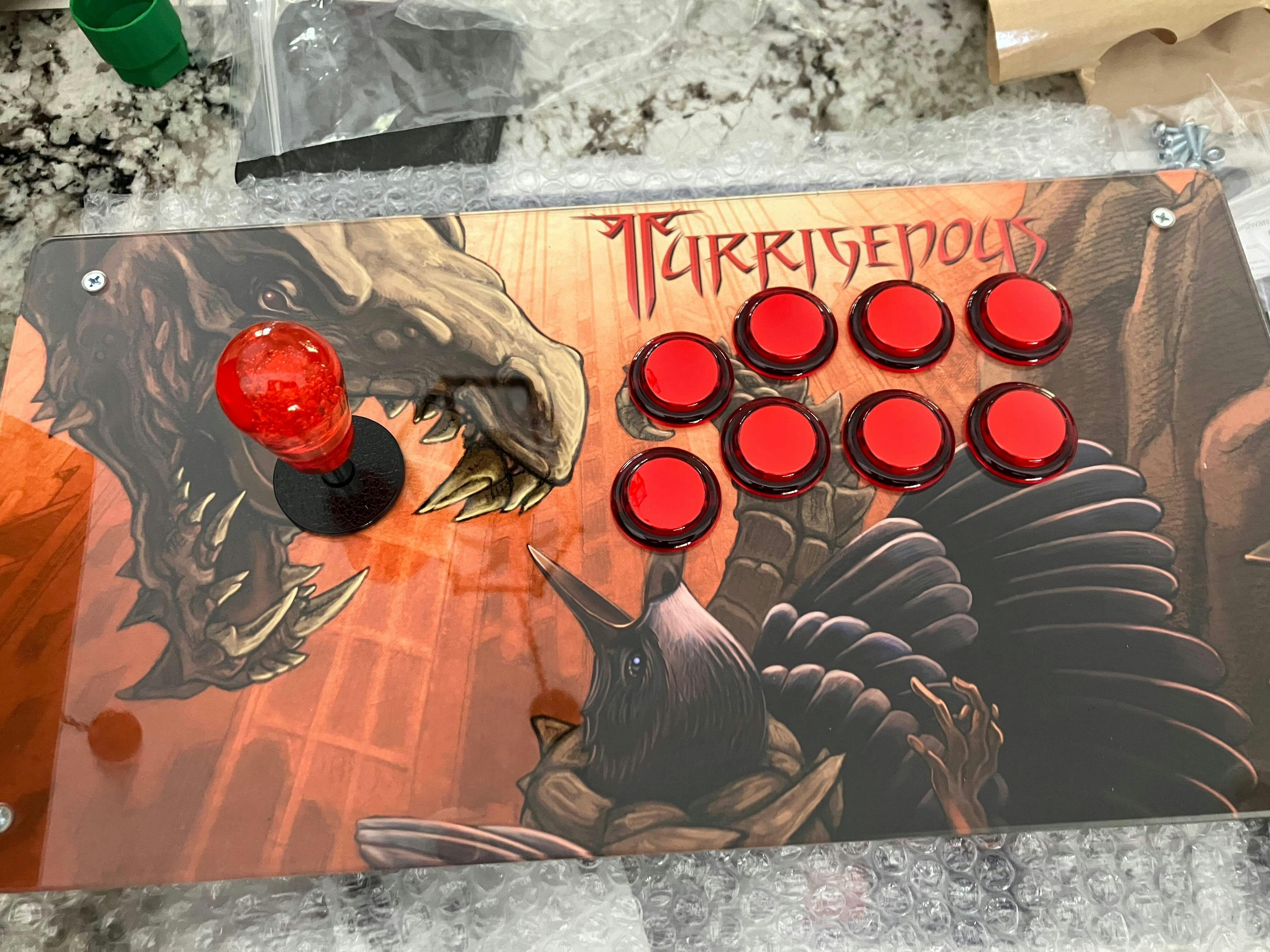

needed to change out the layout and art so replacing the top plexing and art did the trick. was great to work with limited changes when I want to try new things

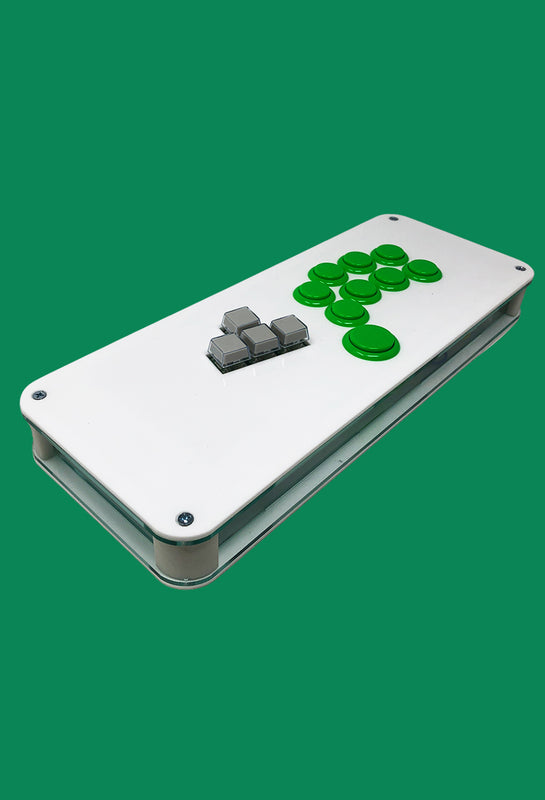

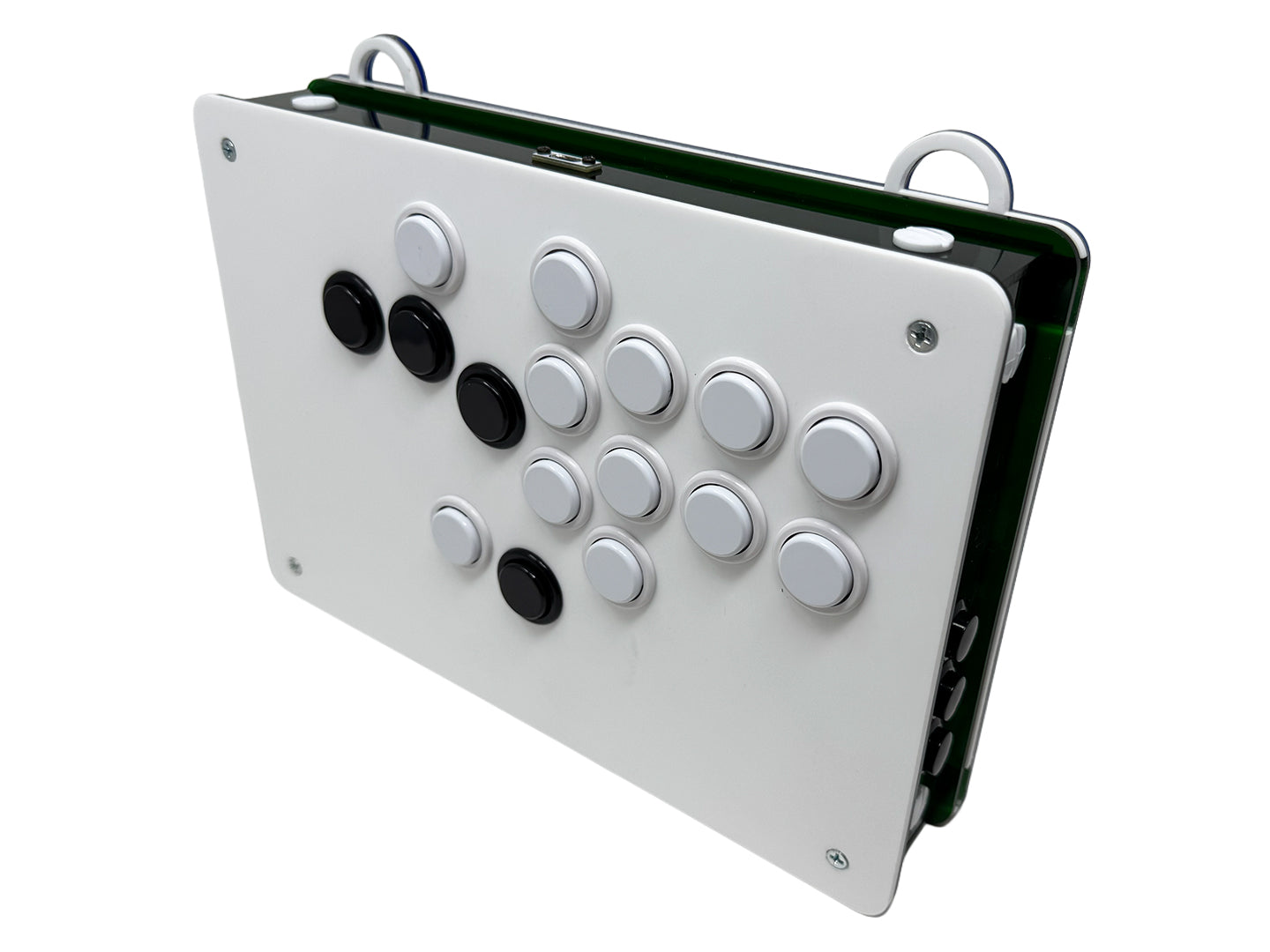

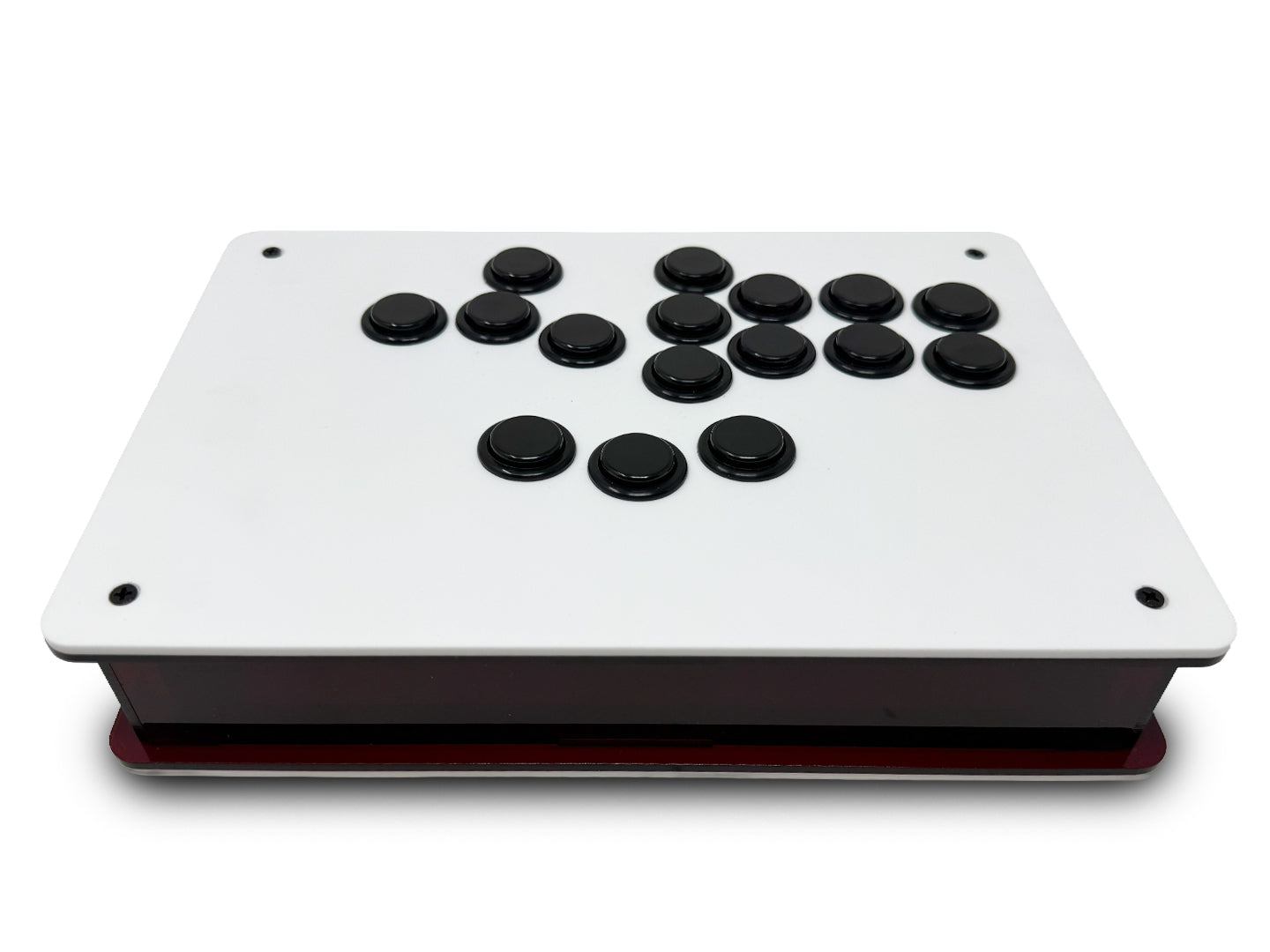

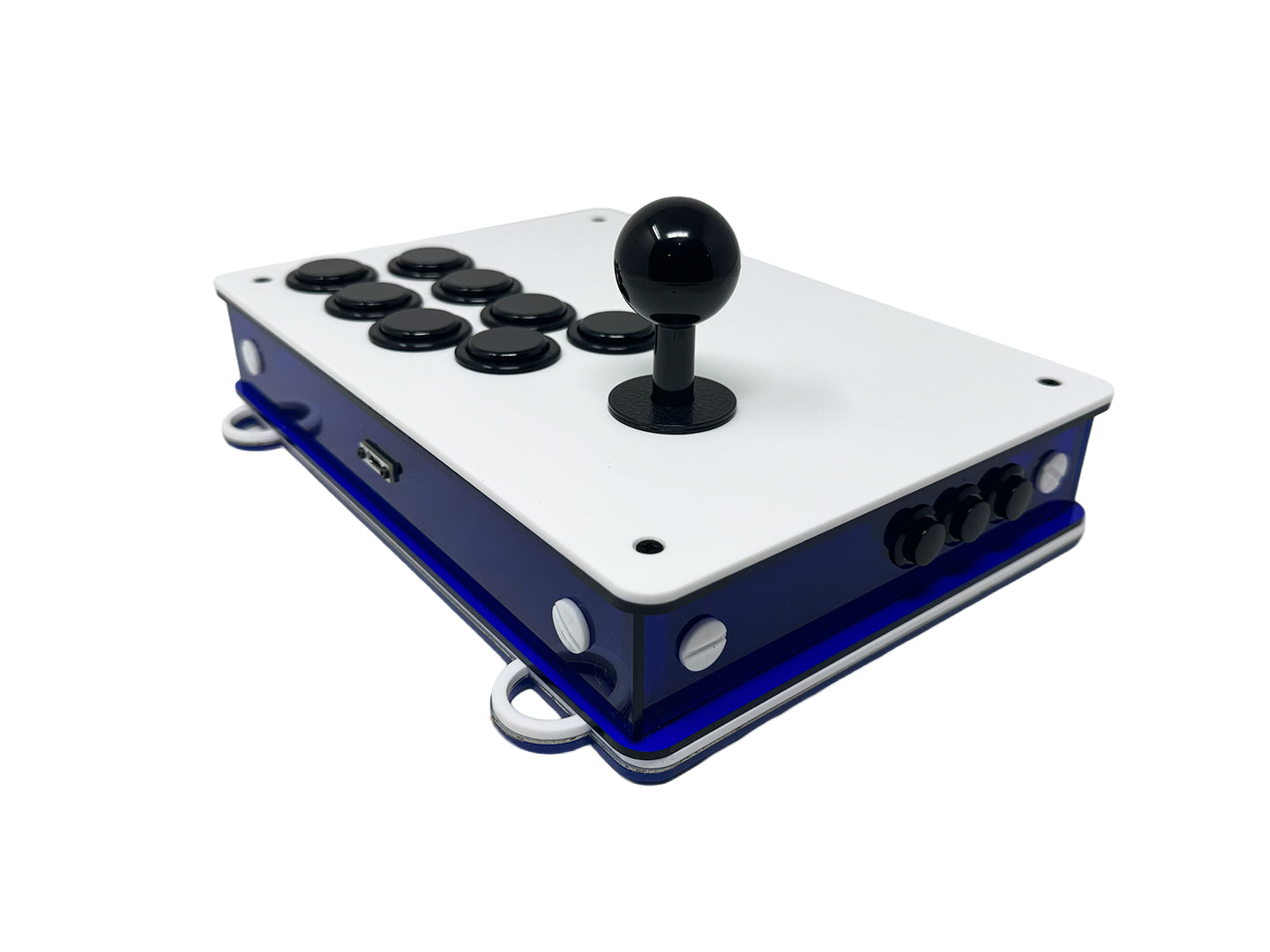

Eternal Rival - Mid Tier Stickless Mini - Add Art in options
Mid -Tier (Regular Case Panels) - FIGHSTICK - STICKLESS - KEYBOARD

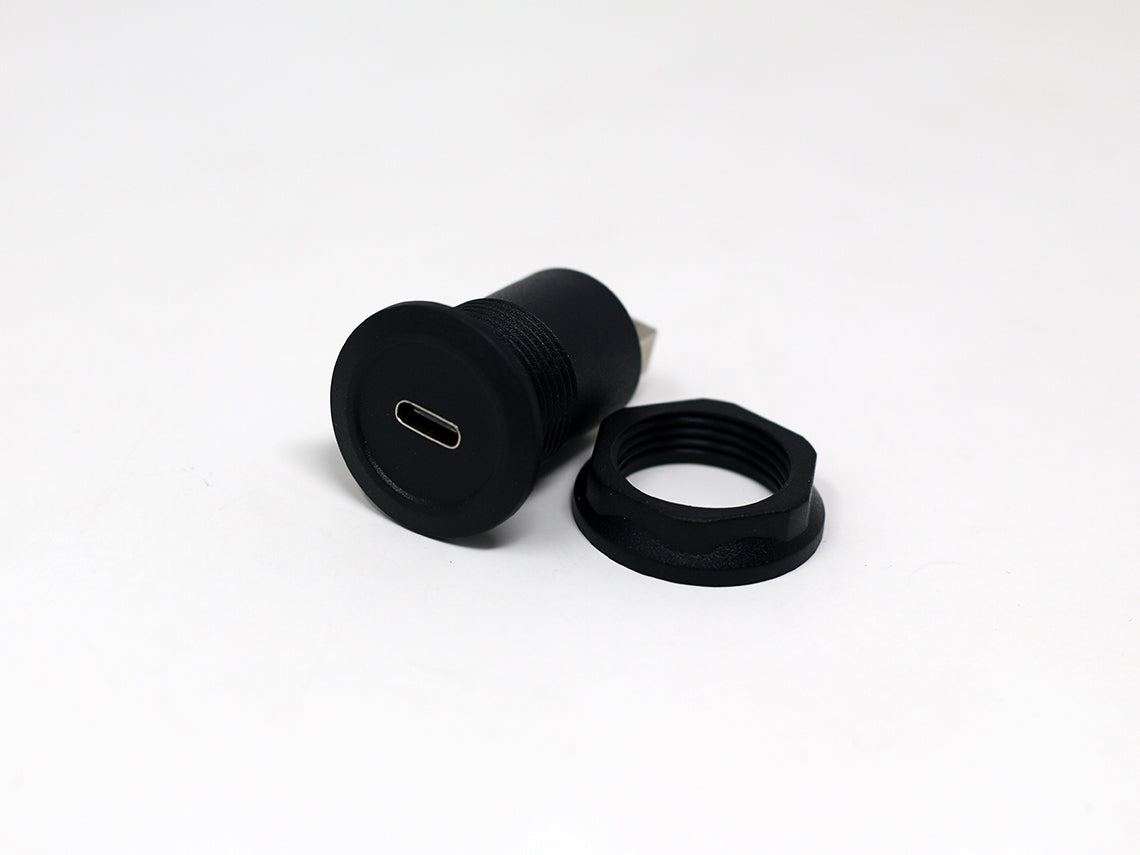

Adafruit: USB C Jack to USB A Jack Round Panel Mount Adapter
Light weight, easy to lug around, and very sturdy.
I've encountered a defect and notified the seller with pictures, who immediately responded and took care of the issue by sending out a replacement panel. Great customer service.
Highly recommend not doing a dark glossy finish if you are annoyed by print marks and pet hair sticking to the surfaces.
I would say the most cumbersome part about the order process is understanding the options, as there are quite a few to select. I recommend asking questions and taking time to understand what each option is referring to. I wish there was a visual add to go along with the process, but in the end I got exactly what I wanted.

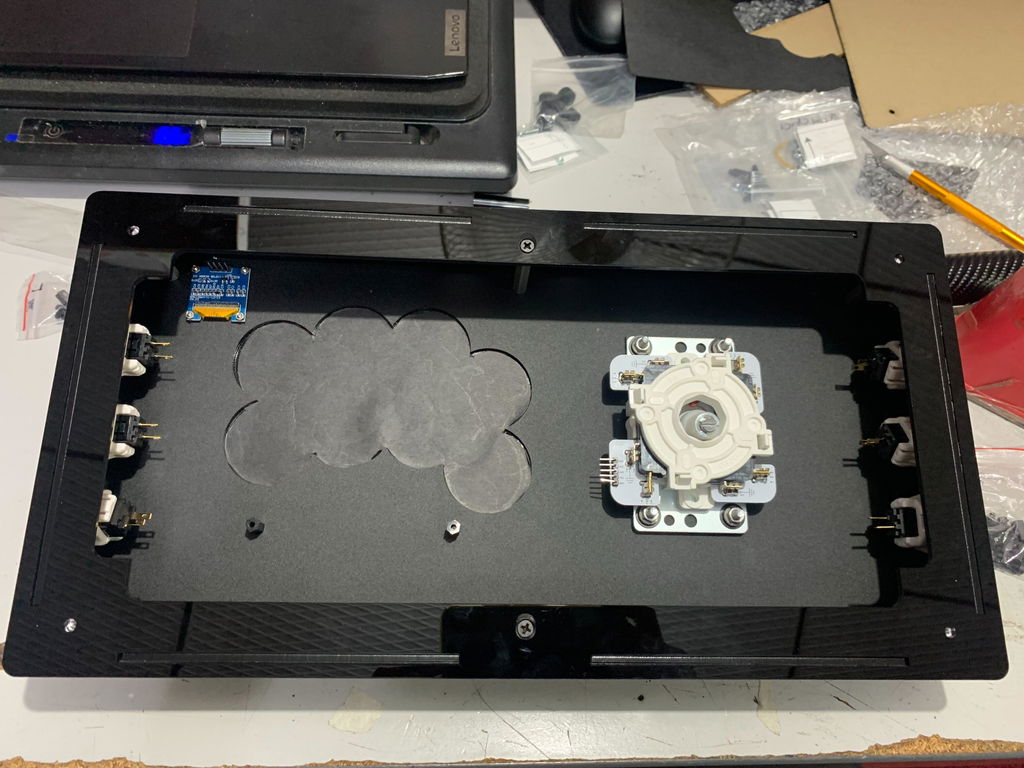

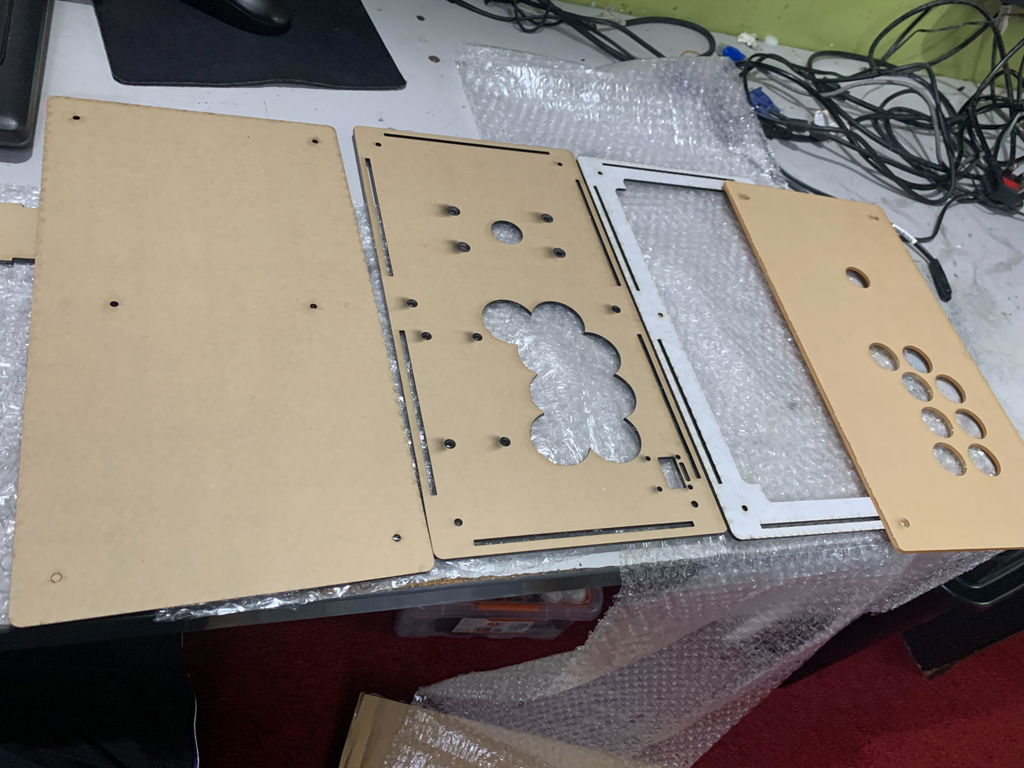

As far as assembly goes, it was very easy to put it all together if you follow the instructions, as they lay out all the hardware and cut pieces you should possess.

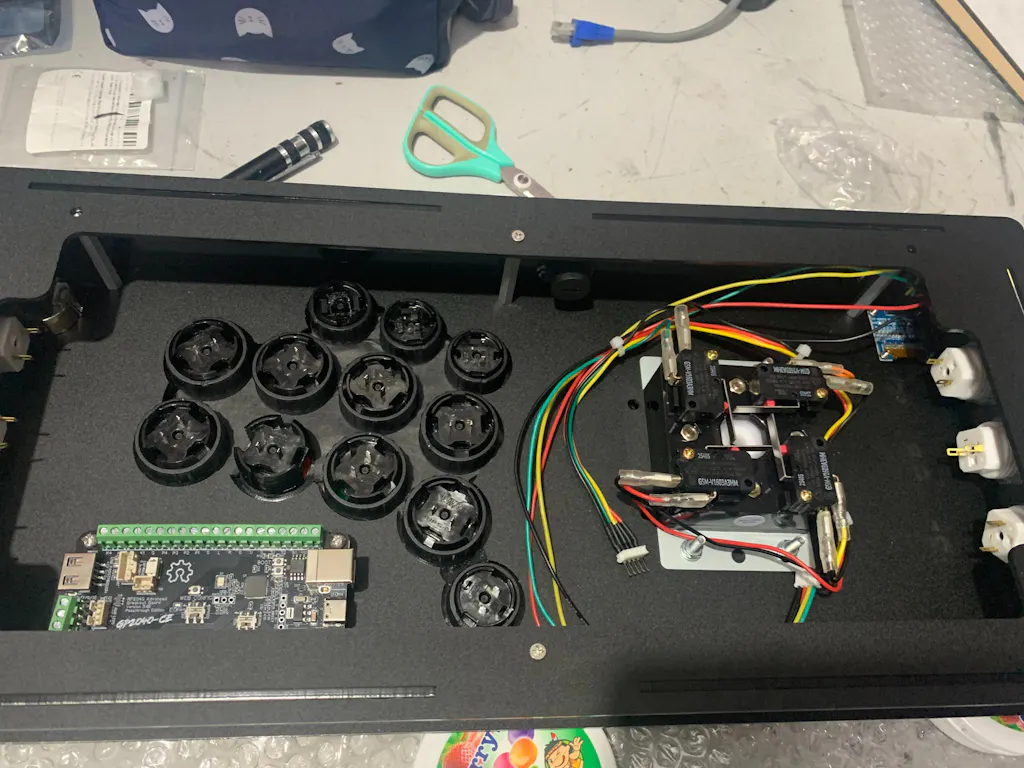

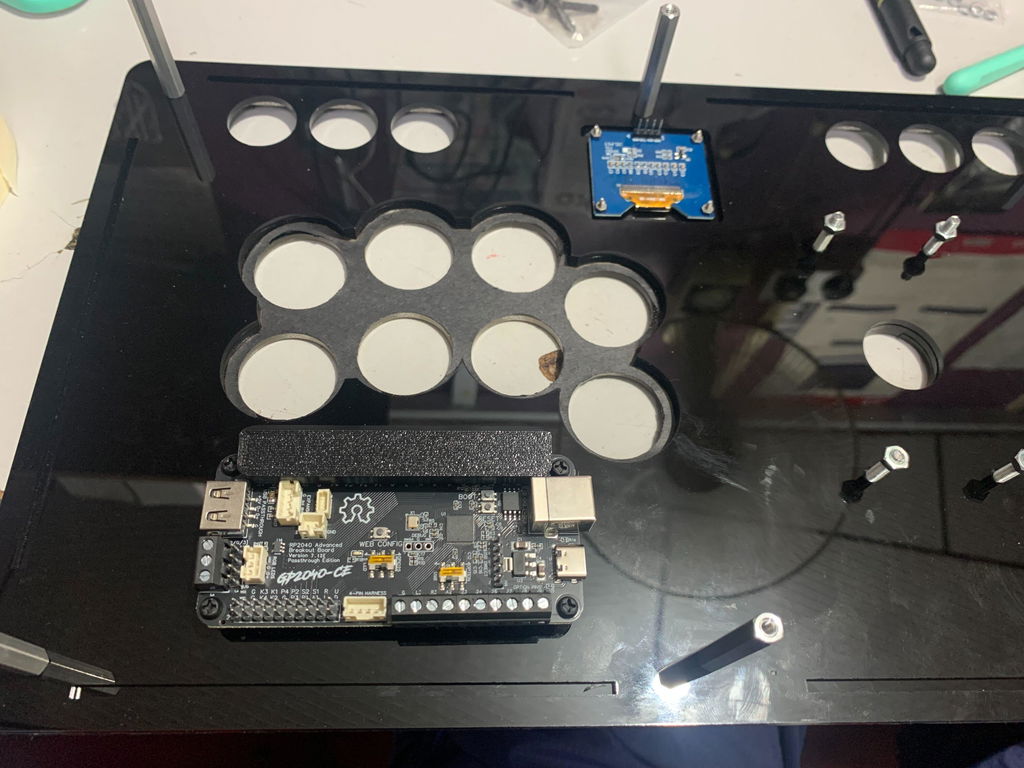

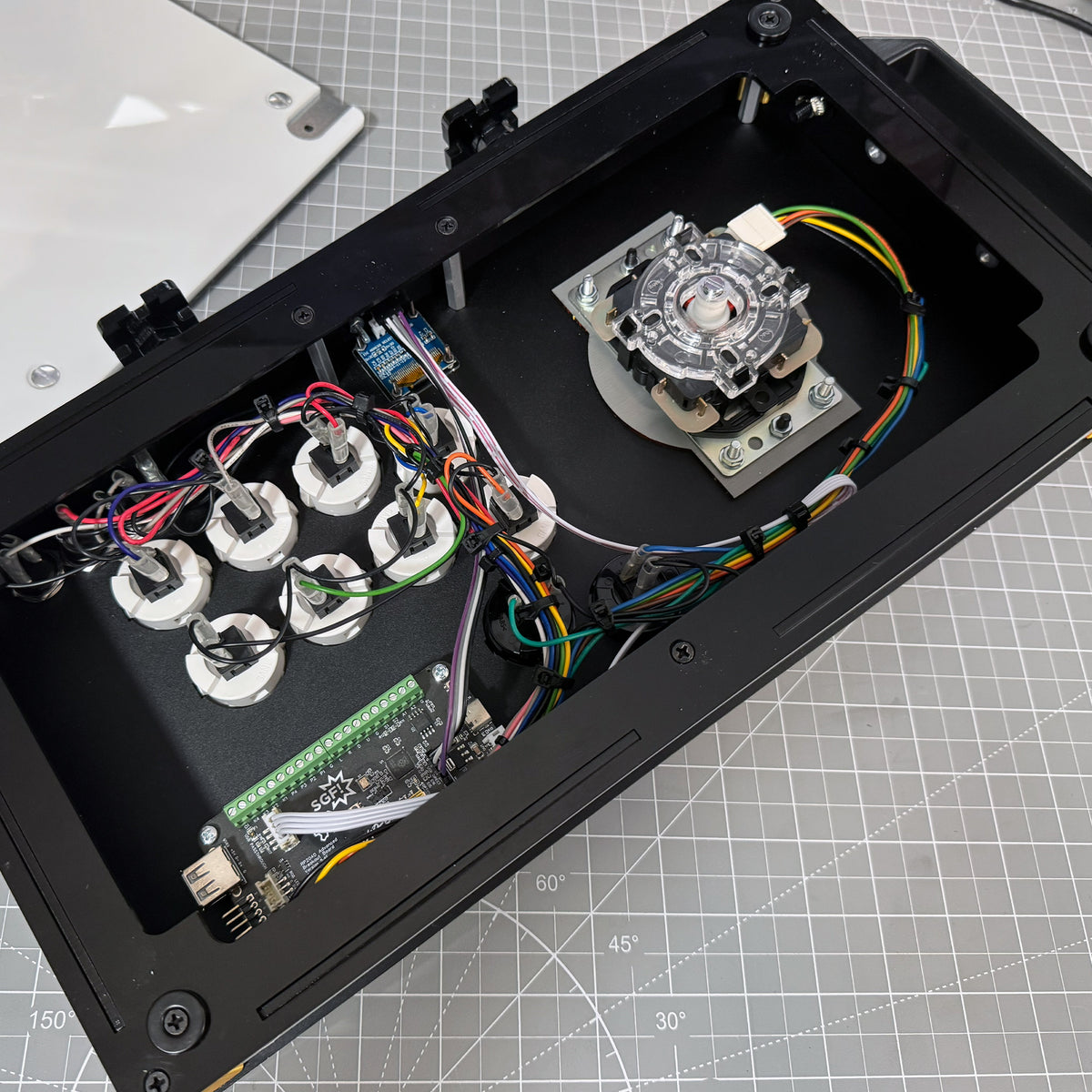

Everything inside is spacious and accessable. Making it a breeze to wire. I ended up using my own hardware for the PCB mount. I opt not to upgrade the mounting hardware as the description said it's specifically for brook boards, but was surprised when the mounting holes were already milled and fits my GP2040-CE board.

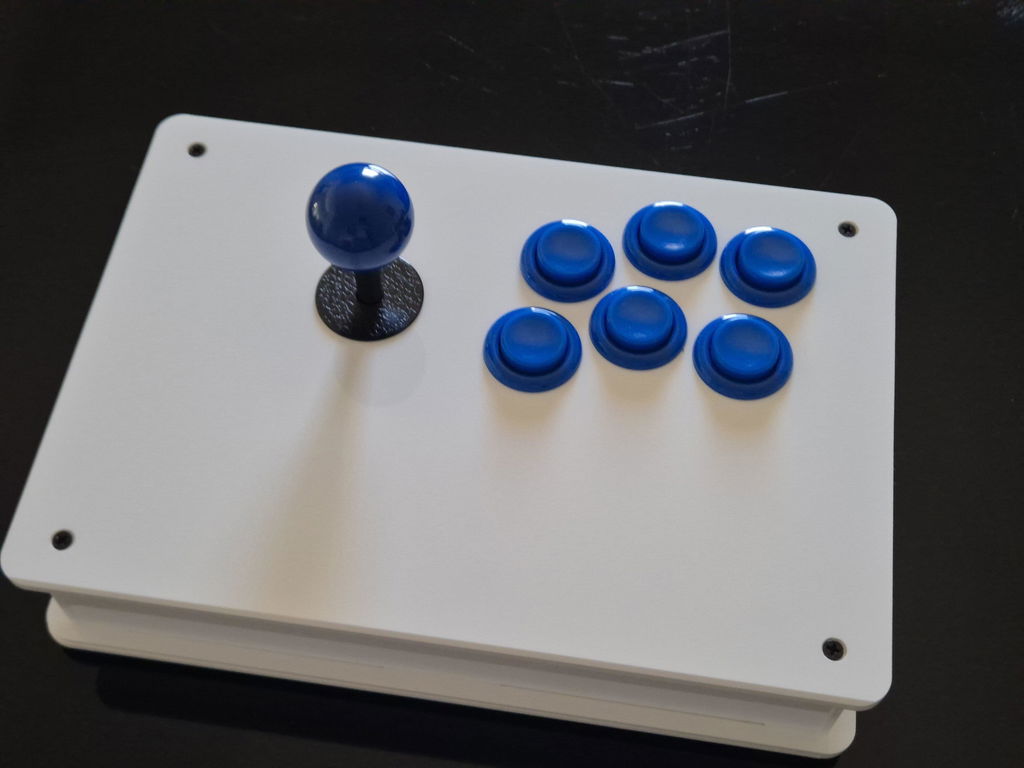

Turned out great I love it! Thank you!
Once again got everything I ordered and had great customer support the whole way.
Always my go to company for enclosures with my builds
These components are good material and I really like it
New feature product

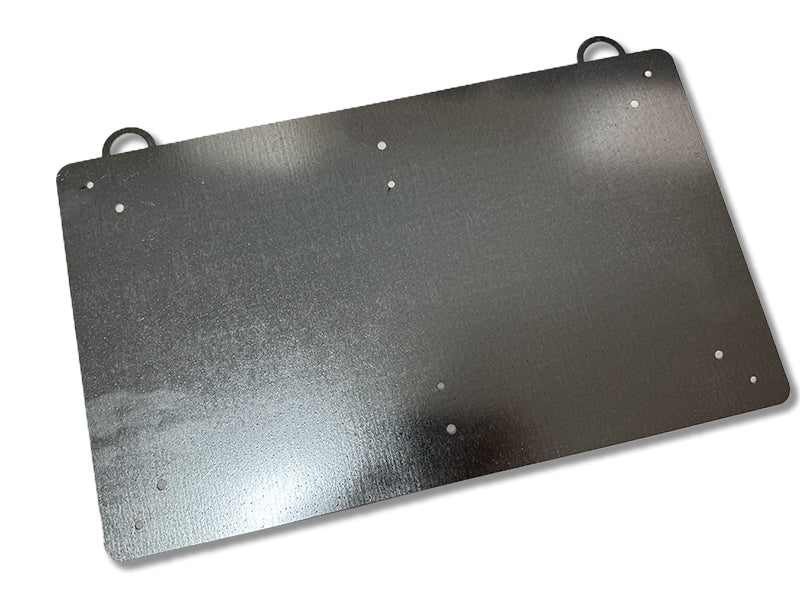

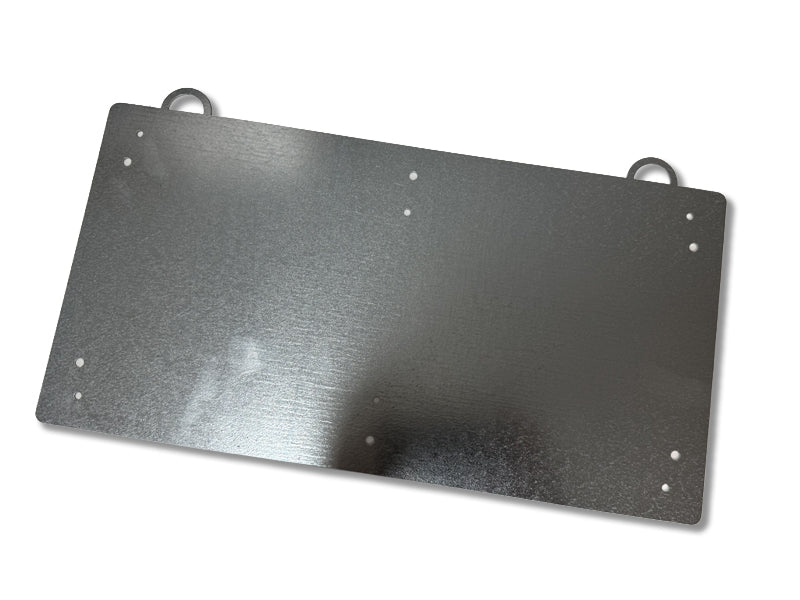

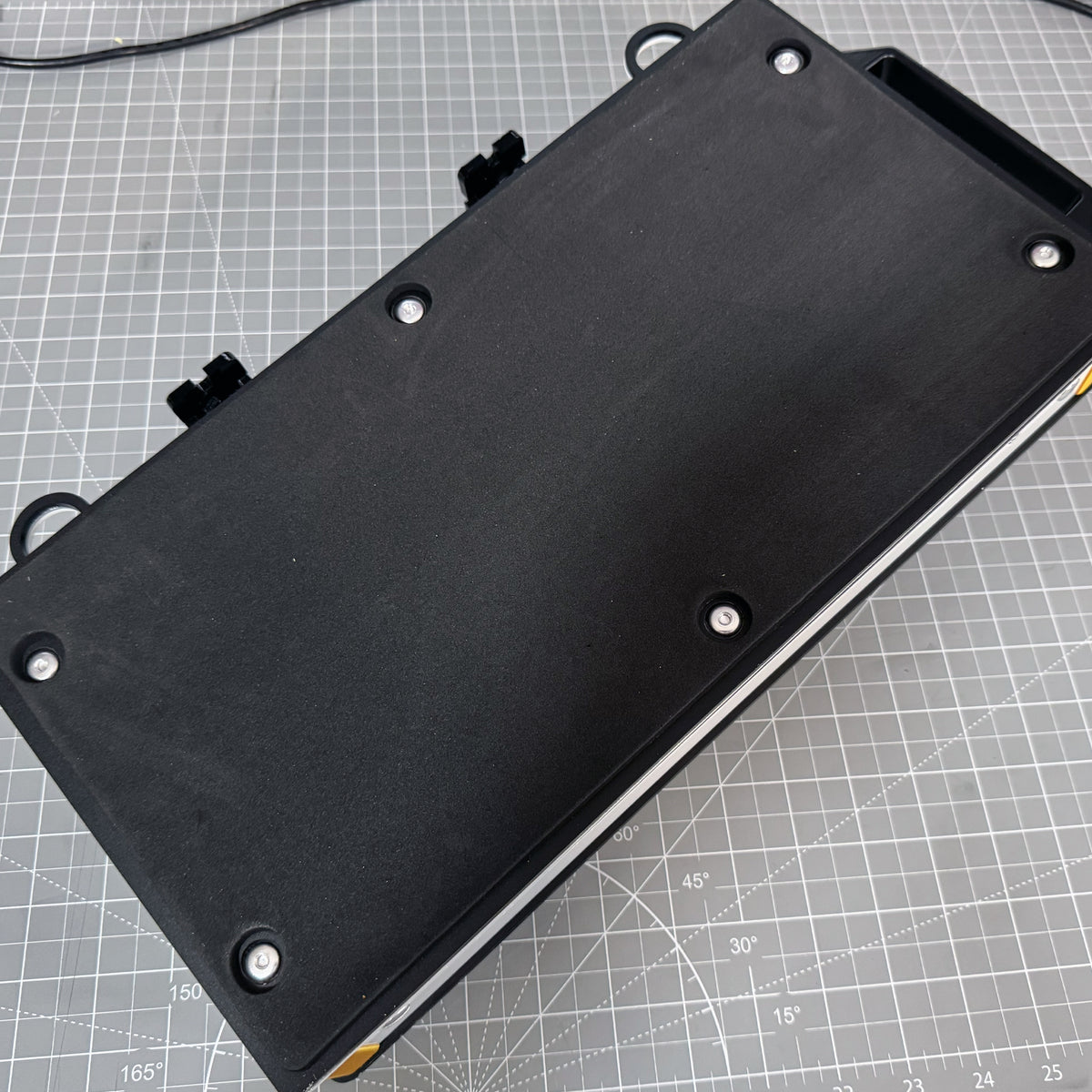

Fits in the inner bottom of your case. You will need the Acrylic bottom panel with the two holes where the feet goes.
