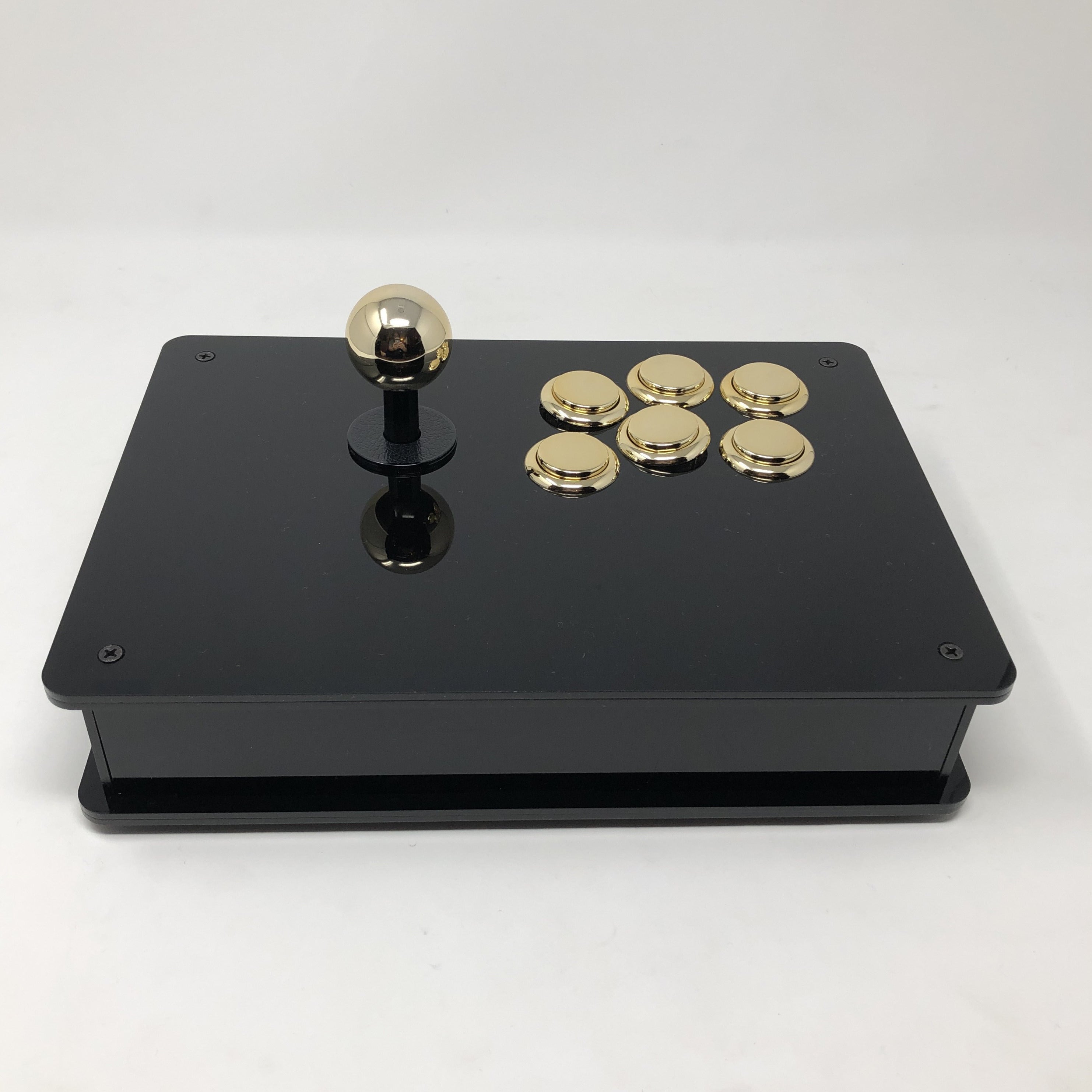

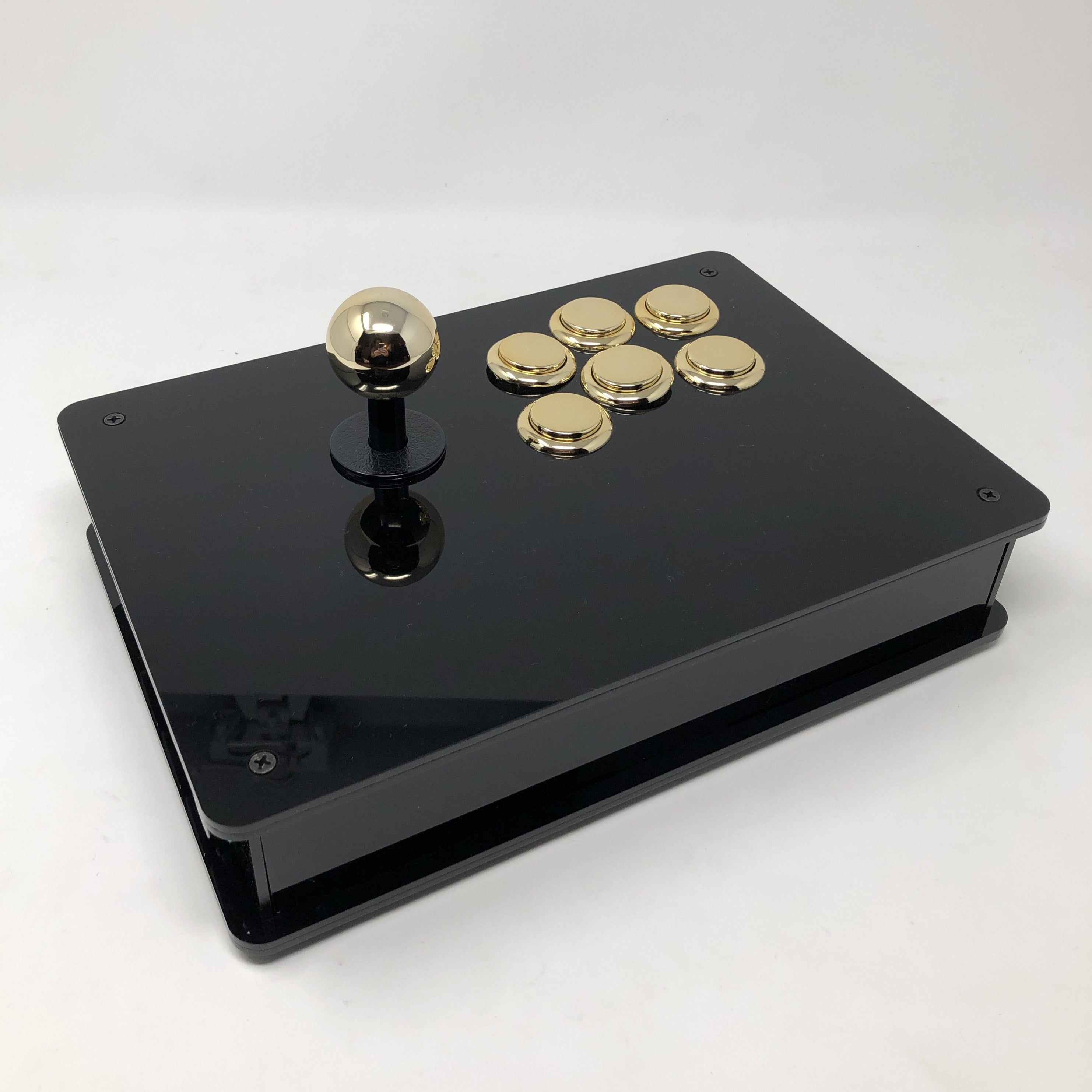

Eternal Rival Fightstick Mini

$ 42.99 USD

What is this?

This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.

Features

-Large Wrist Rests

-Flush Mount Top Screws

Enclosure cannot be customized due to the tightness of the configuration. We will not make any customs to this case.

It’s like building a computer.

All the components are sold separately. Depending on how much you want to  spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.

What is made out of?

The enclosure is made out of cast acrylic (plastic).

The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.

Is it easy to build?

Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.

Why do I need this?

  • DIY. Fun to build.
  • Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
  • Customizable
  • Add art!
  • Play arcade games.

Specs

Width -10.75in~
Length - 7
.75in~
Height- 2.50in~

Side walls - 1 layer
Top and Bottom Panels - 2 Layers


Case options

How does color panel combination work?

Here is an example click here

What is feet with flush mount?

The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)

Component Wiring and PCB Kits – (Stickless)

  • Kits are available on our store that has all the inner components on one product listing.  Can find it here. THE KIT DOES NOT COME WITH BUTTONS AND JOYSTICKS.
  • For Buttons here

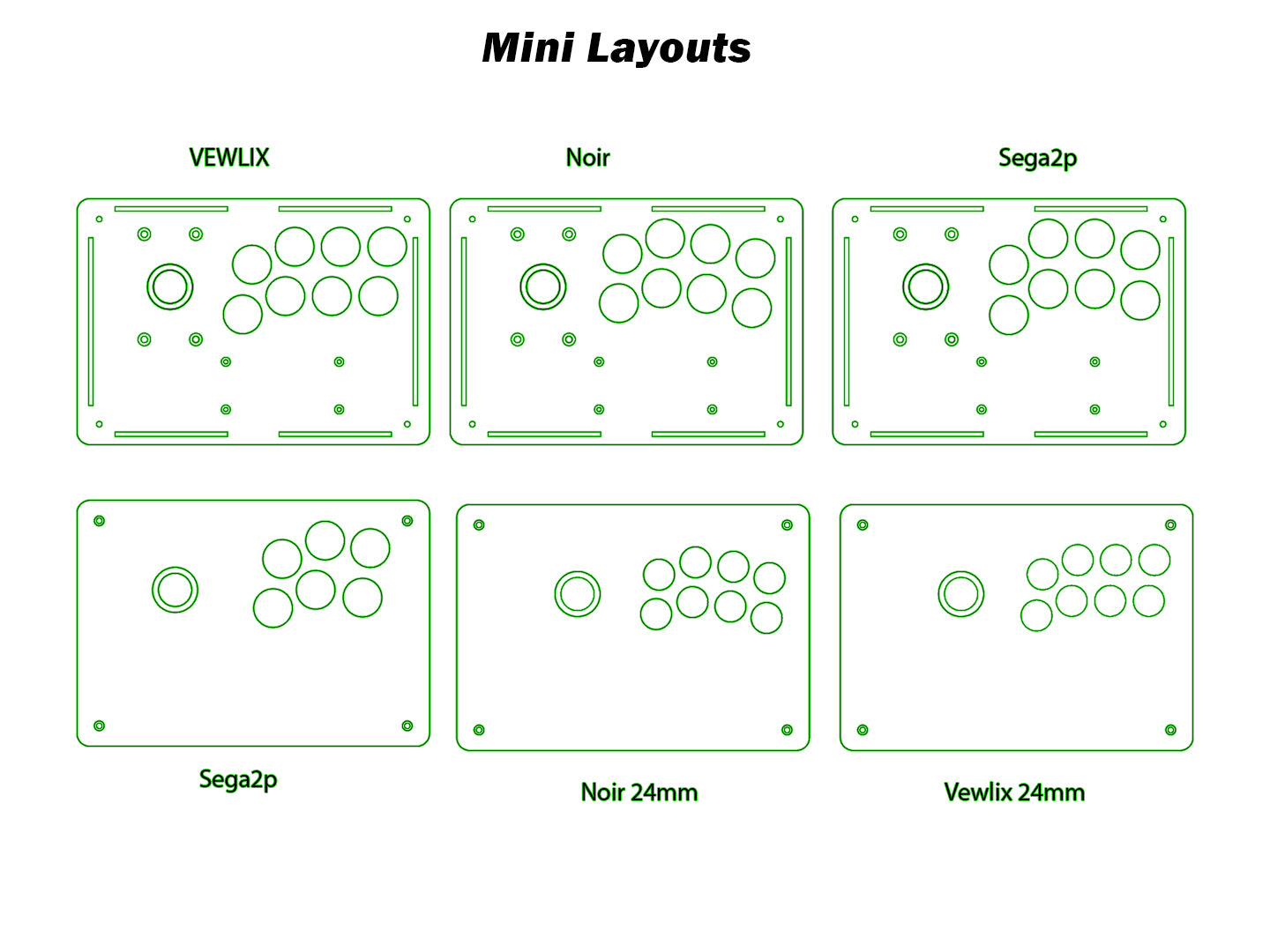

Needs main action buttons needed for Fighstick Mini

Buttons Needed TOTAL

30mm sega2p needs - x6 - 30mm, x6 24mm
24mm noir needs - 14 – 24mm
  • Screw-on and snap in are compatible
  • Does not fit Euro/Happ style buttons

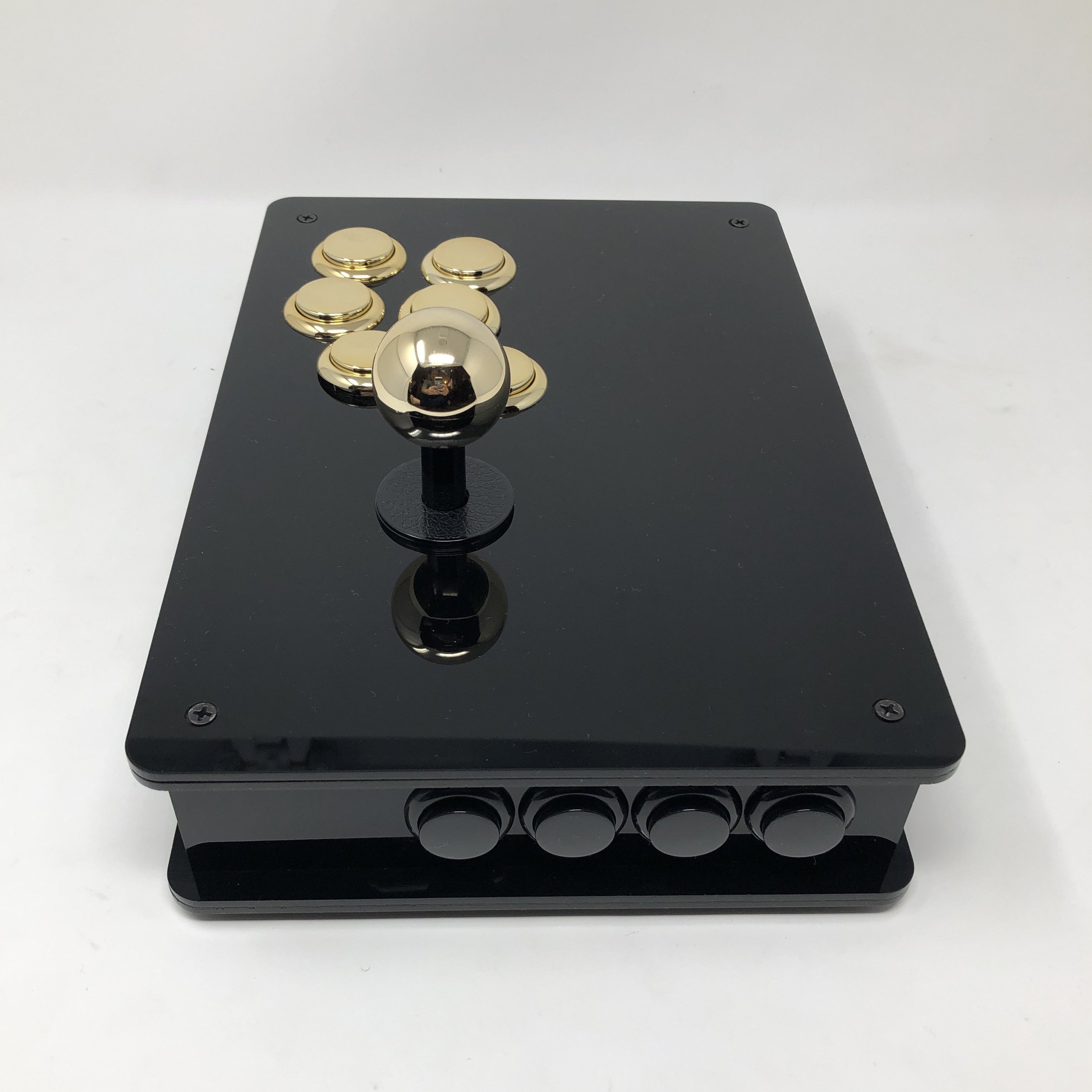

Needs AUX Buttons (side buttons)

  • The AUX/UTILITY buttons fit 24mm buttons. Total 6
  • SNAP IN only
  • Does not fit Screw on Buttons

Needs Brook PCB (chip/brain)

  • The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
  • Enclosures fit any Brook Fighting Board PCB
  • Any PCB that is not a Brook will need adhesive stands

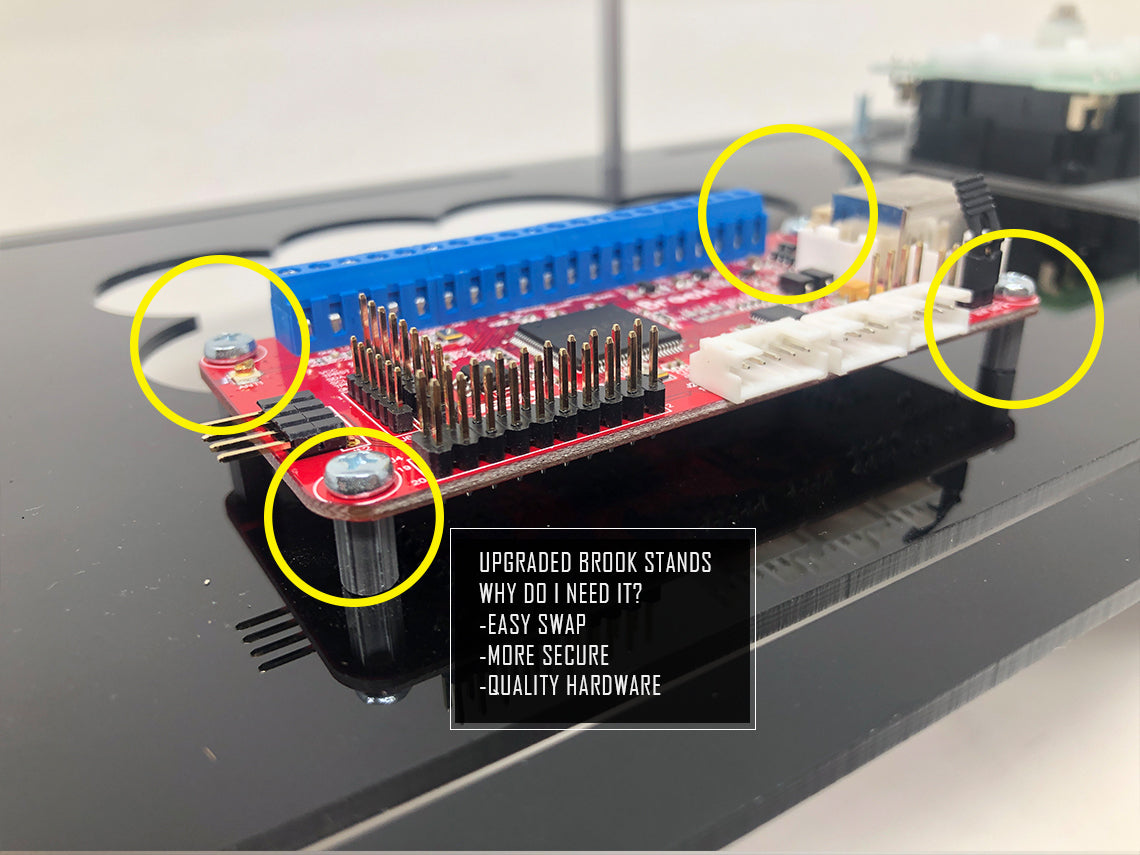

  • Mounting holes and hardware are included for free. (can be upgraded)

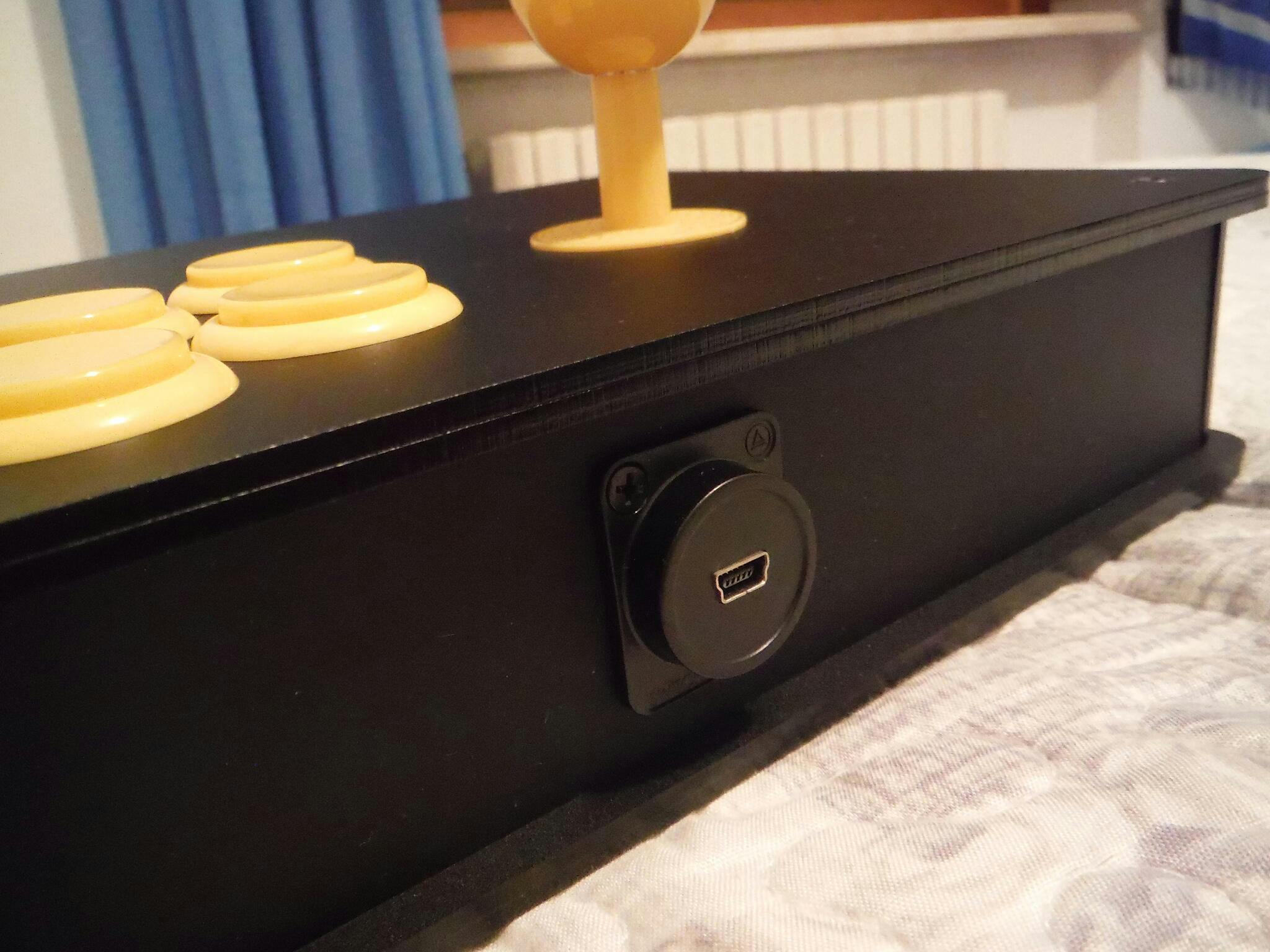

Needs: Passthrough

  • Passthrough device is located on the front panel where you disconnect the wire from the case. It’s mounted on the enclosure
  • Our cases can fit any of these 2 passthroughs
    1. USB C Adafruit
    2. Neutrik

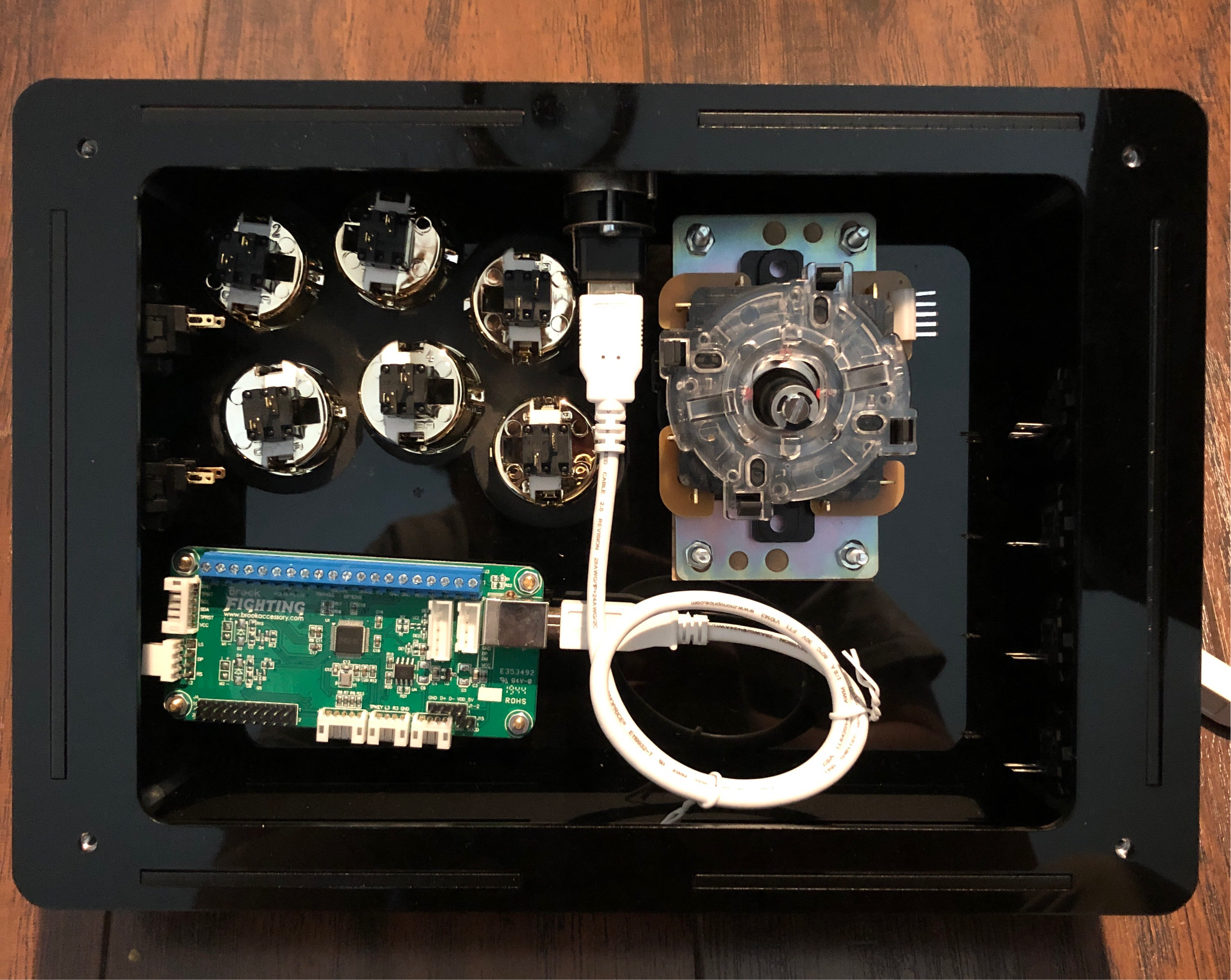

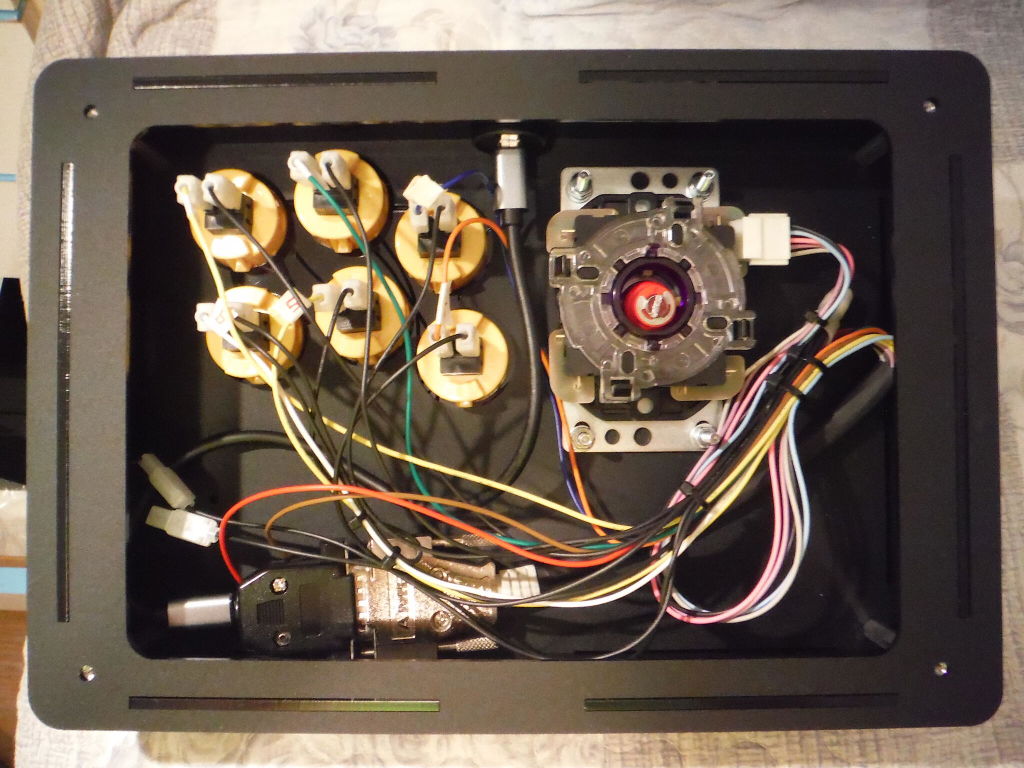

Needs Wiring (Fighstick)

  • 20pin wire connector. Connects to the pcb --- which connects to the main action buttons, share, home, start and the joystick. Ground wire must be connected to each connector on the button (does not matter which prong).
  • Short Printer cable. Connects to the PCB and Passthrough
  • Long (Printer or USB C to USB A) cable . Connects to Passthrough to console.
  • K Lever conversion cable

How do I wire this together?

Here is a diagram. Click here
