Eternal Rival - Bantam Slim - 24mm Action- Add art in Options

$ 50.99 USD

What is this?

This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.

What's a stickless controller?

A button layout that simulates a keyboard. So no joystick.

It’s like building a computer.

All the components are sold separately. Depending on how much you want to  spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.

What is made out of?

The enclosure is made out of cast acrylic (plastic).

The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.

Is it easy to build?

Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.

Why do I need this?

  • DIY. Fun to build.
  • Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
  • Customizable
  • Add art!
  • Play arcade games.

Specs

Width -13.125 in
Length -
5.125in
Height- <1.23in without feet or pad underneath

Side walls - 1 layer
Top and Bottom Panels - 2 Layers

Case options

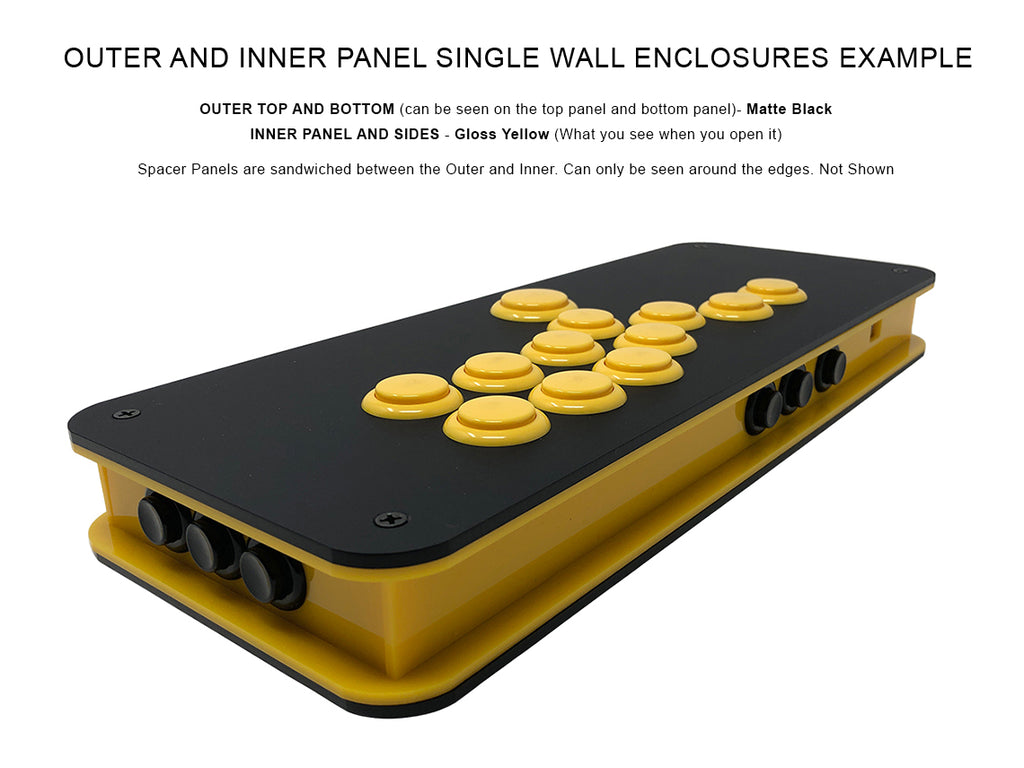

How does color panel combination work?

Here is an example click here

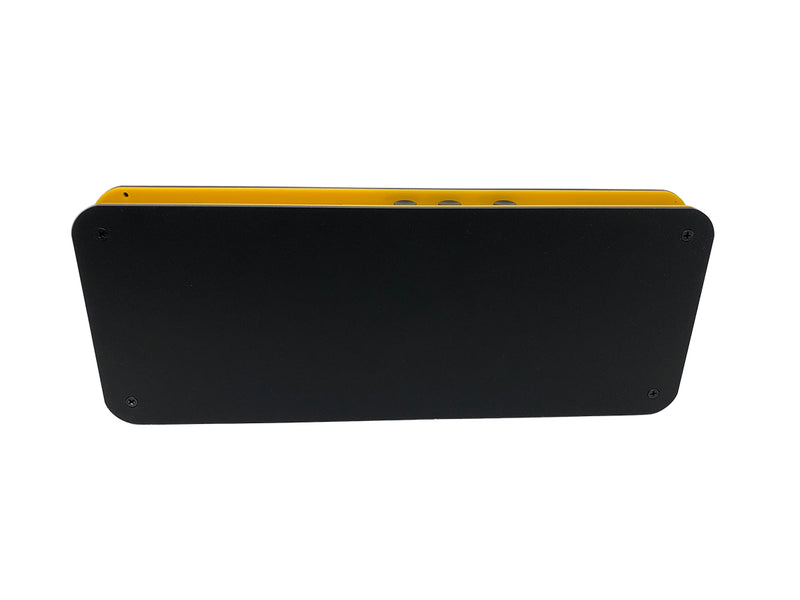

What is feet with flush mount?

The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)

Component Wiring  Kits – (CAU Stickless)

  • Kits are available on our store that has all the inner components on one product listing.  Can find it here. THE KIT DOES NOT COME WITH BUTTONS AND PCB
  • For CAU Buttons here
  • FOR PCB click here

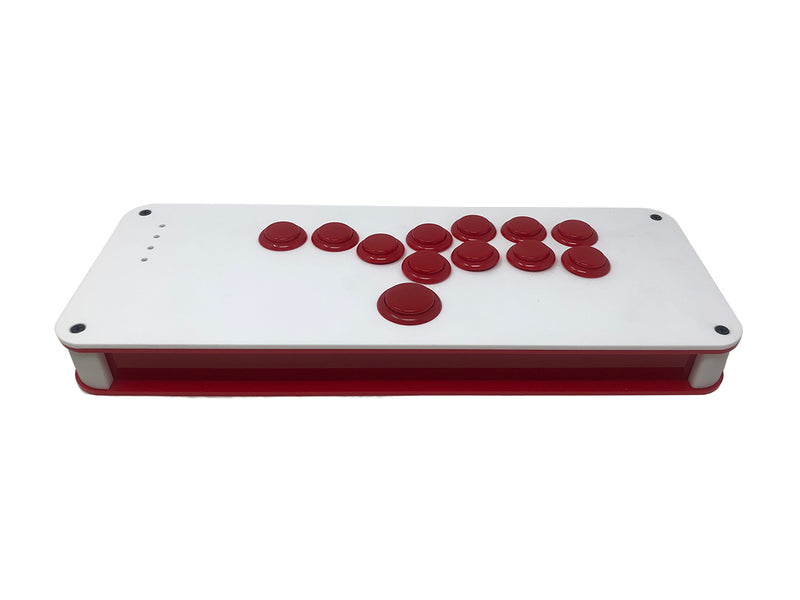

Needs main action buttons needed for Stickless

  • OG STICKLESS
    1. 11x 24mm buttons (Low profile buttons or Sanwa CAU buttons)
    2. 1x 30mm buttons (Low profile buttons or Sanwa CAU buttons)

  • Screw-on and snap in are compatible (Sanwa CAU)

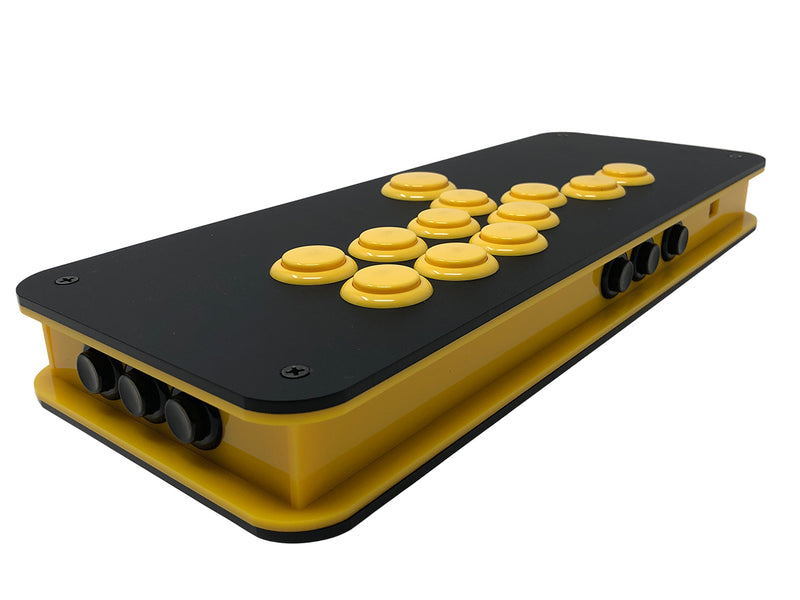

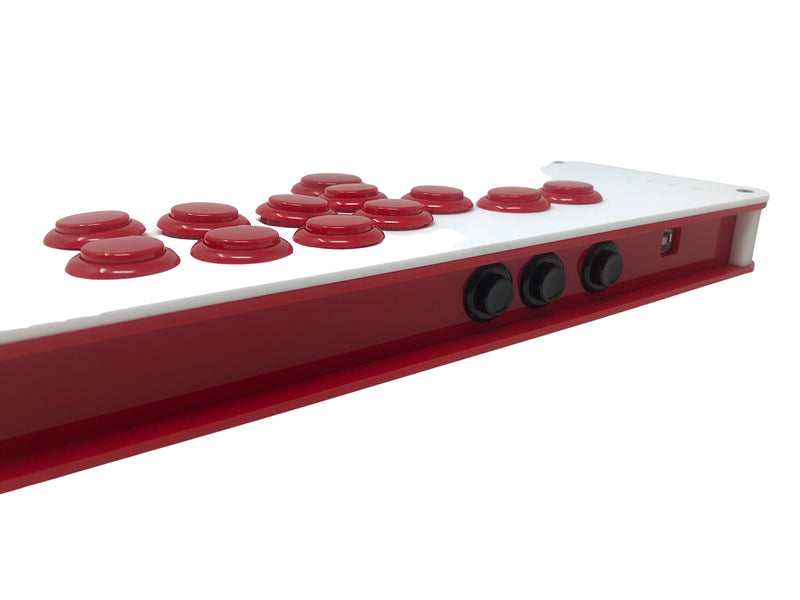

Needs AUX Buttons (side buttons)

  • The AUX/UTILITY buttons fit 18mm buttons ONLY. Total 6.

Needs Brook PCB (chip/brain)

  • The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
  • Enclosures fit any Brook Fighting Board PCB
  • Mounting holes and hardware are included for free. (can be upgraded)

Needs: Passthrough

  • Does not need a passthrough.

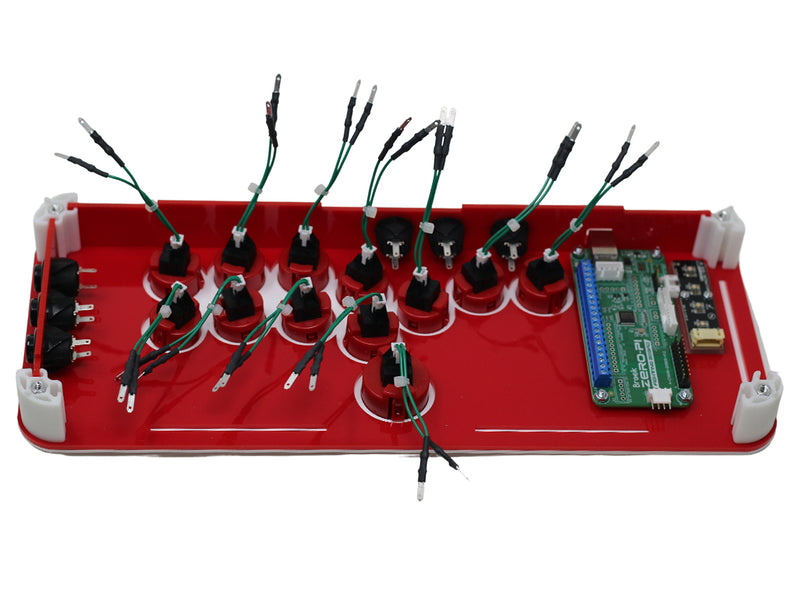

Needs Wiring (slim stickless)

  • Recommend getting the kit it has everything you need except the CAU buttons and PCB.

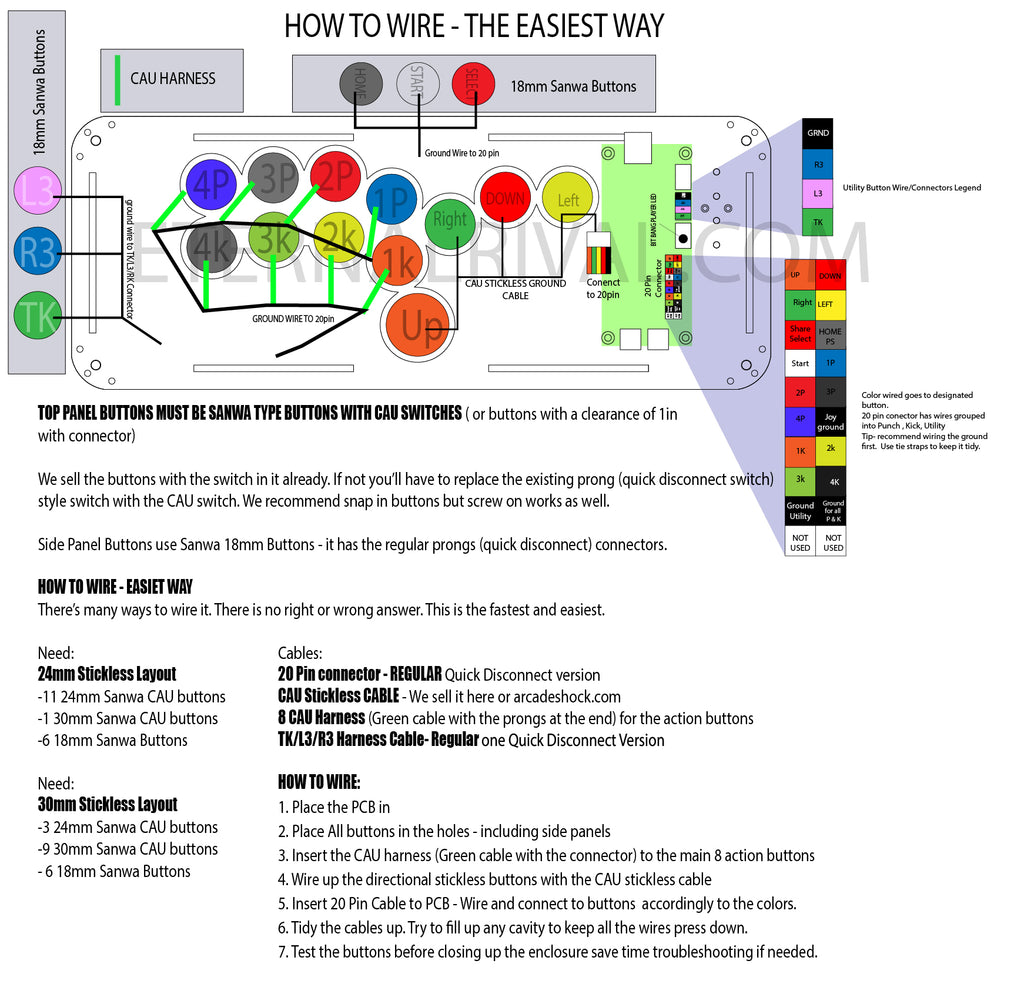

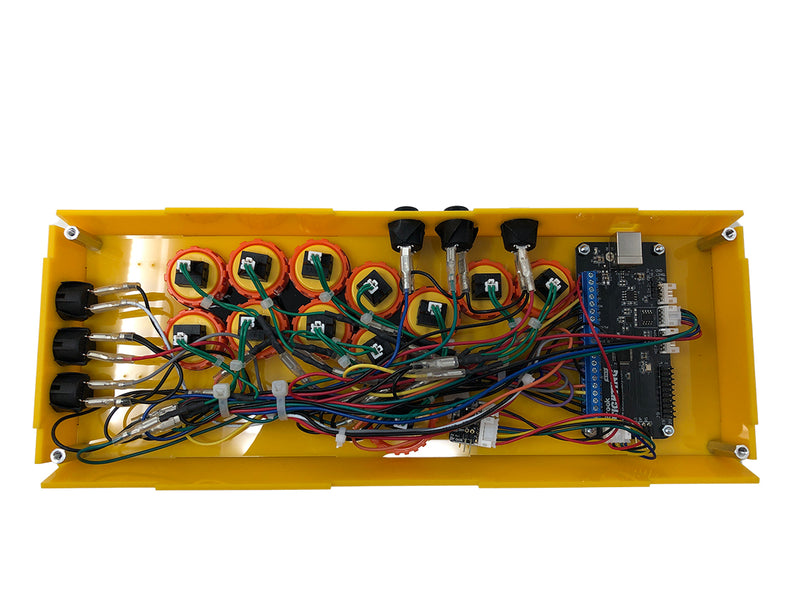

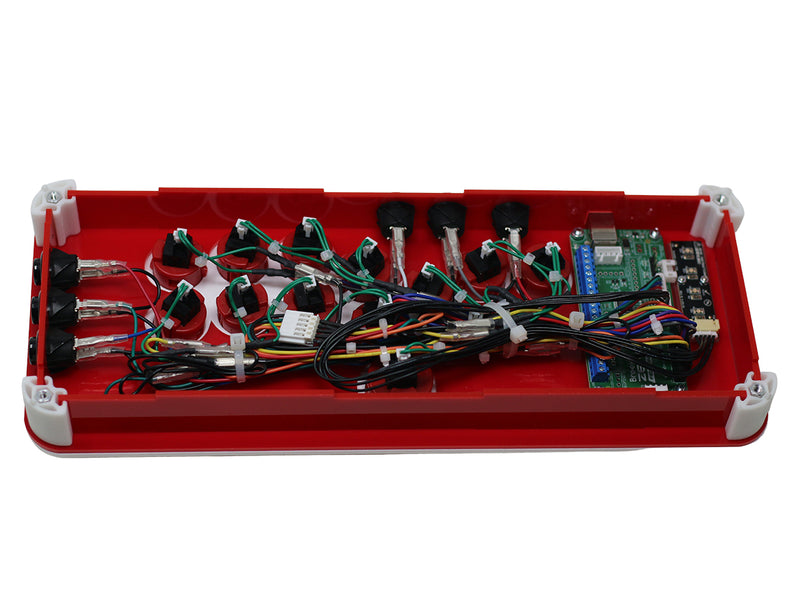

How do I wire this together?

Here is a diagram. Click here

Optional Add-On

LEGAL FOR ART PRINT

If you knowingly violate copyright by printing copyrighted photos for personal use, you are liable to pay damages to the copyright owner. If the image is registered with the copyright office you may be required to pay statutory damages and all attorney fees. By ordering from Eternal Rival and accepting our Terms of Service you accept responsibility for ensuring you have proper permission and license to reproduce the image. Sometimes it is as easy as simply asking! Many photo studios, or artist will hand you a release to copy the prints you buy if you ask for it, and if you purchase hi-res files from your photographer or artist they will likely also include a release. Some places may want to charge extra for this or they may not allow it at all, preferring to have you order all copies and products directly through them.

We value your privacy we now do not share on our social accounts or keep or archive or reproduce. If it is for personal use, it is best to keep it as personal use. Share at your discretion. In good faith we trust you the customer to have approve permission, or licensed artwork once uploaded as well as following copyright and infringement laws. We also have the right to deny any print if we feel it violates anyone’s rights.

Customer Reviews

Based on 4 reviews
100%
(4)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
R Wood
Sleek, stylish, perfect - and great customer service!

Case is exactly what I wanted: high quality, easy to put together (with clear instructions), and neat and ergonomic without sacrificing playability. Customer support was also great, being happy to bounce emails back and forth to make sure I got the details exactly as I wanted -- and helping me out when I had put a panel on upside-down and didn't realise what I was doing wrong (entirely my fault).

The slim form factor does mean that the wiring is tight and you will have to be judicious in your use of cable ties or similar to keep everything neat. Really you should use low-profile buttons but I was able to use standard size by bending the connecting pins (not recommended unless you really want a specific type of button, like I did.)

Very happy with my Bantam Slim and can thoroughly recommended to anyone looking to build an all-button controller.

T
T.A.
WOW!!!

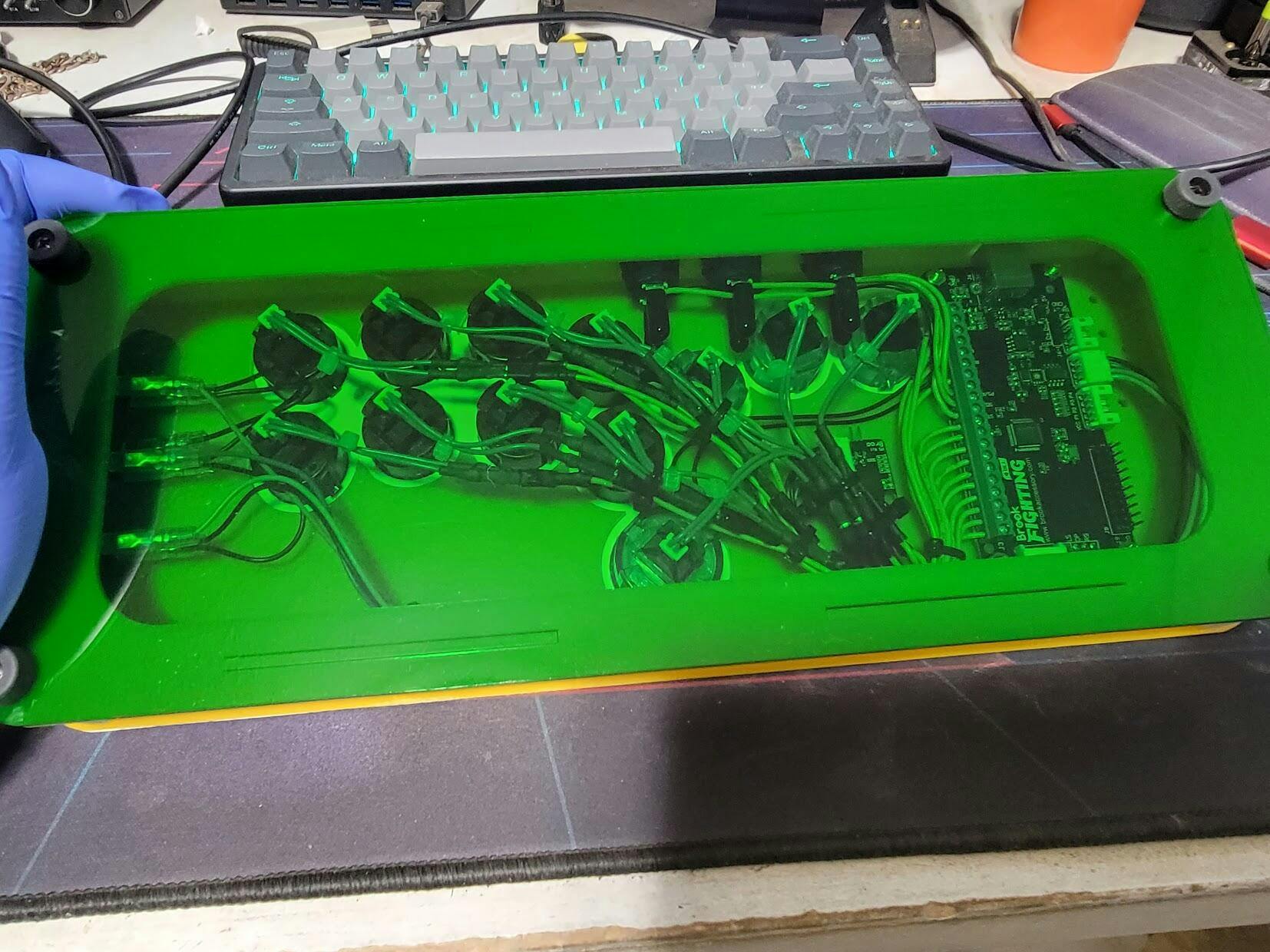

What a awesome case! Sturdy and SLIM!! Great customizability, easy to assemble and you can keep the sanwa buttons in a slim case! Snack what? Wiring is a pain bc there is very little space but can be done. Custom sleeved wiring is harder to accomplish because of the CAU connectors and very tight space. I decided to not sleeve my wiring. photo included. The artwork template is slightly miss aligned with the buttons and the cut. A button ring wont be perfectly centered with the buttons. So you got to go without button rings on your artwork but that isn't a big deal to me. you can see what I mean in the photo I posted. The rubber feet really grabs and it does not slide around on your desk. Your wrist over hang the stick but this teaches you better posture and is better for your wrist. I painted the corner supports for a ultra custom look and it worked out perfectly. sand it down and use Tamiya putty to fill the gaps. S tier case!

Overall this is a really stunning, sturdy slim case and I am loving it!! THANK YOU ETERNAL RIVAL!!

P
Paul Fiegel

Eternal Rival - Bantam Slim - 24mm Action- Add art in Options

G
G
Works like a dream

Etsy Review May 10, 2022

Works like a dream. Don't know what else to put here but great stuff overall.
