What is this?

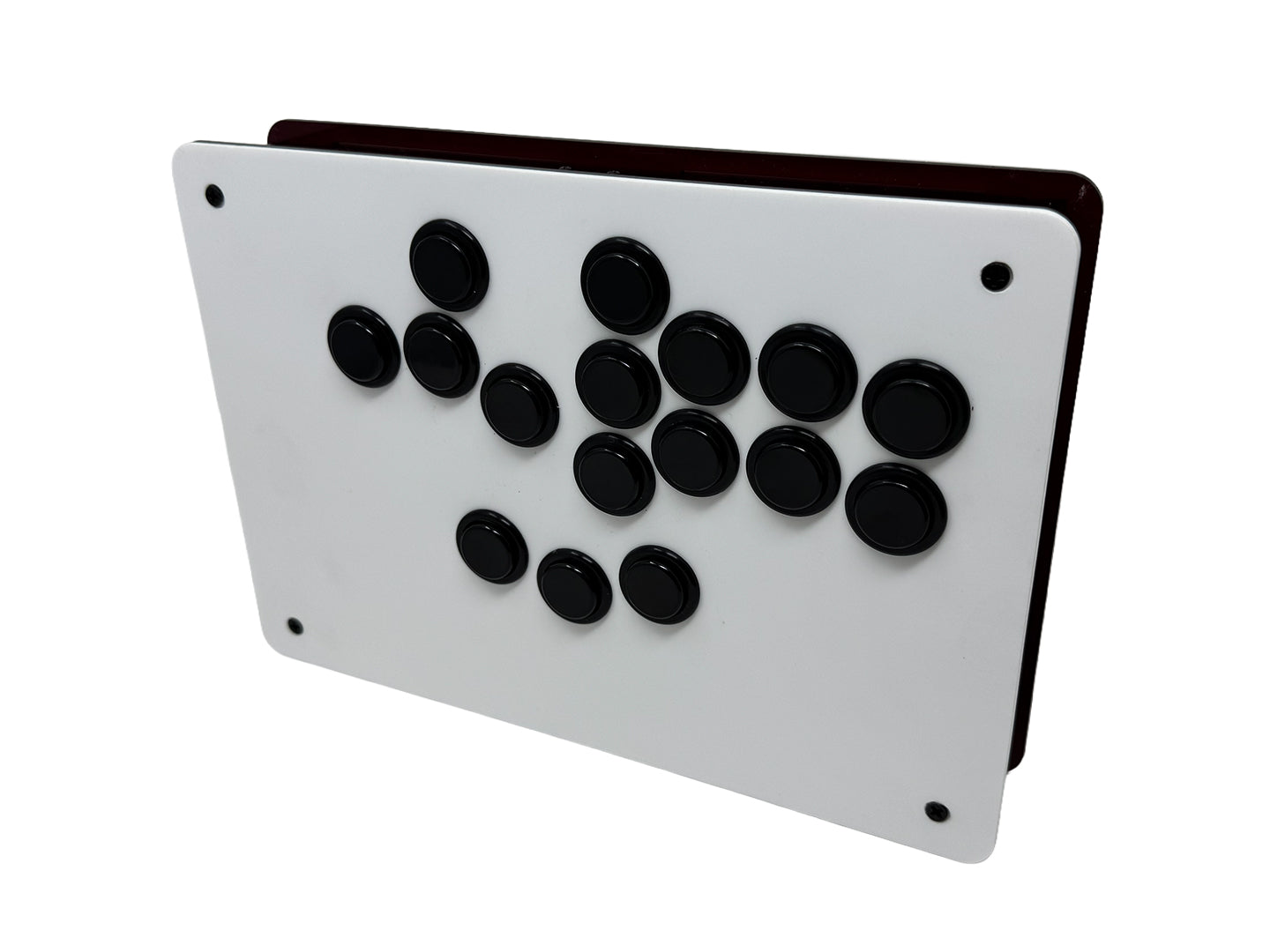

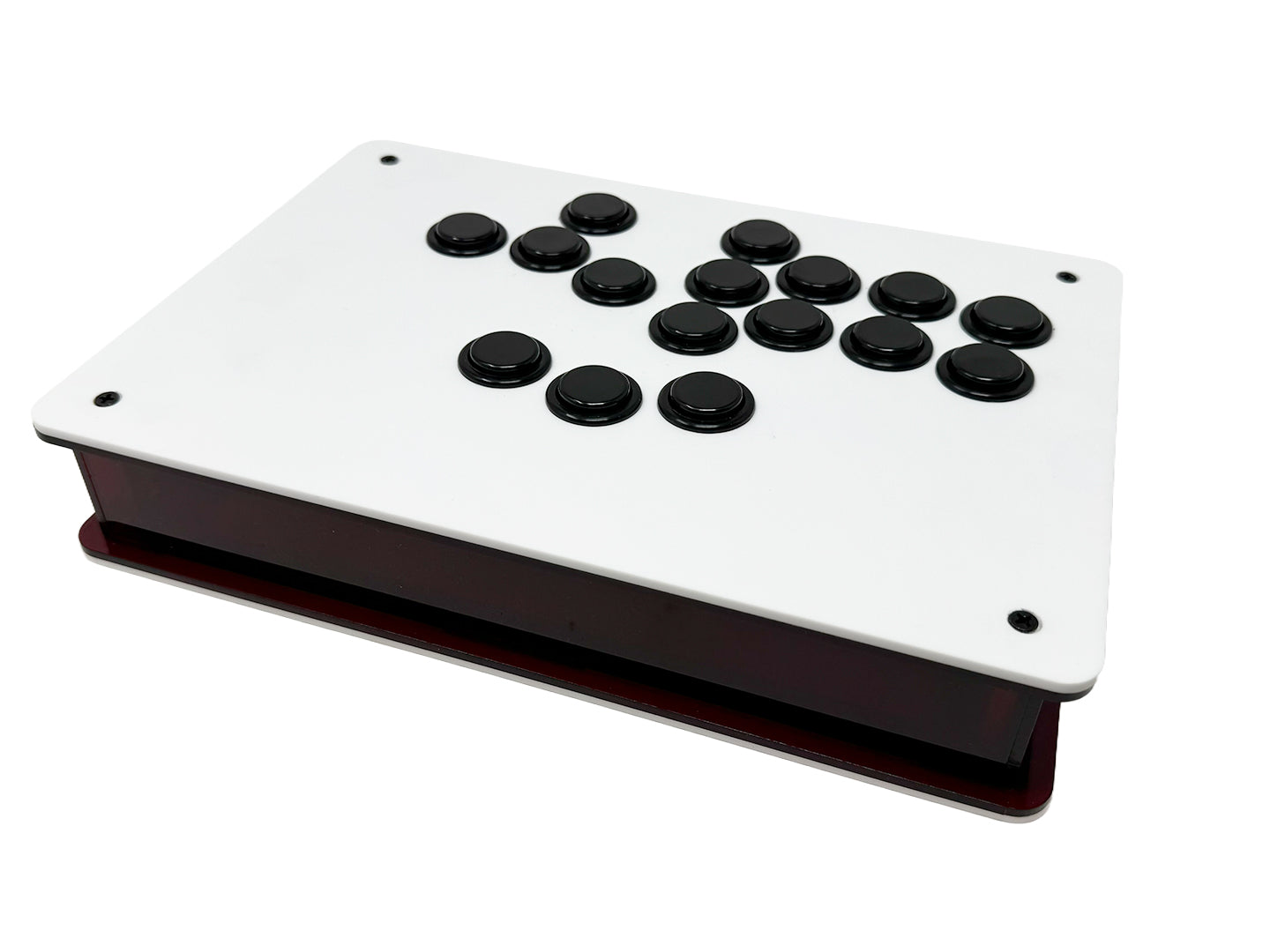

This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.
It’s like building a computer.
All the components are sold separately. Depending on how much you want to spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.
What is made out of?
The enclosure is made out of cast acrylic (plastic). But there is hardware and metal post to support the box
The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.
Is it easy to build?
Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.
Exterior Specs
Width - 10.75in~
Length - 7.75in~
Height
internal height 1.75 - 2.25in
internal height 1.5 - 2in
internal height 1 - 1.5in
add .118in for each spacer
Layers Stack on Top - 2
Layers Stack on the Side - 2
Acrylic is .118in thick (3mm) and is stacked.
Push buttons: 24mm and 30mm Fit's Snap-in and Screw-on buttons
Some tighter button layouts like the X-UP may not fit the Sanwa Screw-On
Joystick - We can fit any J or K Flat bracket joysticks. Full and Mid Collar K levers fit. We can fit IL joysticks on request.

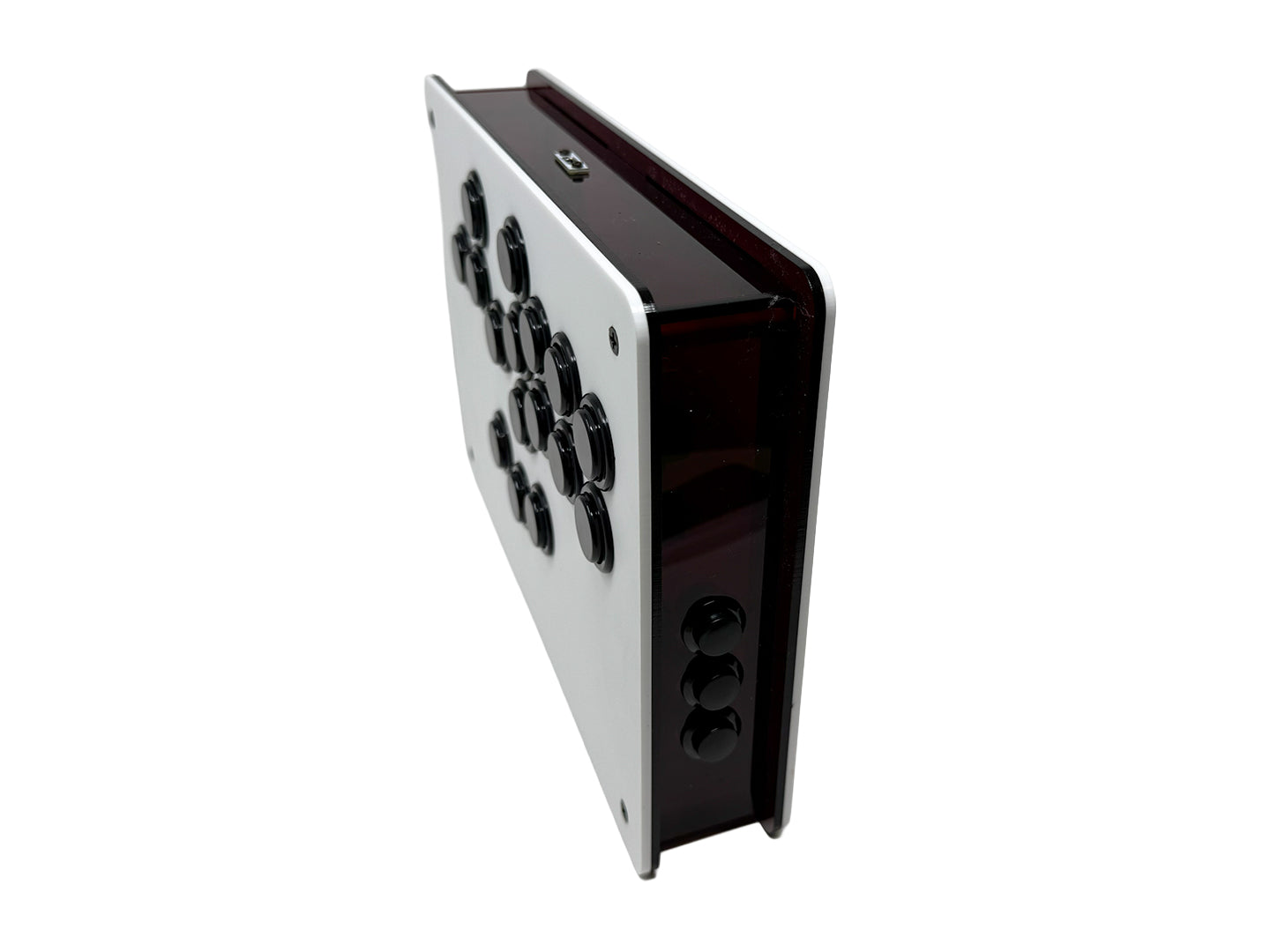

Side panel button or AUX buttons require 24mm - unless noted elsewhere
Checklist
Buttons
Joystick (if applicable)
Encoder - Example Brook, RP 2040ce
Wiring - Example Brook 20pin & R3/L3/TP and Hitbox Cable if applicable
Passthrough (the bridge connector for the encoder to the console in the form of a mounted jack) - Example Neutrik NA-USB, Adafruit USB C. USB C Breakout board
USB Cables - cables that lead to the console, and a cable to the encoder to passthrough

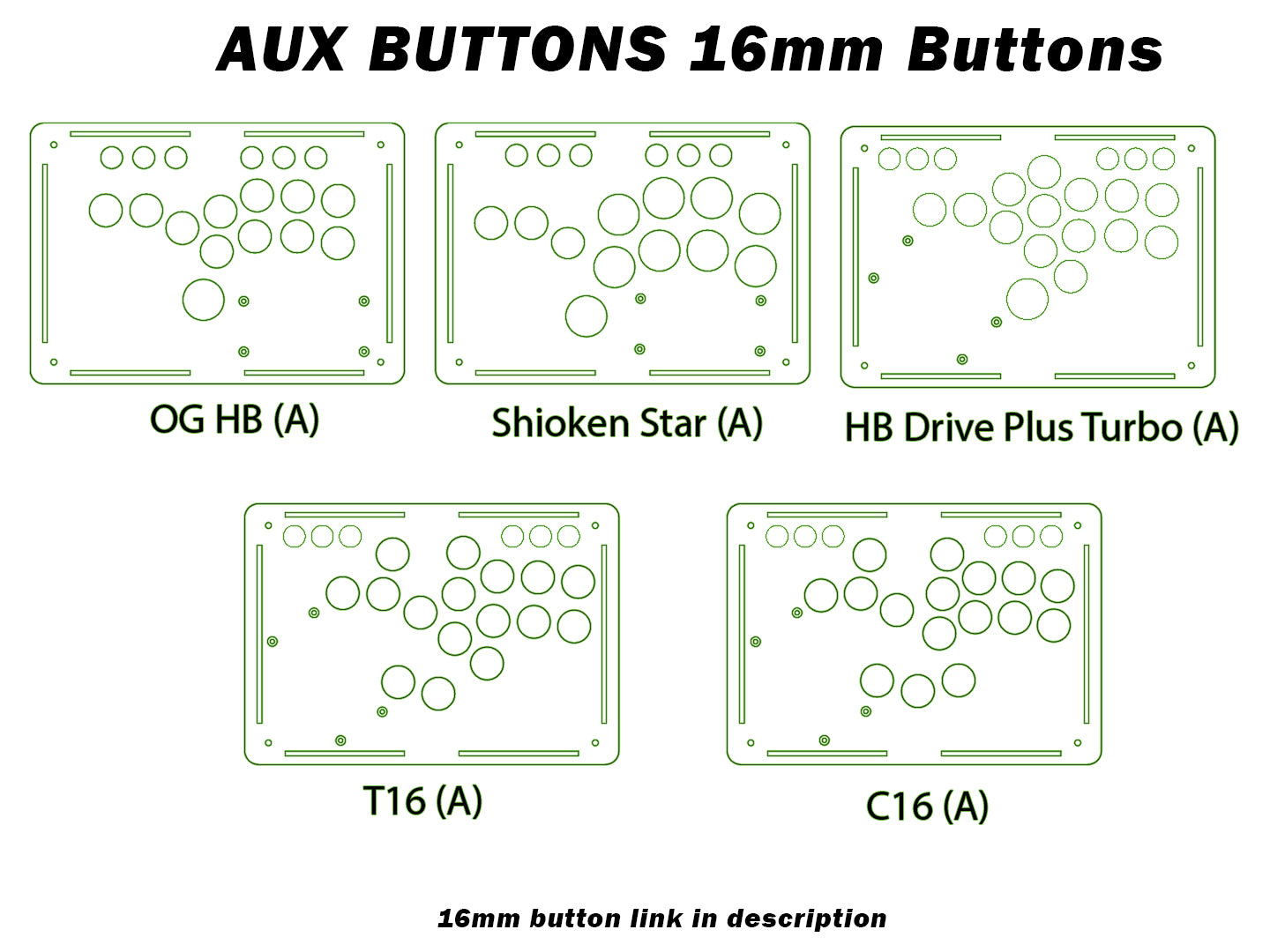

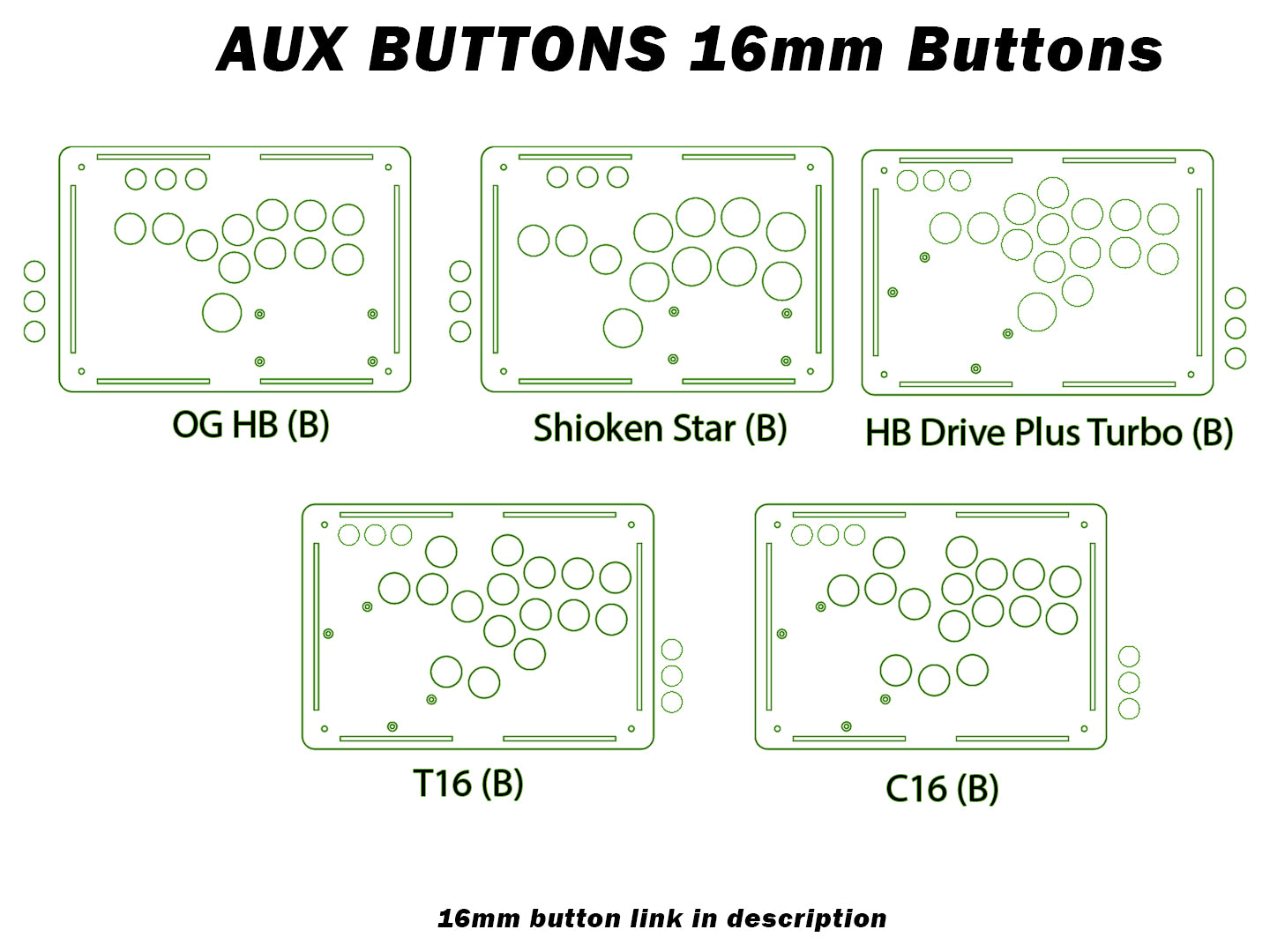

16mm Buttons for 1 inch enclosure
Magnet: How to
How do I open it from the bottom
-
Slightly press down and slide to the right about 1-2 inches. Then lift the panel off the enclosure from the opening (Recommended to do it on your lap)
-
At the shoulder strap anchors on top; firmly push or separate with medium strength by pulling the back panel away from the main body. (Recommended to do it on your lap).
How do I close
Recommended Shoulder Strap
Click Here - Or something similar with the same hook size - See product gallery on Amazon
OLED Screen Compatibility
Focus Attack .96 oled not compatible
