What is this?
This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.
It’s like building a computer.
All the components are sold separately. Depending on how much you want to spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.
What is made out of?
The enclosure is made out of cast acrylic (plastic).
The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.
Is it easy to build?
Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.
Why do I need this?
- DIY. Fun to build.
- Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
- Customizable
- Add art!
- Play arcade games.
Specs
Width - 15.25in
Length - 8in
Outer height - 2.25in - 2.5in
Weight - 3-4 lbs - nothing inside - can go up to 6lbs - with everything inside plus extra weight panels
Side Walls -2 Layer
Fightstick & Stickless - Top and bottom panels - 2 layers can be upgraded to 3
Keyboard Style - Top - 2 layers. Bottom Panels - 2 layers can be upgraded to 3
Magnet: How to

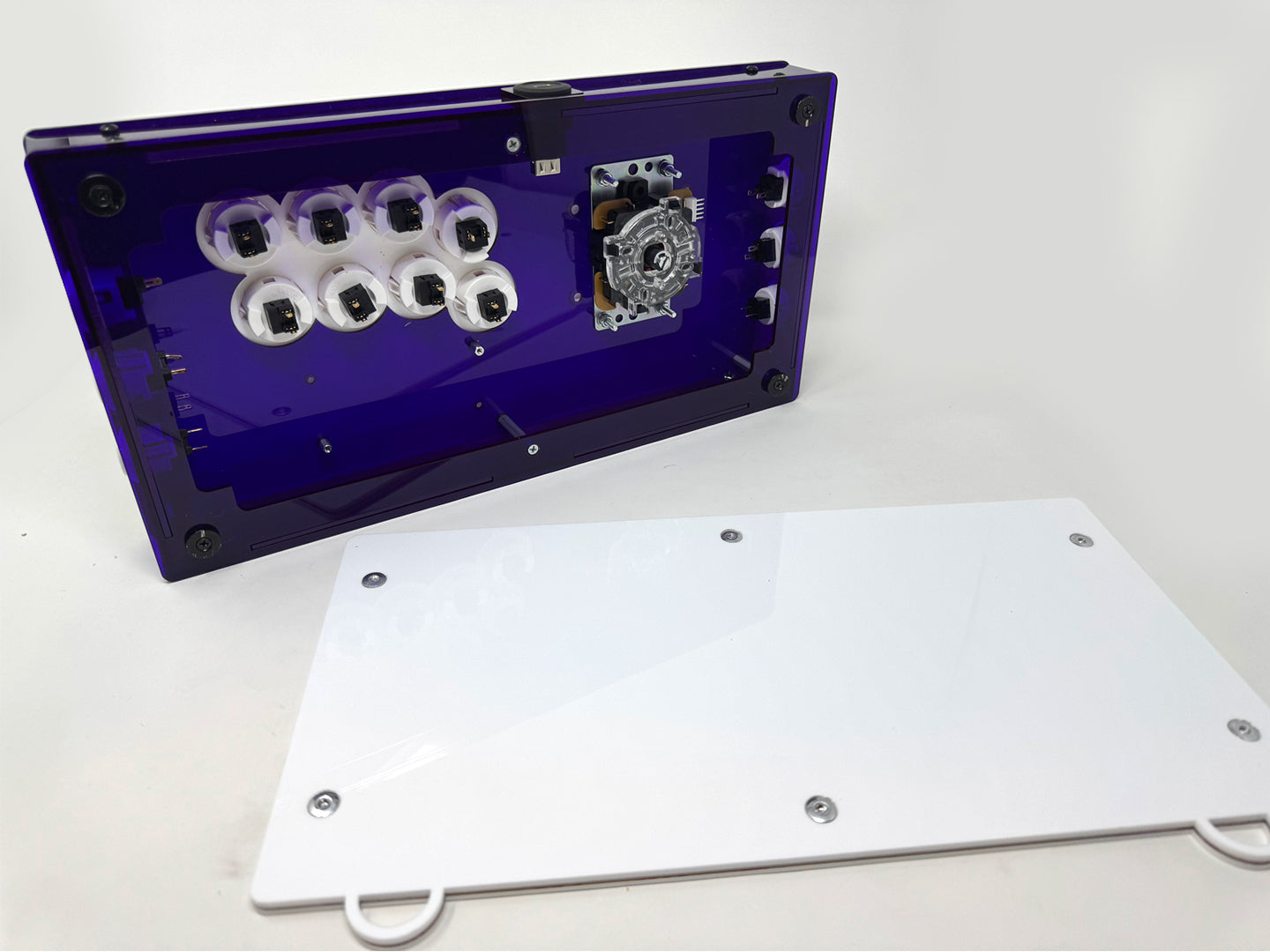

How do I open it from the bottom
- Slightly press down and slide to the right about 1-2 inches. Then lift the panel off the enclosure from the opening (Recommended to do it on your lap)
- At the shoulder strap anchors on top; firmly push or separate with medium strength by pulling the back panel away from the main body. (Recommended to do it on your lap)
How do I close
- Line up bottom panel to the main case and gently place down. The magnet will catch on to metal bottom plate. you can slide it left and right to line up with the body.
Recommended Shoulder Strap
Click Here - Or something similar with the same hook size - See product gallery on Amazon
Case options
What is Inner and outer color panels?
Here is an example click here
Do I need the extra top/bottom weighted panels?
Depends if you like it more heavy.
Pros:
- More weight
- Even more sturdy top to play on (Some case include 3 tops)
Cons:
- Adds height (bulkier) to the enclosure (could be a pro for some)
What is feet with flush mount?
The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)
Component Wiring and PCB Kits – (Fightsticks)
- Kits are available on our store that has all the inner components on one product listing. Can find it here. THE KIT DOES NOT COME WITH BUTTONS AND JOYSTICKS.
- For Buttons here
- For Joysticks here
Needs Joystick:
- In the options below please specify the joystick you are using.
- Enclosure will fit any flat bracket joystick you desire. Does not fit Industrias Lorenzo (euro) Stick
- What is Joystick mounting hole upgrade? Image Link
- For Seimitsu/Crown/Fanta joystick users please be sure to add the model number. Not all Seimitsu joysticks have the same mounting holes. Seimitsu joystick must be a flat bracket.
- Does your enclosure fit full collar K levers? Yes, please specify model number and brand below.
Needs main action buttons (fightstick)
- The main buttons fit 30mm buttons. Total 8.
- Screw-on and snap in are compatible
- Does not fit Euro/Happ style buttons
Needs AUX Buttons (side buttons)
- The AUX/UTILITY buttons fit 24mm buttons. Total 6.
- Screw-on and snap in are compatible
- Does not fit Euro/Happ style buttons
Needs Brook PCB (chip/brain)
- The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
- Enclosures fit any Brook Fighting Board PCB
- Any PCB that is not a Brook will need adhesive stands
- Mounting holes and hardware are included for free (can be upgraded).
Needs Passthrough
- Passthrough device is located on the front panel where you disconnect the wire from the case. It’s mounted on the enclosure
- Our cases can fit any of these 2 passthroughs
- USB C Adafruit
- Neutrik
Needs Wiring (fightstick)
How do I wire this together?
Here is a diagram. Click here
OLED Screen Compatibility
