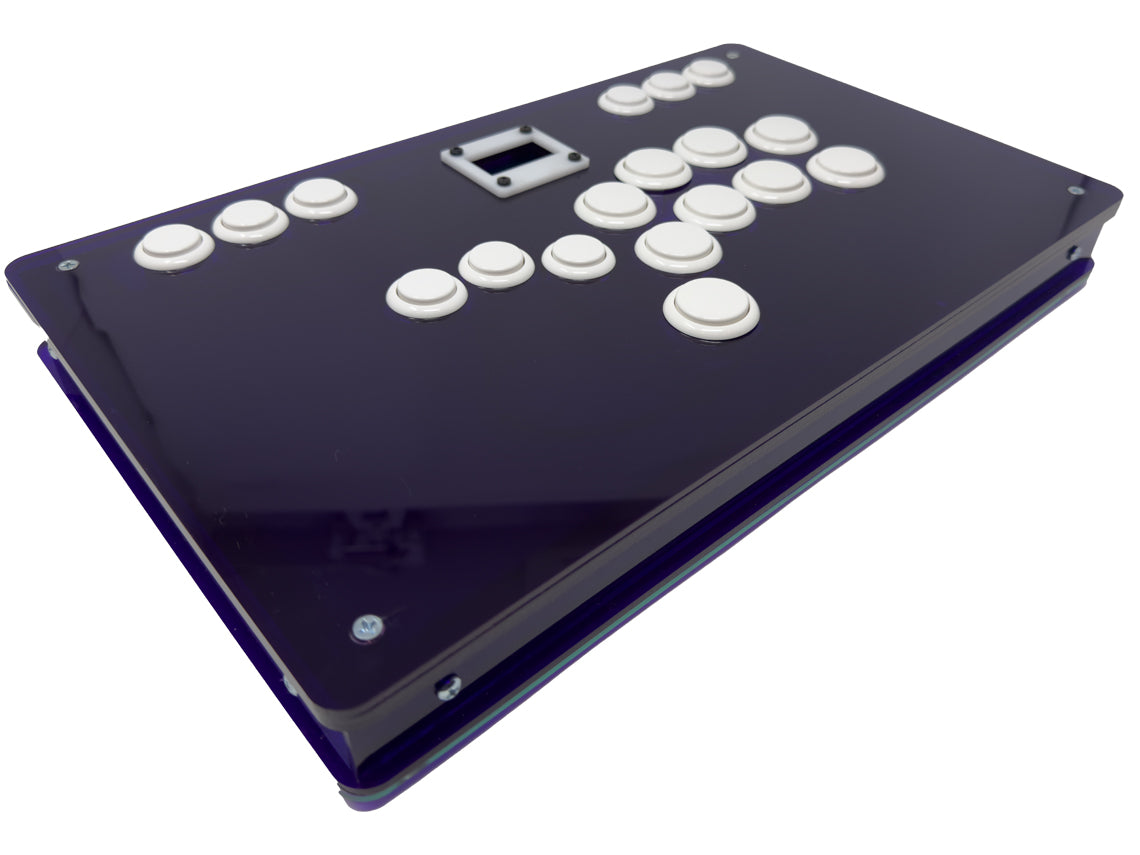

What is this?
This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.
What's a stickless controller?
A button layout that simulates a keyboard. So no joystick.
Why are there 6 buttons above the main layout?
It was design this way for easy access to fighting game training mode options.
It’s like building a computer.
All the components are sold separately. Depending on how much you want to spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.
What is made out of?
The enclosure is made out of cast acrylic (plastic).
The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.
Is it easy to build?
Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.
Why do I need this?
- DIY. Fun to build.
- Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
- Customizable
- Add art!
- Play arcade games.
Specs
Width -15in
length - 9in
height - 2in - 2.5in - Depending on Case height
Weight - Less then 6lbs with componets
Side Walls -2 Layer
Keyboard Style - Top - 3 layers. Bottom Panels - 2 layers can be upgraded to 3
Case options
- What is individual button style and trim button style?
- If I select trim style to match inner panels what does it look like?
- What is feet with flush mount?
- The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)
Magnet: How to

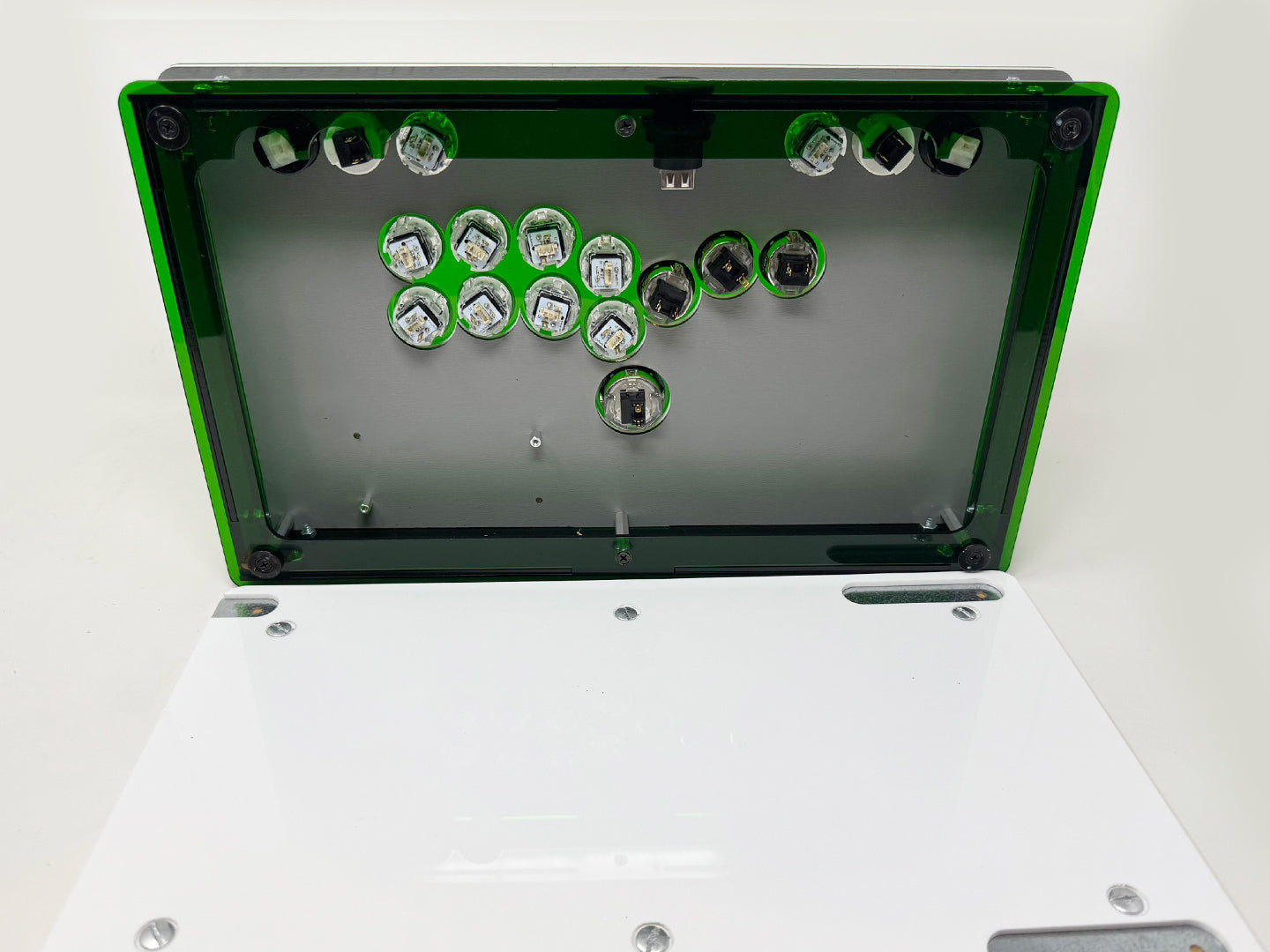

How do I open it from the bottom
- Slightly press down and slide to the right about 1-2 inches. Then lift the panel off the enclosure from the opening (Recommended to do it on your lap)
- At the shoulder strap anchors on top; firmly push or separate with medium strength by pulling the back panel away from the main body. (Recommended to do it on your lap).
How do I close
- Line up bottom panel to the main case and gently place down. The magnet will catch on to metal bottom plate. you can slide it left and right to line up with the body.
Recommended Shoulder Strap
Click Here - Or something similar with the same hook size - See product gallery on Amazon
Component Wiring and PCB Kits – (Stickless)
- Kits are available on our store that has all the inner components on one product listing. Can find it here. THE KIT DOES NOT COME WITH BUTTONS AND JOYSTICKS.
- For Buttons here
Needs main action buttons needed for fightstick
-
OG STICKLESS
-
11x 24mm buttons
-
1x 30mm buttons
-
Shioken Star
-
9x 30mm buttons
-
3x 24mm button
- Screw-on and snap in are compatible
- Does not fit Euro/Happ style buttons
Needs AUX Buttons (above main layout)
- The AUX/UTILITY buttons fit 24mm buttons. Total 6.
- Screw-on and snap in are compatible
- Does not fit Euro/Happ style buttons
Needs Brook PCB (chip/brain)
- The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
- Enclosures fit any Brook Fighting Board PCB.
- OLED SCREEN ONLY WORKS WITH BROOK RETRO ULTIMATE, BROOK GEN 5X and RP-2040CE supported boards
- Any PCB that is not a Brook will need adhesive stands
- Mounting holes and hardware are included for free. (can be upgraded)
- Compatible with RP2040-CE boards

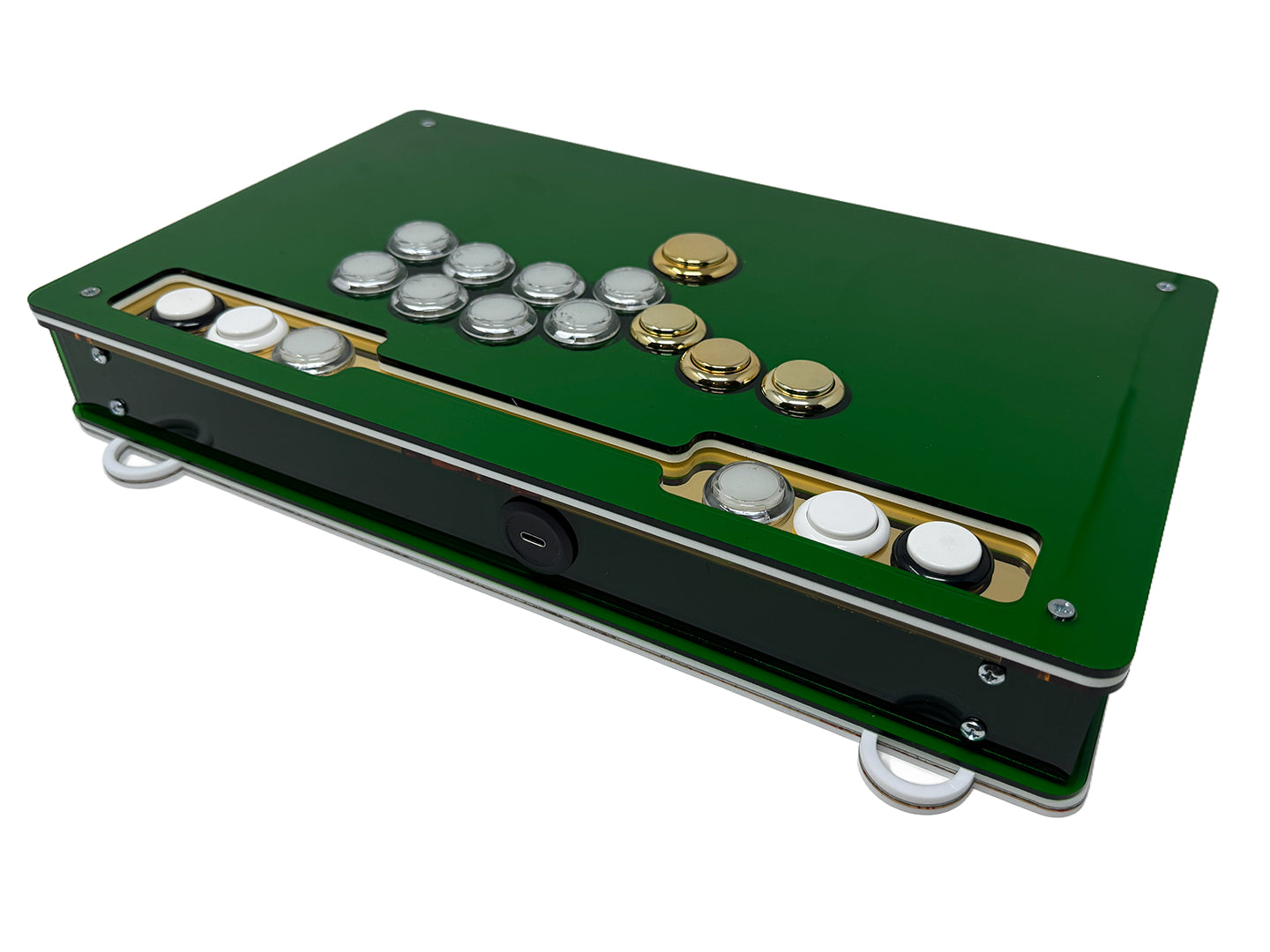

Needs Passthrough
- Passthrough device is located on the front panel where you disconnect the wire from the case. It’s mounted on the enclosure
- Our cases can fit any of these 2 passthroughs
- USB C Adafruit
- Neutrik
Needs Wiring (stickless)
-
20pin wire connector. Connects to the pcb --- which connects to the main action buttons, share, home, start and the joystick. Ground wire must be connected to each connector on the button (does not matter which prong).
-
L3/R3/TK wire connector. Connects to the analog stick buttons the touch key.
-
Short Printer cable. Connects to the PCB and Passthrough
-
Long (Printer or USB C to USB A) cable . Connects to Passthrough to console.
- Stickless Cable
How do I wire this together?
Here is a diagram. Click here
OLED Screen Compatibility
