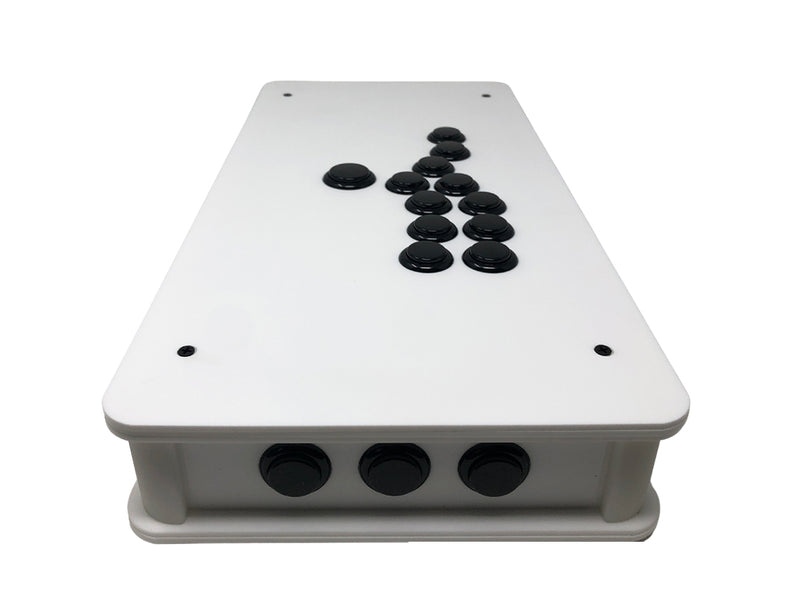

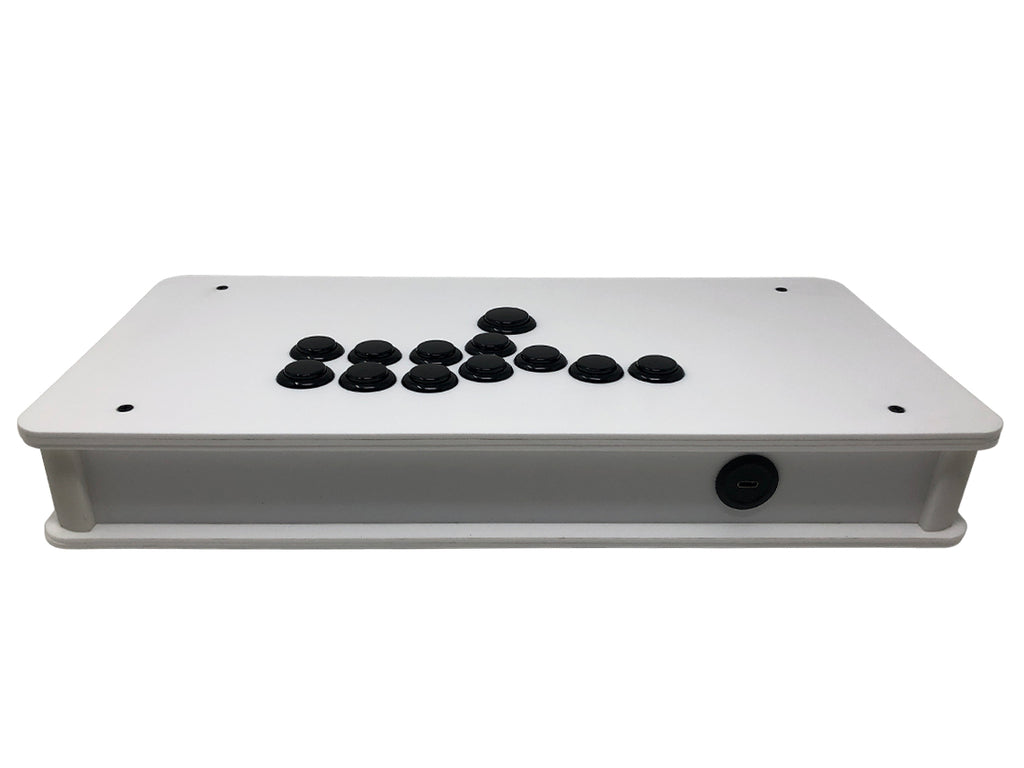

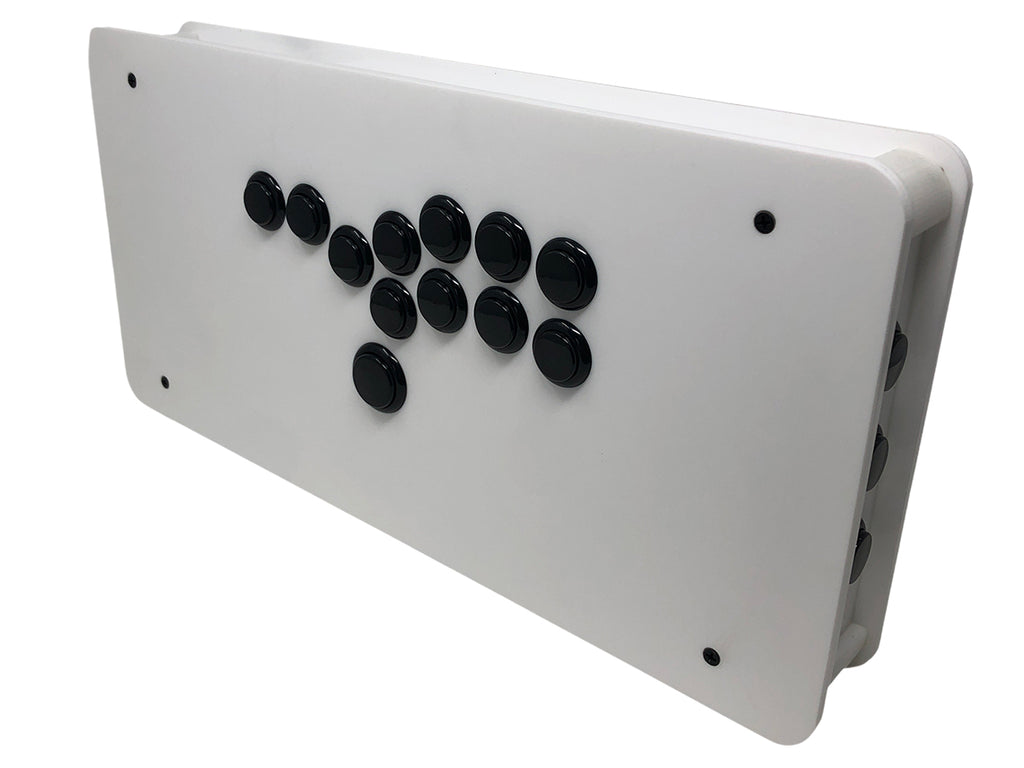

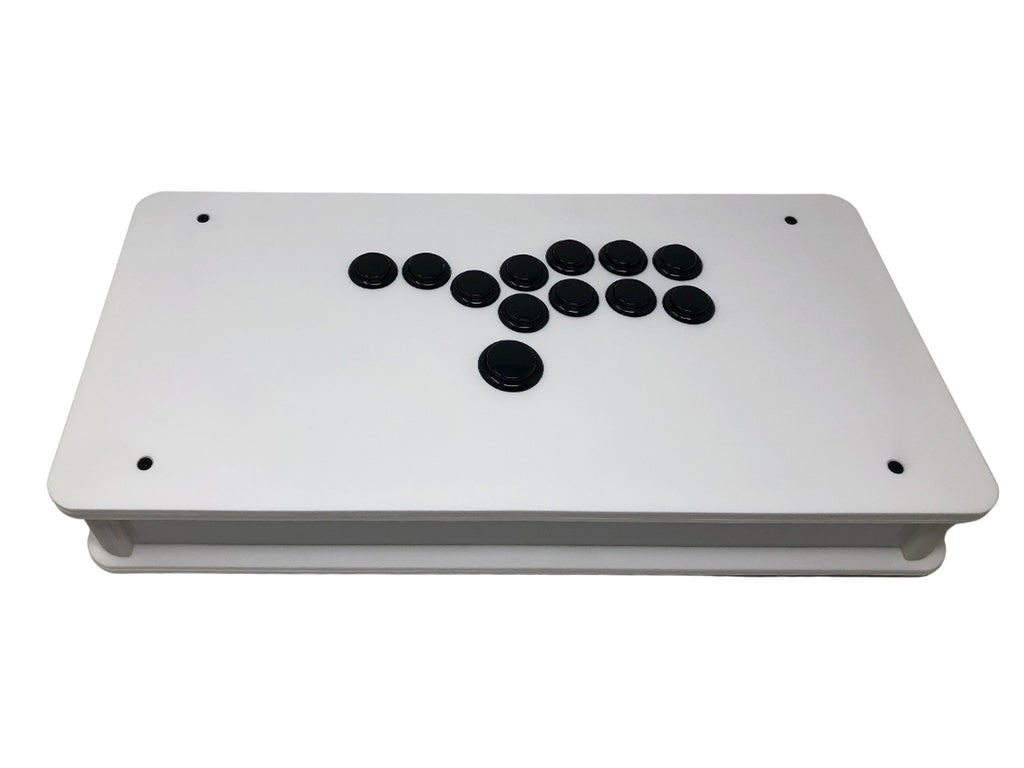

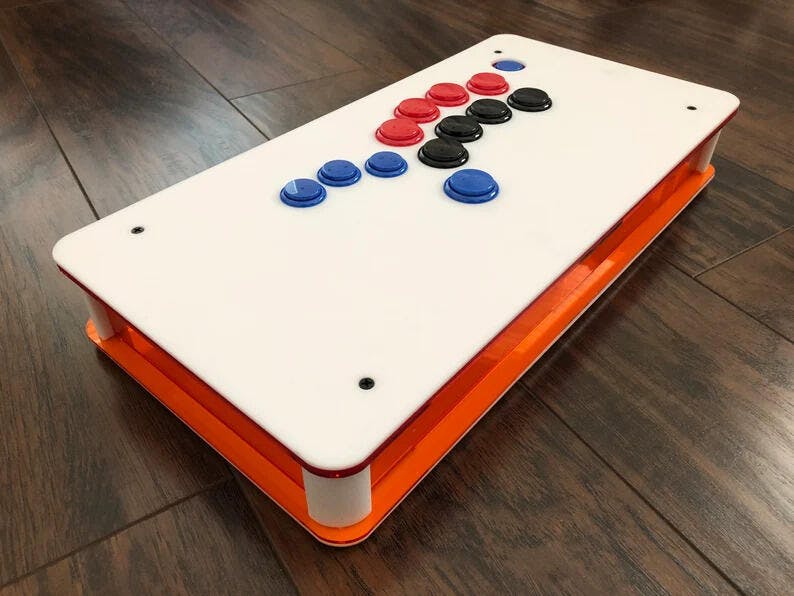

Envy Standard - Stickless Enclosure- Snap-On, Screw-on Compatible

What is this?

This is only an enclosure. No buttons, joystick, and PCB. Only the plastic panels and the items needed to build the box. All the components needed you will need to get separately, whether it’s on our website or elsewhere.

What's a stickless controller?

A button layout that simulates a keyboard. So no joystick.

It’s like building a computer.

All the components are sold separately. Depending on how much you want to  spend you can trick out your fightstick with the best components around, or just bare minimum to play arcade games.

What is made out of?

The enclosure is made out of cast acrylic (plastic).

The case is fragile. We do not recommend dropping it or throwing it against the wall. It can easily crack if you are careless with it.

Is it easy to build?

Yes. It's kind of like IKEA furniture. Manual included. No Glue needed.

Why do I need this?

• DIY. Fun to build.
• Start with an open canvas, there's no need to deal with low quality stock components and color buttons you don’t want.
• Customizable
• Add art!
• Play arcade games.

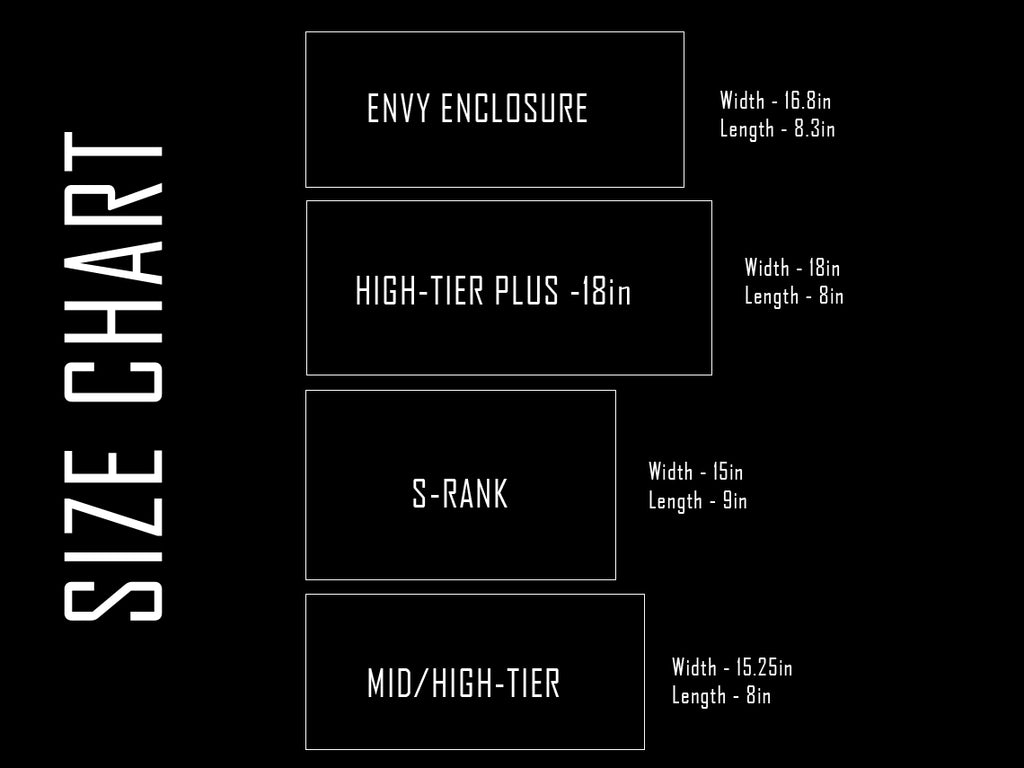

Specs

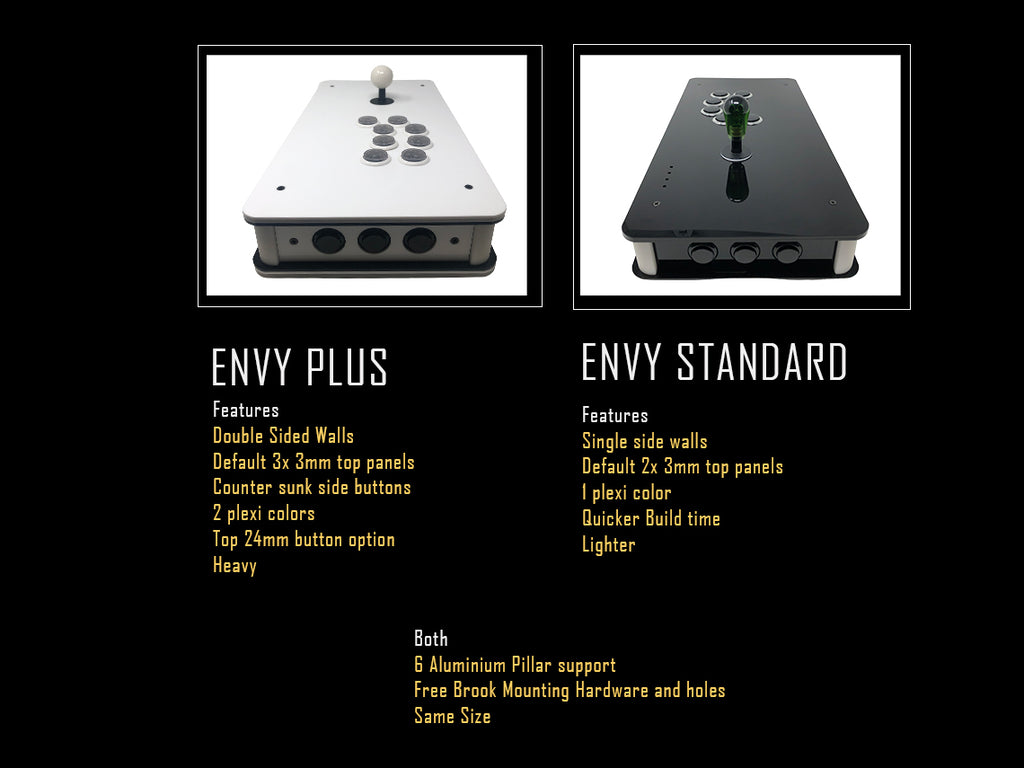

Case options

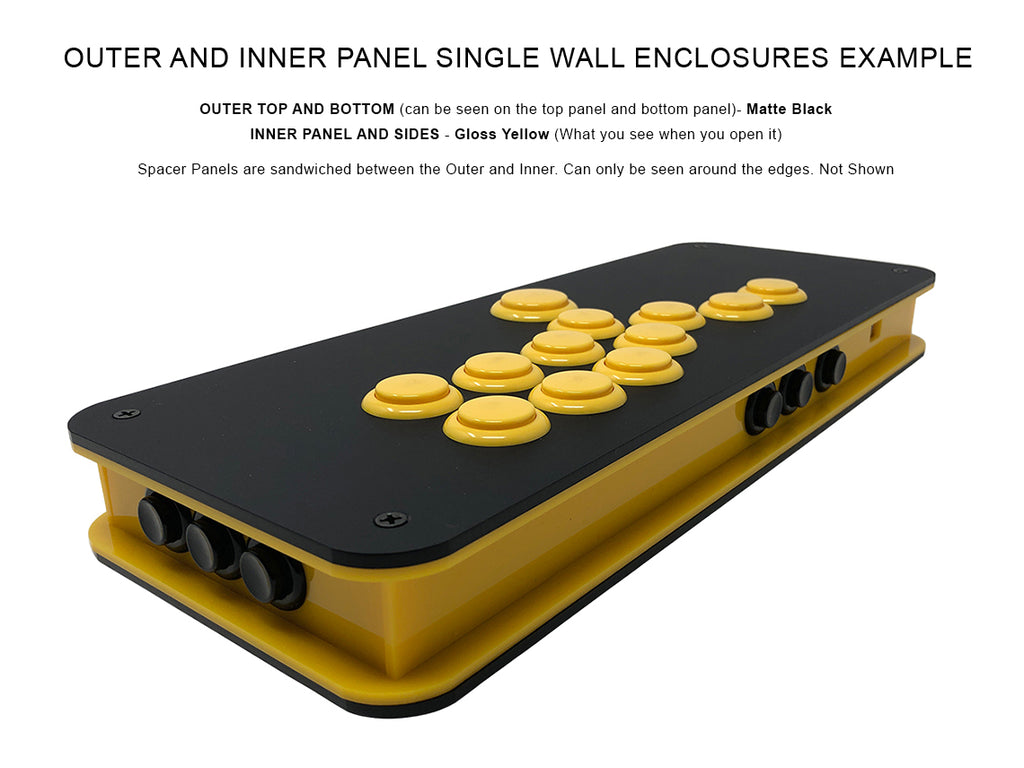

How does color panel combination work?

Here is an example click here

Do I need the extra top/bottom weighted panels?

Depends if you like it more heavy.

Pros:
More weight
Even more sturdy top to play on (Some case include 3 tops)

Cons:
Adds height to the enclosure (could be a pro for some)

What is feet with flush mount?

The bottom of the case will allow you to flush mount the bottom or install rubber feet (hardware included)

Component Wiring and PCB Kits – (Stickless)

• Kits are available on our store that has all the inner components on one product listing.  Can find it here. THE KIT DOES NOT COME WITH BUTTONS AND JOYSTICKS.
• For Buttons here

Needs main action buttons needed for Stickless

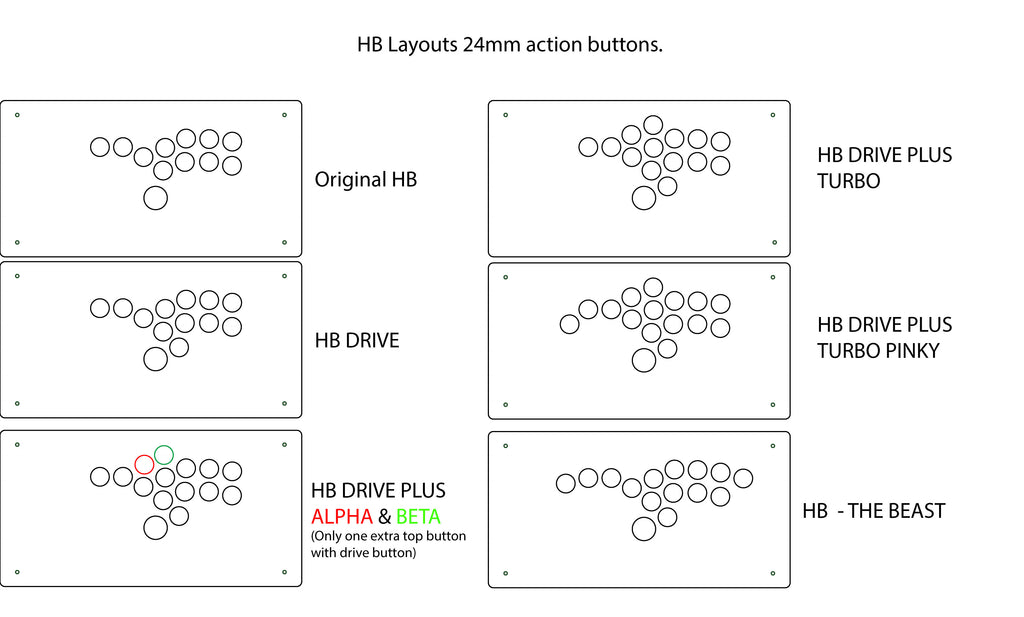

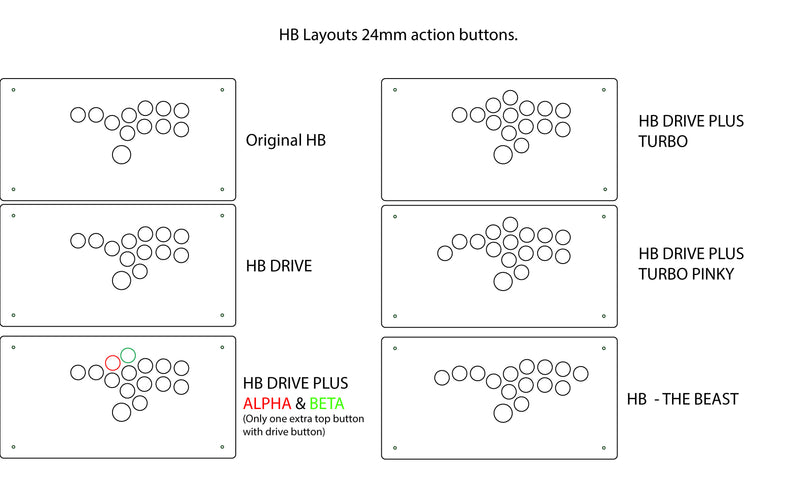

• OG STICKLESS
  1. 11x 24mm buttons
  2. 1x 30mm buttons

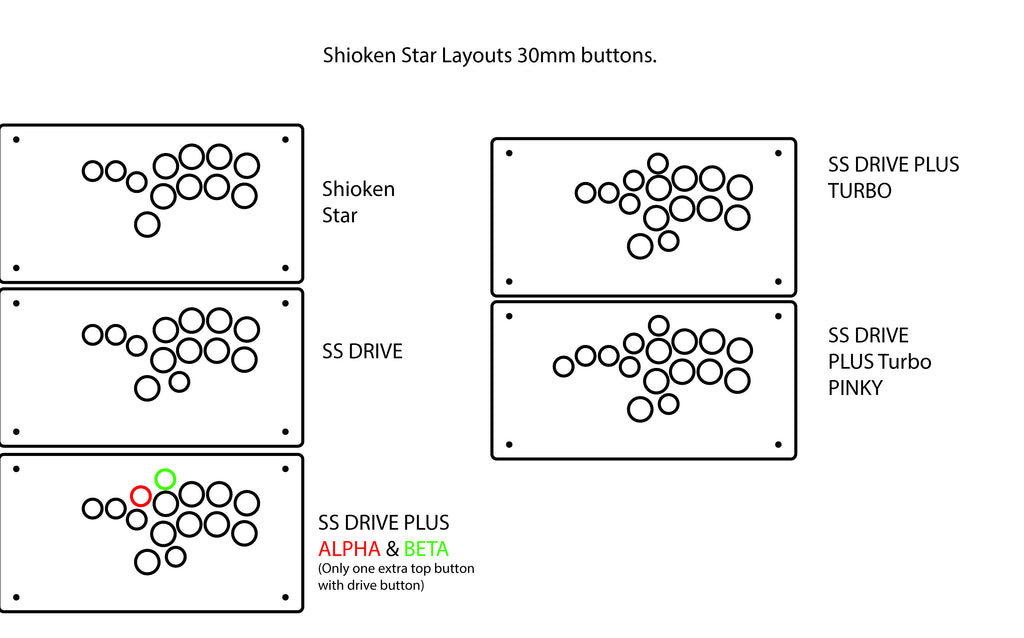

• Shioken Star
  1. 9x 30mm buttons
  2. 3x 24mm button
• Screw-on and snap in are compatible
• Does not fit Euro/Happ style buttons

Needs AUX Buttons (side buttons)

• The AUX/UTILITY buttons fit 24mm buttons. Total 6.
• Screw-on and snap in are compatible
• Does not fit Euro/Happ style buttons

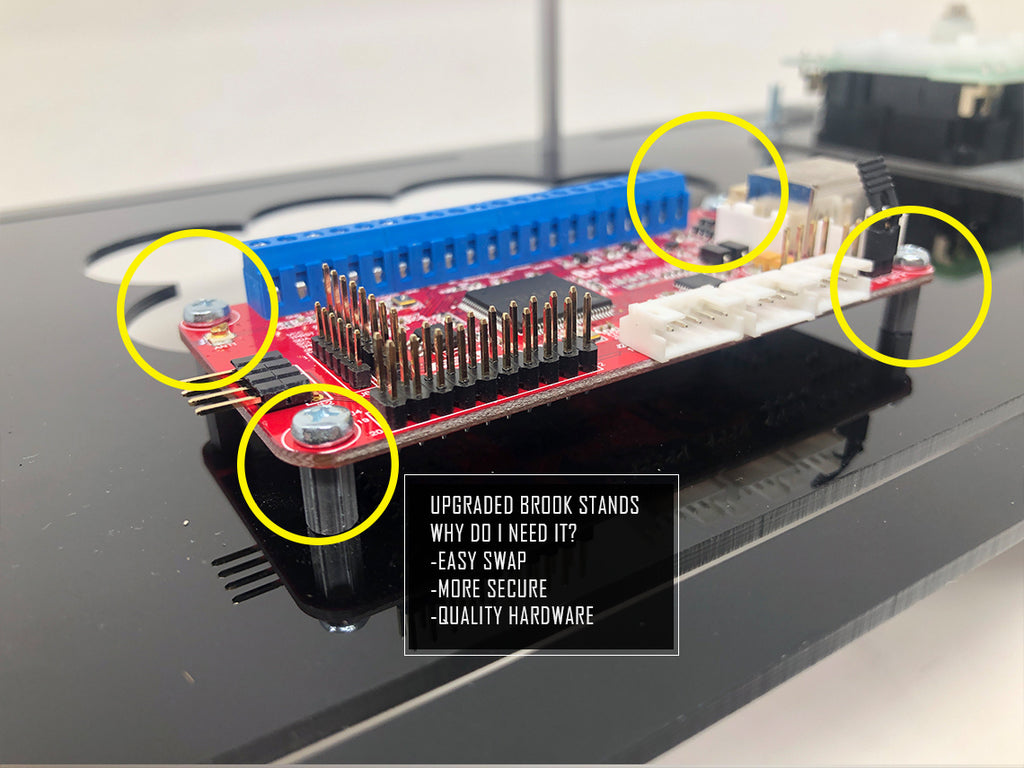

Needs Brook PCB (chip/brain)

• The PCB is where all the buttons and the joystick are connected to. Which then outputs to a console(s) of your choice by USB connection.
• Enclosures fit any Brook Fighting Board PCB
• Any PCB that is not a Brook will need adhesive stands
• Mounting holes and hardware are included for free. (can be upgraded)


Needs: Passthrough

• Passthrough device is located on the front panel where you disconnect the wire from the case. It’s mounted on the enclosure
• Our cases can fit any of these 2 passthroughs
  1. USB C Adafruit
  2. Neutrik

Needs Wiring (stickless)

• 20pin wire connector. Connects to the pcb --- which connects to the main action buttons, share, home, start and the joystick. Ground wire must be connected to each connector on the button (does not matter which prong).
• L3/R3/TK wire connector. Connects to the analog stick buttons the touch key.
• Short Printer cable. Connects to the PCB and Passthrough
• Long (Printer or USB C to USB A) cable . Connects to Passthrough to console.
• Stickless Cable

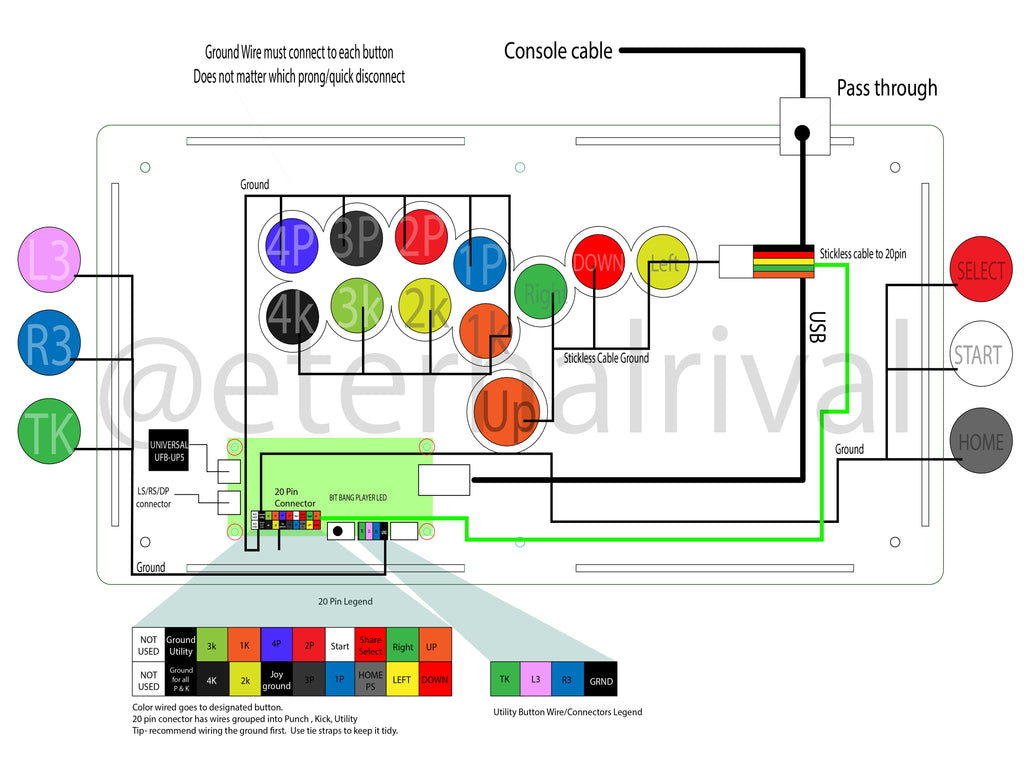

How do I wire this together?

Here is a diagram. Click here

Optional Add-On

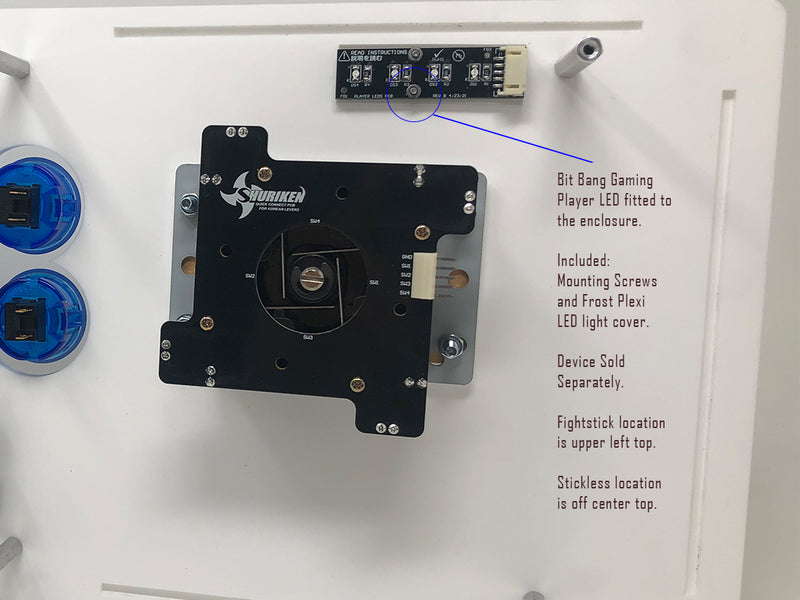

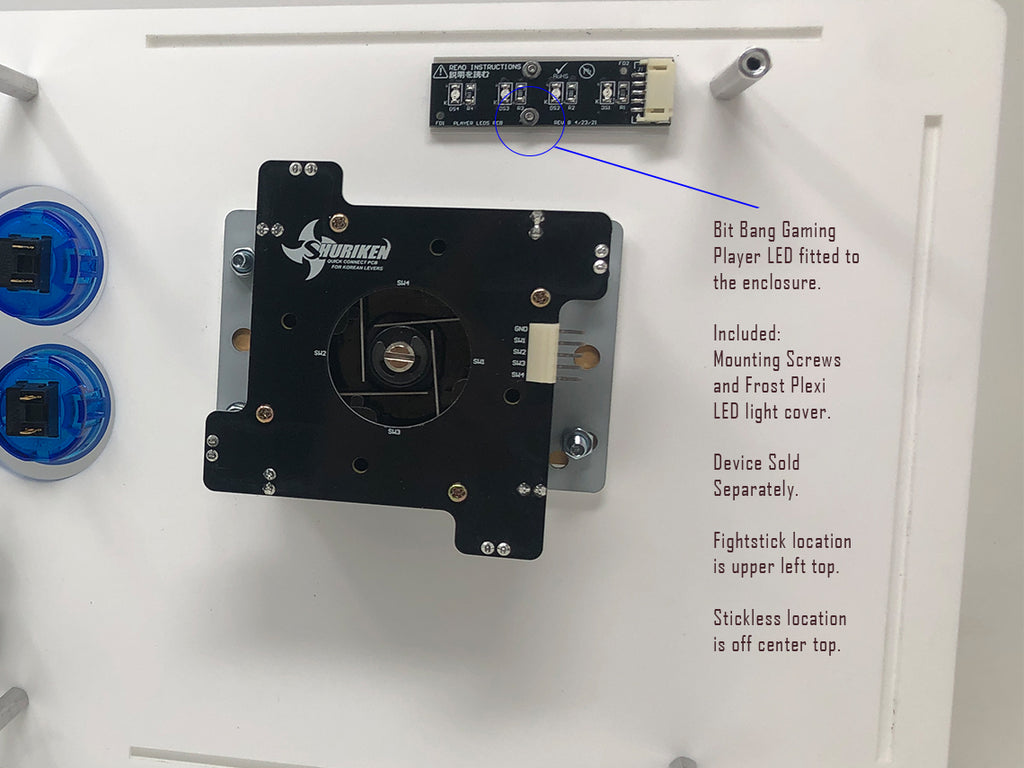

• Bit Bang Player Led
• Neoprene Pad for lap play
• Steel Weights - add weight without the bulk
